Product Overview

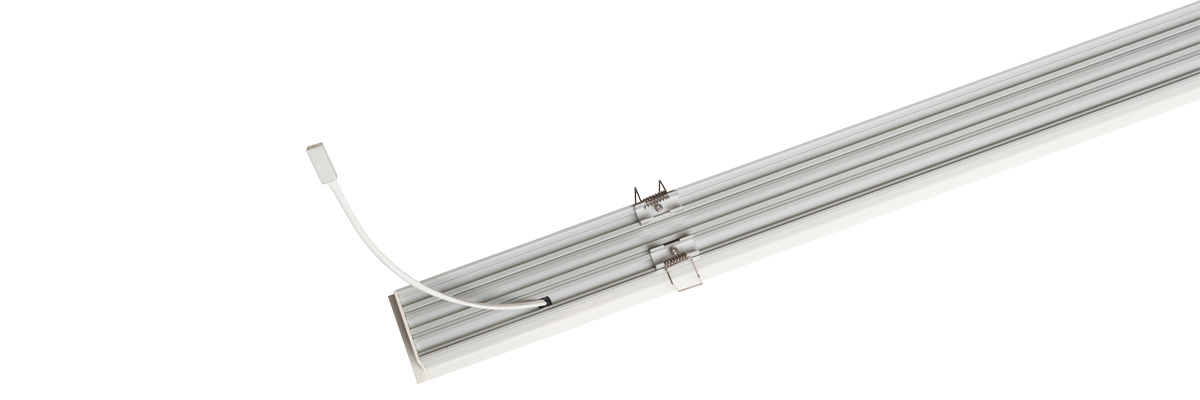

The Annam is a recessed with 7mm trim continuous linear luminaire which can be supplied in any length required. To do so the product can be supplied with either Tridonic LED Boards (280mm increments) or Tridonic LED Tape (50mm increments) with both options having remote drivers.
The Annam is available in a maximum single run length of 2500mm before multiple modules are used to create longer lengths.
More than 50,000 hours life span
Colour consistency with <3 SDCM
Custom lengths available
5 Year Warranty
Options
| Type | Options | Code |
|---|---|---|
| Module | Standalone Start Middle End Corner Cross |
ANN/50/0 ANN/50/1 ANN/50/2 ANN/50/3 ANN/50/4 ANN/50/5 |
Lengths
| Standalone | Code | Start | Code | Middle | Code | End | Code |
|---|---|---|---|---|---|---|---|
| 578mm (1630lm) | 0/578/1630 | 569mm (1630lm) | 1/569/1630 | 560mm (1630lm) | 2/560/1630 | 569mm (1630lm) | 3/569/1630 |
| 648mm (1840lm) | 0/648/1840 | 639mm (1840lm) | 1/639/1840 | 630mm (1840lm) | 2/630/1840 | 639mm (1840lm) | 3/639/1840 |
| 718mm (2060lm) | 0/718/2060 | 709mm (2060lm) | 1/709/2060 | 700mm (2060lm) | 2/700/2060 | 709mm (2060lm) | 3/709/2060 |
| 788mm (2270lm) | 0/788/2270 | 779mm (2270lm) | 1/779/2270 | 770mm (2270lm) | 2/770/2270 | 779mm (2270lm) | 3/779/2270 |
| 858mm (2490lm) | 0/858/2490 | 849mm (2490lm) | 1/849/2490 | 840mm (2490lm) | 2/840/2490 | 849mm (2490lm) | 3/849/2490 |
| 928mm (2700lm) | 0/928/2700 | 919mm (2700lm) | 1/919/2700 | 910mm (2700lm) | 2/910/2700 | 919mm (2700lm) | 3/919/2700 |
| 998mm (2920lm) | 0/998/2920 | 989mm (2920lm) | 1/989/2920 | 980mm (2920lm) | 2/980/2920 | 989mm (2920lm) | 3/989/2920 |
| 1068mm (3130lm) | 0/1068/3130 | 1059mm (3130lm) | 1/1059/3130 | 1050mm (3130lm) | 2/1050/3130 | 1059mm (3130lm) | 3/1059/3130 |
| 1138mm (3250lm) | 0/1138/3250 | 1129mm (3250lm) | 1/1129/3250 | 1120mm (3250lm) | 2/1120/3250 | 1129mm (3250lm) | 3/1129/3250 |
| 1208mm (3470lm) | 0/1208/3470 | 1199mm (3470lm) | 1/1199/3470 | 1190mm (3470lm) | 2/1190/3470 | 1199mm (3470lm) | 3/1199/3470 |
| 1278mm (3680lm) | 0/1278/3680 | 1269mm (3680lm) | 1/1269/3680 | 1260mm (3680lm) | 2/1260/3680 | 1269mm (3680lm) | 3/1269/3680 |
| 1348mm (3900lm) | 0/1348/3900 | 1339mm (3900lm) | 1/1339/3900 | 1330mm (3900lm) | 2/1330/3900 | 1339mm (3900lm) | 3/1339/3900 |
| 1418mm (4110lm) | 0/1418/4110 | 1409mm (4110lm) | 1/1409/4110 | 1400mm (4110lm) | 2/1400/4110 | 1409mm (4110lm) | 3/1409/4110 |
| 1488mm (4330lm) | 0/1488/4330 | 1479mm (4330lm) | 1/1479/4330 | 1470mm (4330lm) | 2/1470/4330 | 1479mm (4330lm) | 3/1479/4330 |
| 1558mm (4540lm) | 0/1558/4540 | 1549mm (4540lm) | 1/1549/4540 | 1540mm (4540m) | 2/1540/4540 | 1540mm (4540lm) | 3/1540/4540 |
| 1628mm (4760lm) | 0/1628/4760 | 1619mm (4760lm) | 1/1619/4760 | 1610mm (4760lm) | 2/1610/4760 | 1619mm (4760lm) | 3/1610/4760 |
| 1698mm (4880lm) | 0/1698/4880 | 1689mm (4880lm) | 1/1689/4880 | 1680mm (4880lm) | 2/1680/4880 | 1689mm (4880lm) | 3/1689/4880 |
| 1768mm (5090lm) | 0/1768/5090 | 1759mm (5090lm) | 1/1759/5090 | 1750mm (5090lm) | 2/1750/5090 | 1759mm (5090lm) | 3/1759/5090 |
| 1838mm (5310lm) | 0/1838/5310 | 1829mm (5310lm) | 1/1829/5310 | 1820mm (5310lm) | 2/1820/5310 | 1829mm (5310lm) | 3/1829/5310 |
| 1908mm (5520lm) | 0/1908/5520 | 1899mm (5520lm) | 1/1899/5520 | 1890mm (5520lm) | 2/1890/5520 | 1899mm (5520lm) | 3/1899/5520 |
| 1978mm (5740lm) | 0/1978/5740 | 1969mm (5740lm) | 1/1969/5740 | 1960mm (5740lm) | 2/1960/5740 | 1969mm (5740lm) | 3/1969/5740 |
| 2048mm (5950lm) | 0/2048/5950 | 2039mm (5950lm) | 1/2039/5950 | 2030mm (5950lm) | 2/2030/5950 | 2039mm (5950lm) | 3/2039/5950 |
| 2118mm (6170lm) | 0/2118/6170 | 2109mm (6170lm) | 1/2109/6170 | 2100mm (6170lm) | 2/2100/6170 | 2109mm (6170lm) | 3/2109/6170 |
| 2188mm (6380lm) | 0/2188/6380 | 2179mm (6380lm) | 1/2179/6380 | 2170mm (6380lm) | 2/2170/6380 | 2179mm (6380lm) | 3/2179/6380 |
| 2258mm (6500lm) | 0/2258/6500 | 2249mm (6500lm) | 1/2249/6500 | 2240mm (6500lm) | 2/2240/6500 | 2249mm (6500lm) | 3/2249/6500 |
Extras
| Type | Options | Code |
|---|---|---|
| Colour Temperature | 3000K 4000K 6500K |
/3K /4K /6K |
| Dimming | DALI Dimming | -DA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test |
-E1 -E2 -E3 |
90° Beam Angle
Standard Performance
| Lumen Ouput | Wattage | ll/cW |
|---|---|---|
| 578mm (1630lm) | 14.7 W/m | 110.8 ll/cW |
| 648mm (1840lm) | 16.6 W/m | 110.8 ll/cW |
| 718mm (2060lm) | 18.4 W/m | 111.9 ll/cW |
| 788mm (2270lm) | 20.3 W/m | 111.8 ll/cW |
| 858mm (2490lm) | 22.1 W/m | 112.6 ll/cW |
| 928mm (2700lm) | 24.0 W/m | 112.5 ll/cW |
| 998mm (2920lm) | 25.8 W/m | 113.1 ll/cW |
| 1068mm (3130lm) | 27.7 W/m | 112.9 ll/cW |
| 1138mm (3250lm) | 29.4 W/m | 110.5 ll/cW |
| 1208mm (3470lm) | 31.3 W/m | 110.8 ll/cW |
| 1278mm (3680lm) | 33.1 W/m | 111.1 ll/cW |
| 1348mm (3900lm) | 35.0 W/m | 111.4 ll/cW |
| 1418mm (4110lm) | 36.8 W/m | 111.6 ll/cW |
| 1488mm (4330lm) | 38.7 W/m | 111.8 ll/cW |
| 1588mm (4540lm) | 40.5 W/m | 112.0 ll/cW |
| 1628mm (4760lm) | 42.4 W/m | 112.2 ll/cW |
| 1698mm (4880lm) | 44.1 W/m | 110.6 ll/cW |
| 1768mm (5090lm) | 46.0 W/m | 110.6 ll/cW |
| 1838mm (5310lm) | 47.8 W/m | 111.0 ll/cW |
| 1908mm (5520lm) | 49.7 W/m | 111.0 ll/cW |
| 1978mm (5740lm) | 51.5 W/m | 111.4 ll/cW |
| 2048mm (5950lm) | 53.4 W/m | 111.4 ll/cW |
| 2118mm (6170lm) | 55.2 W/m | 111.7 ll/cW |
| 2188mm (6380lm) | 57.1 W/m | 111.7 ll/cW |
| 2258mm (6500lm) | 58.8 W/m | 110.5 ll/cW |
Emergency Performance
| Lumen Ouput | BLF | Emergency Lumon Output |
|---|---|---|
| 578mm (1630lm) | 21% | 342 lm |
| 648mm (1840lm) | 20% | 326 lm |
| 718mm (2060lm) | 16% | 329 lm |
| 788mm (2270lm) | 15% | 340 lm |
| 858mm (2490lm) | 14% | 348 lm |
| 928mm (2700lm) | 12% | 324 lm |
| 998mm (2920lm) | 11% | 321 lm |
| 1068mm (3130lm) | 11% | 344 lm |
| 1138mm (3250lm) | 10% | 325 lm |
| 1208mm (3470lm) | 9% | 312 lm |
| 1278mm (3680lm) | 9% | 331 lm |
| 1348mm (3900lm) | 8% | 312 lm |
| 1418mm (4110lm) | 8% | 328 lm |
| 1488mm (4330lm) | 8% | 346 lm |
| 1588mm (4540lm) | 7% | 317 lm |
| 1628mm (4760lm) | 7% | 333 lm |
| 1698mm (4880lm) | 7% | 341 lm |
| 1768mm (5090lm) | 6% | 305 lm |
| 1838mm (5310lm) | 6% | 318 lm |
| 1908mm (5520lm) | 6% | 331 lm |
| 1978mm (5740lm) | 6% | 344 lm |
| 2048mm (5950lm) | 6% | 357 lm |
| 2118mm (6170lm) | 5% | 308 lm |
| 2188mm (6380lm) | 5% | 319 lm |
| 2258mm (6500lm) | 5% | 325 lm |
Standard Specification
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 202 – 250 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <10% |
| Overvoltage Protection | 320 V |
| THD | <20% |
| Dimming Range | 1 – 100% |
| Operating Temperature | -25… +60 °C |
| Longevity | 50,000 hours |
| Typical UGR Rating | <19 |
| Colour Rendering | Ra>82 |
| Section Dimensions | 64 x 50mm |
| Weight | 3.5kg/m |
| Warranty | 5 Years |
| Certification | CE, ROHS |
Emergency Specification
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
