Ant

Product Overview

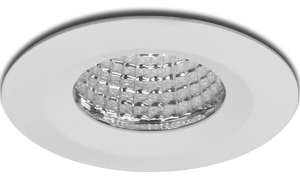

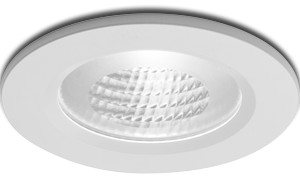

The Ant is the smallest downlight in the range with just a Ø80mm bezel and 73mm depth. The elongated heatsink however allows the Ant to have a lumen package of upto 1040 lumens allowing the downlight to use minimal ceiling space whilst providing the same light output as a larger downlight. The Ant uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

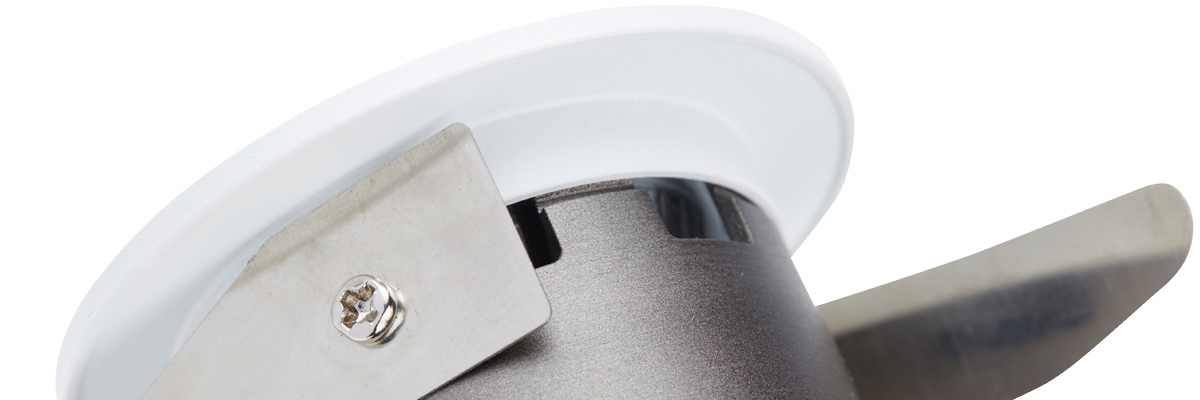

The Ant uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

The Ant is available in 840 & 1040 lumen outputs.

Clock Icon

More than 50,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen Output840lm
1040lm

ANT/840
ANT/1040

Colour Temperature3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle36° Beam
60° Beam
/36
/60

Extras

Type Options Code
Body Adjustable Tilt -ADJ
Dimming DALI Dimming -DA
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity.
36° Beam Angle
36° Beam Angle
60° Beam Angle

Performance

Lumen Output Wattage ll/cW
776 lm 8.0 W 97.0 ll/cW
958 lm 10.1 W 94.9 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 0.7 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
UGR <16
Cutout Ø90mm
Dimensions Ø103 x 58mm
Weight 1.8kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen OutputBLFEmergency Lumen Output
776 lm29%225 lm
958 lm24%230 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
