Product Overview

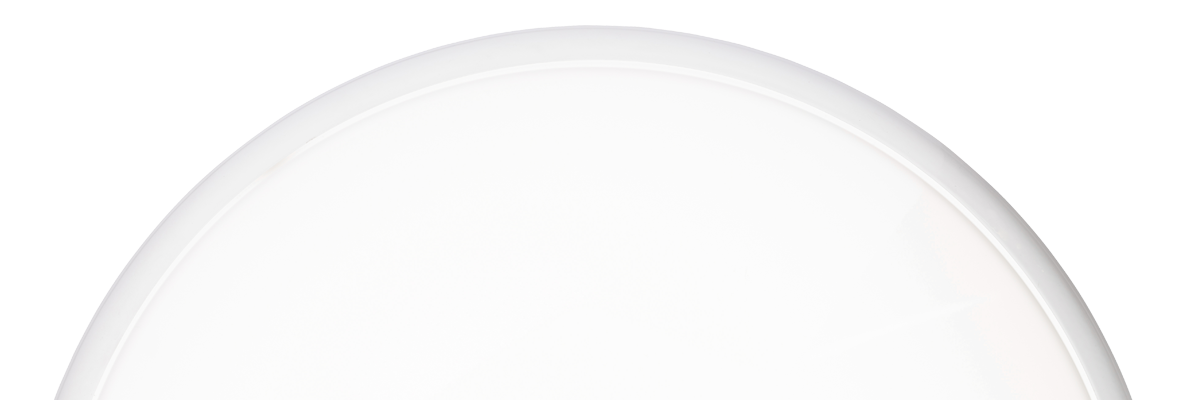

The Cygnet is a Ø420mm interior circular wall light with a depth of 117mm. The luminaire has a maximum lumen package of 2,800lm with a longevity of at least 50,000 hours.

The body is constructed from spun sheet steel and uses a polycarbonate opal diffuser. The bezel of the product also has a fixingless appearance due to the sub-assembly construction and flexible diffuser.

The Cygnet is targeted at large stairwells where wiring points are limited and therefore require a higher lumen output. Likewise the emergency output is higher than a normal luminaire of this type due to the 5W inverter and battery combination.

This product can also facilitate DALI dimming as well as DALI emergency options.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 1200lm
1600lm
2000lm
2400lm
2800lm
CYG/1200
CYG/1600
CYG/2000
CYG/2400
CYG/2800
Colour Temperature 3000K
4000K
6000K
/3K
/4K
/6K

Extras

Type Options Code
Dimming DALI Dimming -DA
Sensor Microwave Sensor -MW
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance Tridonic CLE LED engine and driver to ensure an outstanding performance with longevity

120° Beam Angle

Performance

Lumen Output Wattage ll/cW
1,202 lm
11.5 W 104.5 ll/cW
1,601 lm
15.6 W 102.4 ll/cW
2,005 lm
19.7 W 101.9 ll/cW
2,402 lm
23.2 W 103.5 ll/cW
2,805 lm 27.7 W 101.3 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 5 A
THD <10%
Dimming Range 1 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
Fixing Centres (see diagram) 278 x 278 x 278mm
Dimensions Ø420 x 117mm
Weight 2.5kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
1,202 lm
38%
457 lm
1,601 lm
28%
448 lm
2,005 lm
22%
441 lm
2,402 lm
19%
456 lm
2,805 lm 16% 449 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type NiCd (Nickel Cadmium)
Battery Pack 1 x 3.6V 4.2Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
