Product Overview

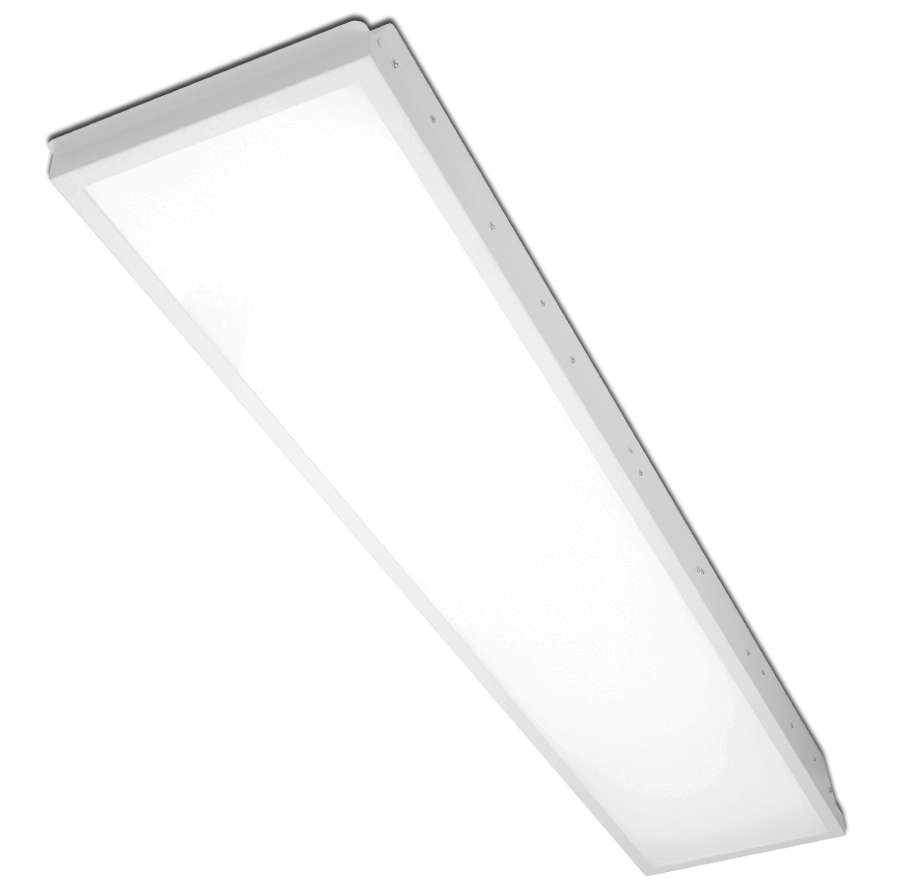

The Hornet is a modular back lit luminaire designed with variable configurations to fit any SAS or Burgess Ceiling.

The Hornet can be supplied with the latest G2 Philips Fortimo with Philips SimpleSet calibration or the latest Tridonic QLE G4 LED system. both systems carry a 5 year warranty with a longevity of at least 50,000 hours.

The luminaire is constructed from white powder coated steel with a brushed aluminium interface tray and nanoptic printed polycarbonate diffuser – the product therefore comes as standard with (TPa) fire rating.

All modular luminares are supplied with a panel mount socket as standard which makes for a higher quality finish and fast installation (no hard fixing). All electronic gear and components are housed with in the product on the interface tray which makes the luminaire easy to handle and gives the product a minimalist appearance.

TP(a) Fire Rated

‘Plug and Play’
No hard fixing

Easy install
No remote components

Modular component build

Options

Type Options Code
Lumen Output* 3600lm
3700lm
3800lm
3900lm
4000lm
4100lm
4200lm
4300lm
4400lm
4500lm
4600lm
4700lm
4800lm
4900lm
5000lm
HNT/15/3600
HNT/15/3700
HNT/15/3800
HNT/15/3900
HNT/15/4000
HNT/15/4100
HNT/15/4200
HNT/15/4300
HNT/15/4400
HNT/15/4500
HNT/15/4600
HNT/15/4700
HNT/15/4800
HNT/15/4900
HNT/15/5000
LED System Philips
Tridonic
/P
/T
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Ceiling System **See Table Below** /–

*Custom Lumen Outputs available upon request

Extras

Type Options Code
Air Handling 20 l/s
30 l/s
40 l/s
-A2
-A3
-A4
Tegulation 4mm Teg
8mm Teg
-4
-8
Dimming DALI Dimming -DA
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

More than 50,000 hours life span

Colour consistency with <3 SDCM

High end fabrication with
self-finishing materials

5 Year Warranty

Standard & Bespoke Bezel Options

The Hornet has many standard bezel options to allow the luminaire to integrate into any ceiling type including plasterboard. Features also include allowing for a drop tegulation below the ceiling plane to match various ceiling tile products. RAL colour can also be specified to allow the Hornet to seamlessly match ceiling tile aesthetics.

Bespoke bezel options and luminaire sizes are also available upon request.

NFC Smart Programming

Using Philips SimpleSet Technology the Hornet can be preset (Fixed Output & DALI) to the required lumen output to reflect what was used for the lighting calculations without the need for the analogue type resistors.

Another benefit to this technology is post luminaire installation. The NFC commissioning tool makes it easy to adjust any luminaire output without having to deconstruct the product. Simply having access to press the tool against the geartray plate will allow re-calibration to the desired settings in seconds.

120° Beam Angle

Performance

Typical Lumen Outputs Wattage ll/cW
3703 lm 31.8 W 116.4 ll/cW
4105 lm 35.1 W 117.0 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 202 – 250 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <4%
Overvoltage Protection 320 V
THD <20%
Dimming Range 1 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
UGR <19

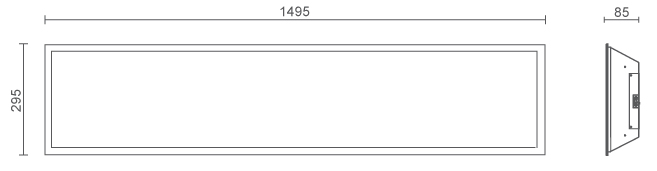

Dimensions (Standard format) 295 x 1495 x 85mm
Weight 6.5kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Lumen Output BLF Emergency Lumen Output
3703 lm 15% 555 lm
4105 lm 13% 534 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 2.4V 2.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS

Ceiling Systems*

Manufacturer Ceiling Size Code
SAS120 System 120 300 x 1500mm
600 x 1500mm
CS02
CS05
SAS150 System 150 300 x 1500mm
600 x 1500mm
CS38
CS41
SAS330 System 330 Variable dimensions CS–

*Other ceiling systems available upon request
