Product Overview

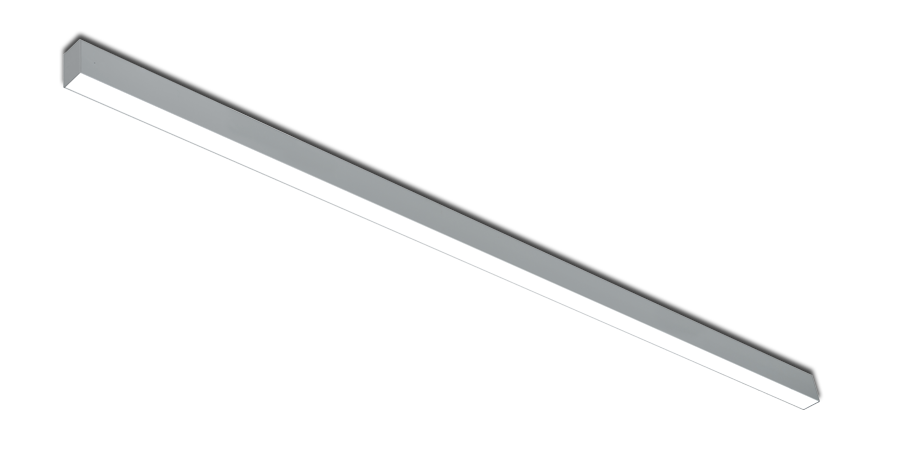

The Panther is a linear luminaire which can be supplied in continuous lengths of 70mm increments. Continuous lengths of multiple runs come as standard with a ‘through wiring’ loom meaning that only the start module of the run requires termination.

This product uses the latest generation 5 (ADV5) Tridonic boards to ensure maximum performance and efficiency.

The Panther can be supplied in either surface or suspended formats.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Custom lengths available

5 Year Warranty

Options

Type Options Code
Module Standalone
Start
Middle
End
Corner
Cross
PAN/0
PAN/1
PAN/2
PAN/3
PAN/4
PAN/5

Lengths

Standalone Code
606mm      (1630lm) 0/606/1630
676mm (1840lm) 0/676/1840
746mm (2060lm) 0/746/2060
816mm (2270lm) 0/816/2270
886mm (2490lm) 0/886/2490
956mm (2700lm) 0/956/2700
1026mm (2920lm) 0/1026/2920
1096mm (3130lm) 0/1096/3130
1166mm (3250lm) 0/1166/3250
1236mm (3470lm) 0/1236/3470
1306mm (3680lm) 0/1306/3680
1376mm (3900lm) 0/1376/3900
1446mm (4110lm) 0/1446/4110
1516mm (4330lm) 0/1516/4330
1586mm (4540lm) 0/1586/4540
1656mm (4760lm) 0/1656/4760
1726mm (4880lm) 0/1726/4880
1796mm (5090lm) 0/1796/5090
1866mm (5310lm) 0/1866/5310
1936mm (5520lm) 0/1936/5520
2006mm (5740lm) 0/2006/5740
2076mm (5950lm) 0/2076/5950
2146mm (6170lm) 0/2146/6170
2216mm (6380lm) 0/2216/6380
2286mm (6500lm) 0/2286/6500
Start Code
580mm (1630lm) 1/580/1630
650mm (1840lm) 1/650/1840
720mm (2060lm) 1/720/2060
790mm (2270lm) 1/760/2270
860mm (2490lm) 1/860/2490
930mm (2700lm) 1/930/2700
1000mm (2920lm) 1/1000/2920
1070mm (3130lm) 1/1070/3130
1140mm (3250lm) 1/1140/3250
1210mm (3470lm) 1/1210/3470
1280mm (3680lm) 1/1280/3680
1350mm (3900lm) 1/1350/3900
1420mm (4110lm) 1/1420/4110
1490mm (4330lm) 1/1490/4330
1560mm (4540lm) 1/1560/4540
1630mm (4760lm) 1/1630/4760
1700mm (4880lm) 1/1700/4880
1770mm (5090lm) 1/1770/5090
1840mm (5310lm) 1/1840/5310
1910mm (5520lm) 1/1910/5520
1980mm (5740lm) 1/1980/5740
2050mm (5950lm) 1/2050/5950
2120mm (6170lm) 1/2120/6170
2190mm (6380lm) 1/2190/6380
2260mm (6500lm) 1/2260/6500
Middle Code
560mm (1630lm) 2/560/1630
630mm (1840lm) 2/630/1840
700mm (2060lm) 2/700/2060
770mm (2270lm) 2/770/2270
840mm (2490lm) 2/840/2490
910mm (2700lm) 2/910/2700
980mm (2920lm) 2/980/2920
1050mm (3130lm) 2/1050/3130
1120mm (3250lm) 2/1120/3250
1190mm (3470lm) 2/1190/3470
1260mm (3680lm) 2/1260/3680
1330mm (3900lm) 2/1330/3900
1400mm (4110lm) 2/1400/4110
1470mm (4330lm) 2/1470/4330
1540mm (4540m) 2/1540/4540
1610mm (4760lm) 2/1610/4760
1680mm (4880lm) 2/1680/4880
1750mm (5090lm) 2/1750/5090
1820mm (5310lm) 2/1820/5310
1890mm (5520lm) 2/1890/5520
1960mm (5740lm) 2/1960/5740
2030mm (5950lm) 2/2030/5950
2100mm (6170lm) 2/2100/6170
2170mm (6380lm) 2/2170/6380
2240mm (6500lm) 2/2240/6500
End Code
580mm (1630lm) 1/580/1630
650mm (1840lm) 1/650/1840
720mm (2060lm) 1/720/2060
790mm (2270lm) 1/760/2270
860mm (2490lm) 1/860/2490
930mm (2700lm) 1/930/2700
1000mm (2920lm) 1/1000/2920
1070mm (3130lm) 1/1070/3130
1140mm (3250lm) 1/1140/3250
1210mm (3470lm) 1/1210/3470
1280mm (3680lm) 1/1280/3680
1350mm (3900lm) 1/1350/3900
1420mm (4110lm) 1/1420/4110
1490mm (4330lm) 1/1490/4330
1560mm (4540lm) 1/1560/4540
1630mm (4760lm) 1/1630/4760
1700mm (4880lm) 1/1700/4880
1770mm (5090lm) 1/1770/5090
1840mm (5310lm) 1/1840/5310
1910mm (5520lm) 1/1910/5520
1980mm (5740lm) 1/1980/5740
2050mm (5950lm) 1/2050/5950
2120mm (6170lm) 1/2120/6170
2190mm (6380lm) 1/2190/6380
2260mm (6500lm) 1/2260/6500

Extras

Type Options Code
Colour Temperature 3000K
4000K
6500K
/3K
/4K
/6K
Dimming DALI Dimming -DA
Suspended Mounting Suspension Kit & 2m Power Flex -S
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3
90° Beam Angle

Standard

Lumen Ouput Wattage ll/cW
606mm (1630lm) 14.7 W 110.8 ll/cW
676mm (1840lm) 16.6 W 110.8 ll/cW
746mm (2060lm) 18.4 W 111.9 ll/cW
816mm (2270lm) 20.3 W 111.8 ll/cW
886mm (2490lm) 22.1 W 112.6 ll/cW
956mm (2700lm) 24.0 W 112.5 ll/cW
1026mm (2920lm) 25.8 W 113.1 ll/cW
1096mm (3130lm) 27.7 W 112.9 ll/cW
1166mm (3250lm) 29.4 W 110.5 ll/cW
1236mm (3470lm) 31.3 W 110.8 ll/cW
1306mm (3680lm) 33.1 W 111.1 ll/cW
1376mm (3900lm) 35.0 W 111.4 ll/cW
1446mm (4110lm) 36.8 W 111.6 ll/cW
1516mm (4330lm) 38.7 W 111.8 ll/cW
1586mm (4540lm) 40.5 W 112.0 ll/cW
1656mm (4760lm) 42.4 W 112.2 ll/cW
1726mm (4880lm) 44.1 W 110.6 ll/cW
1796mm (5090lm) 46.0 W 110.6 ll/cW
1866mm (5310lm) 47.8 W 111.0 ll/cW
1936mm (5520lm) 49.7 W 111.0 ll/cW
2006mm (5740lm) 51.5 W 111.4 ll/cW
2076mm (5950lm) 53.4 W 111.4 ll/cW
2146mm (6170lm) 55.2 W 111.7 ll/cW
2216mm (6380lm) 57.1 W 111.7 ll/cW
2260mm (6500lm) 58.8 W 110.5 ll/cW
Longer lengths available on special request

Emergency

Lumen Ouput BLF Emergency Lumon Output
606mm (1630lm) 21% 342 lm
676mm (1840lm) 20% 326 lm
746mm (2060lm) 16% 329 lm
816mm (2270lm) 15% 340 lm
886mm (2490lm) 14% 348 lm
956mm (2700lm) 12% 324 lm
1026mm (2920lm) 11% 321 lm
1096mm (3130lm) 11% 344 lm
1166mm (3250lm) 10% 325 lm
1236mm (3470lm) 9% 312 lm
1306mm (3680lm) 9% 331 lm
1376mm (3900lm) 8% 312 lm
1446mm (4110lm) 8% 328 lm
1516mm (4330lm) 8% 346 lm
1586mm (4540lm) 7% 317 lm
1656mm (4760lm) 7% 333 lm
1726mm (4880lm) 7% 341 lm
1796mm (5090lm) 6% 305 lm
1866mm (5310lm) 6% 318 lm
1936mm (5520lm) 6% 331 lm
2006mm (5740lm) 6% 344 lm
2076mm (5950lm) 6% 357 lm
2146mm (6170lm) 5% 308 lm
2216mm (6380lm) 5% 319 lm
2286mm (6500lm) 5% 325 lm
Rated Supply Voltage 220 – 240 V
AC Voltage Range 202 – 250 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <10%
Overvoltage Protection 320 V
THD <20%
Dimming Range 1 – 100%
Operating Temperature -25… +60 °C
Longevity (L70 B10) 72,000 hours
Typical UGR Rating  <19
Colour Rendering Ra>82

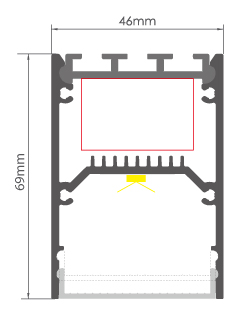

Section Dimensions 46 x 69mm
Weight 3.5kg/m
Warranty 5 Years
Certification CE, ROHS
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 2.4V 2.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
