Product Overview

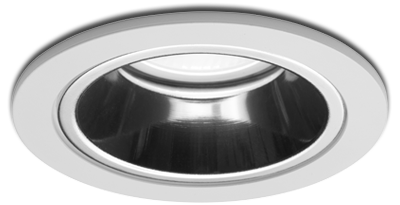

The Cricket tackles glare by using a light source set back from the bezel whilst maximising light output with a specular aluminium reflector. The downlight body is supplied in an adjustable format as standard. The Cricket uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

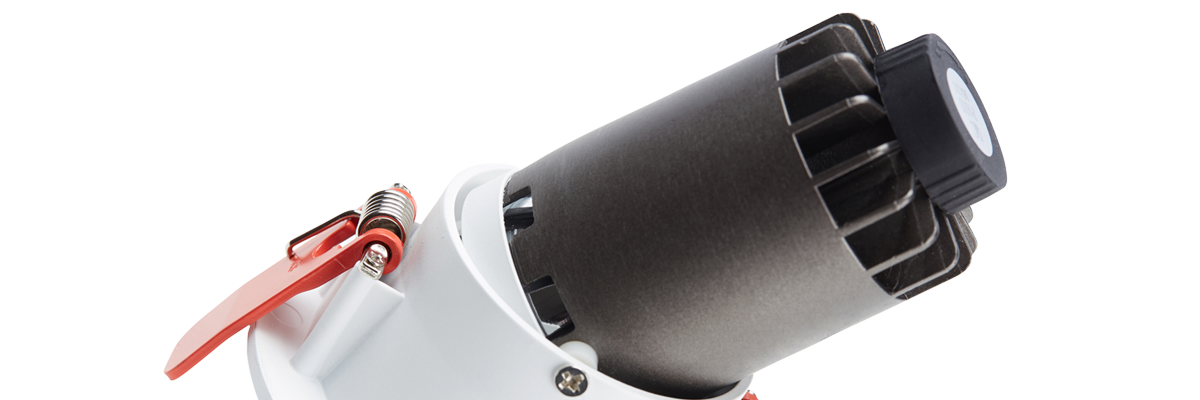

The Cricket is construction consists of two die-cast parts – the heastsink and bezel. These components are held together at the point of articulation for ease of maintenance.

The Cricket is available in 630 & 800 lumen outputs.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 630lm
800lm		 CKT/630
CKT/800
Colour Temperature 3000K
4000K
5000K		 /3K
/4K
/5K
Beam Angle 15° Beam
24° Beam
36° Beam
60° Beam		 /15
/24
/36
/60

Extras

Type Options Code
Dimming DALI Dimming -DA
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test		 -E1
-E2
-E3

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

15° Beam Angle
24° Beam Angle
30° Beam Angle
36° Beam Angle

Performance

Lumen Output Wattage ll/cW
631 lm 8.1 W 77.9 ll/cW
795 lm 10.2 W 77.9 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 14 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP54

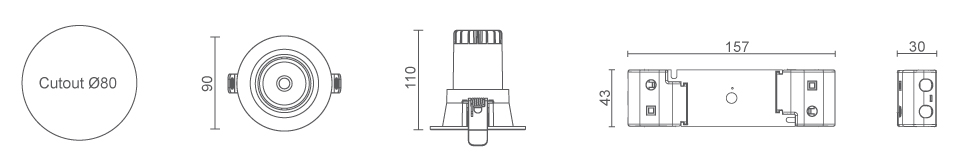

Cutout Ø80mm
Dimensions Ø90 x 110mm
Weight 1.2kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
631 lm 32% 202 lm
795 lm 25% 199 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
