The Leon is a singular adjustable gimbal spotlight. It tackles glare by using a light source set back from the bezel in combination with a black barrel reflector. This also ensures there is no unwanted light spill.
This luminaire is construction from two die-cast parts – the heastsink and bezel. These components are held together at the point of articulation for ease of maintenance.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 1625lm 2167lm | LEO/1625 LEO/2167 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 36° Beam 60° Beam | /36 /60 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 1625 lm | 15.3 W | 106.2 ll/cW |
| 2167 lm | 20.4 W | 106.2 ll/cW |
| Light Source | COB |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP20 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Recessed |
| Protective Class | SELV |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 12 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.9W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 1625 lm | 18% | 297 lm |
| 2167 lm | 14% | 297 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | UKCA, CE, ROHS |
Datasheet
Installation Guide
TM65

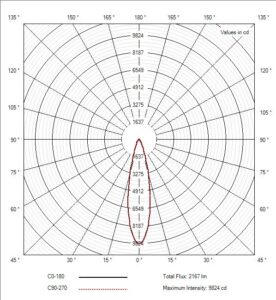

Photometrics
