Losif

Product Overview

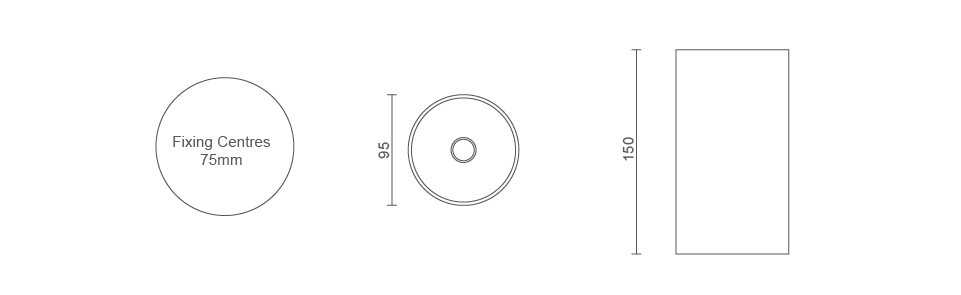

The Losif is a surface/suspended downlight with a diameter of just 95mm and a height of 150mm. The luminaire has a max output of 2250lm and utilises an internal driver.

The ‘twist-lock’ base plate seats inside the tubular body of the luminaire allowing for a fixingless free architectural appearance.

The Losif uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen Output1688lm
2250lm
LOS/1688
LOS/2250
Colour Temperature3000K
4000K
6500K
/3K
/4K
/6K
Beam Angle45° Beam/45

Extras

TypeOptionsCode
DimmingDALI Dimming
Switch dim/Touch dim
Mains dimming
Casambi
-DA
-SD
-MD
-CA
MountingSuspended-S

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

45° Beam Angle

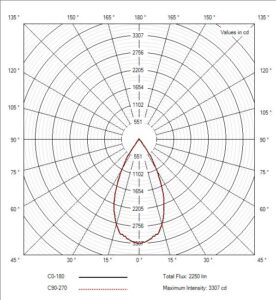

Lighting Data

Lumen OutputWattagell/cW
1688 lm15.4 W109.6 ll/cW
2250 lm20.5 W109.8 ll/cW
Light SourceCOB
SDCM3
 Longevity (L70/B10)60,000 hours
Colour Rendering82
UGR<19

Technical Data

IP Rating IP54
Construction Diecast Aluminium
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting Method Surface
2m Suspended
Protective Class Class 1
Impact Resistance (IK) IK07
Warranty 5 Years
Certification UKCA, CE, ROHS

Electrical Data

Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <1%
Overvoltage Protection 320 V
In-rush Current 12 A
THD <10%
Power Factor 0.95
Parasitic Load 0.5W
Operating Temperature -25 +60°C
