Barracuda Spot Mini

The Barracuda Spot Mini is part of the Barracuda System product family. All Barracuda products require the ‘Barracuda Track’ for installation and operation.

The adjustable spot is ideally suited to spaces where additional lighting maybe required for either accenting or highlighting.

Clock Icon

More than 50,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen OutputØ40mmBAR/SPM/515
Colour Temperature3000K
4000K
6500K
/3K
/4K
/6K
Beam Angle24°
36°
/24
/36

Extras

Type Options Code
Dimming DALI Dimming -DA

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

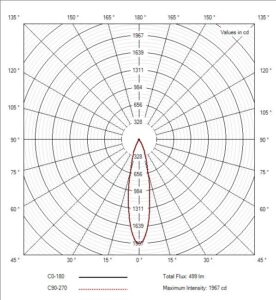

24° Beam Angle

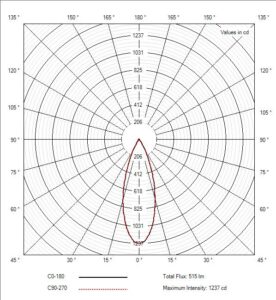

36° Beam Angle

Performance

Typical Lumen OutputsWattagell/cW
499 lm (24°)6.2 W80.5 ll/cW
515 lm (36°)6.2 W83.1 ll/cW
Light SourceSMD
SDCM3
 Longevity (L70/B10)70,000 hours
Colour Rendering90
UGR<16

Technical Data

IP RatingIP20
ConstructionAluminium Body
Polycarbonate diffuser
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting MethodTo be used only with Barracuda track ‘click-in’
Protective ClassSELV
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage DC48 V
DC Voltage Range 38 – 60 V
Output LF current ripple @ 120Hz (Flicker) <3%
Overvoltage Protection 80 V
In-rush Current 10 A
THD <10%
Power Factor 0.95
Parasitic Load 0.34W
Operating Temperature -10 + 50°C
