Eclipse

Product Overview

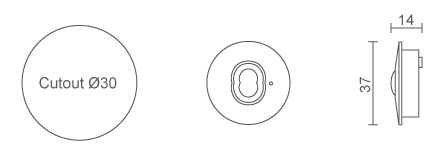

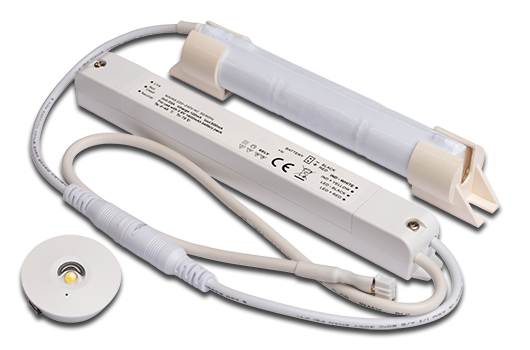

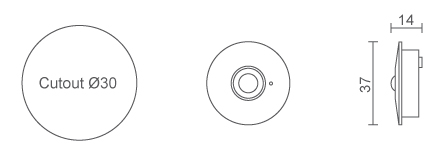

The Eclipse OA (Open Area Optic) is a compact circular 2 Watt LED downlight suitable for ceiling mounting applications with a Ø37mm bezel and 14mm depth. The unit is available in Maintained and Non-Maintained modes.

The unit utilises Ni-Cd battery technology which provides a far longer life than traditional battery types, making this an ideal product for difficult to maintain areas.

Options

Type	Options	Code
Lumen Output	210lm	ECP/210
Mounting Option	Recessed	/RCD
Operation	Maintained Non-Maintained	/M /NM
Emergency	3 Hour Facility 3 Hour Self Test	/E1 /E2

Extras

Type	Options	Code
Optic	Open Area Corridor	-AO -CD

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity.

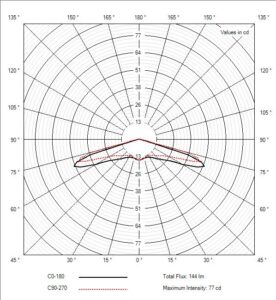

Open Area 120° Beam Angle

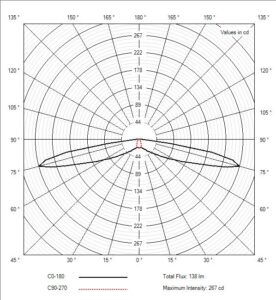

Corridor 120° Beam Angle

Lighting Data

Lumen Output	Wattage	ll/cW
210 lm	2.0 W	105.0 ll/cW

Technical Data

IP Rating	IP20
Construction	Polycarbonate
RAL Colour (Other colours available upon special request)	RAL9016 (Standard)
Mounting Method	Recessed
Protective Class	Class 2
Impact Resistance (IK)	IK01
Warranty	5 Years
Certification	UKCA, CE, ROHS

Electrical Data

Rated Supply Voltage	220 – 240 V
AC Voltage Range	198 – 264 V
Mains Frequency	50/60 Hz
Output LF current ripple @ 120Hz (Flicker)	<1%
Overvoltage Protection	320 V
In-rush Current	3 A
THD	<10%
Power Factor	0.95
Parasitic Load	0.3W
Operating Temperature	0 +40°C

Emergency Data

Standard Lumen Output	BLF	Emergency Lumen Output
210 lm	100%	210 lm

Emergency Duration	3 Hours
Recharge Period	24 Hours
Battery Type	LiFePO4 (Lithium Iron Phosphate)
Battery Pack	3.6V 1800mAh
Emergency Power	2.0W
Operating Tempertaure	0 – 40°C
Power Efficiency	95%
