Pike

The Pike triple sided diffuser linear luminaire which can be supplied in continuous lengths of 70mm increments. Continuous lengths of multiple runs come as standard with a ‘through wiring’ loom meaning that only the start module of the run requires termination.

The Pike luminaire is built in a modular system for ease of installation and maintenance. All the electronic gear and wiring is housed on a removable gear tray separate from the main body and retained by sprung metal clips.

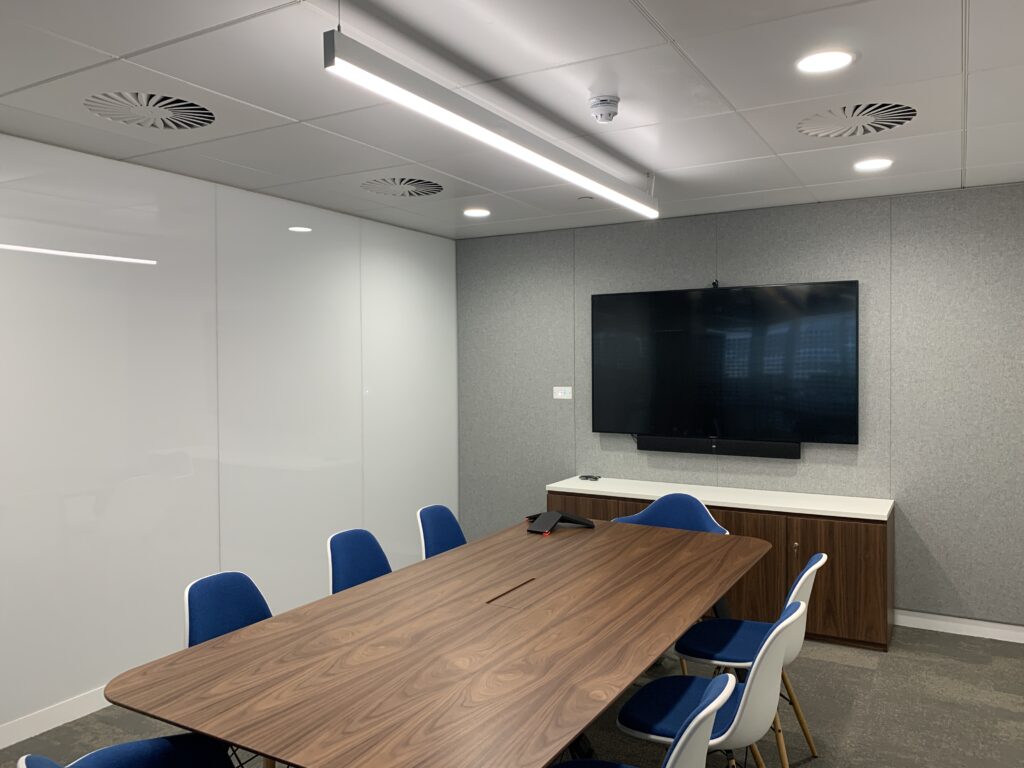

The Pike can be supplied in either surface or suspended formats.

Clock Icon

More than 70,000 hours life span

'Plug and Play' No hard fixing

Easy install No remote components

Modular component build

Options

TypeOptionsCode
Direct OnlyStandalonePIK
Diffuser TypeFrosted Opal/F1
Lumen OutputSee datasheet table

Length

574mm to 2954mm
(See datasheet table)
/****
Colour Temperature3000K
4000K
6500K
Tunable White
/3K
/4K
/6K
/TW

Extras

TypeOptionsCode
DimmingDALI Dimming
Switch dim/Touch dim
Casambi
-DA
-TD
-CA
MountingSuspension Kit & 2m Power Flex-S
Emergency3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Pike Length Calculator

Tunable White

The effect of light on our biological clock is important as it influences many aspects of our physical and emotional well-being. This biological clock is regulated by light and darkness, by the daily cycles of night and day and the time we spend asleep and awake.

In the morning, as the sun comes up, light levels increase, the colour of light shifts towards cooler colour temperatures, and we wake up and become active. On the other hand, in the evening, as the sun goes down and the colour of light shifts towards warmer colour temperatures, we unwind, relax and prepare for sleep.

Our body’s hormone levels rise and fall with these light cycles. Cortisol production increases with morning light and decreases throughout the course of the day. Melatonin levels increase as darkness sets in and decrease as morning approaches. In our modern society, we spend much of our time indoors – at home, in a school, office, shop or hospital. Those who have to stay indoors for significant parts of their time under static lighting conditions run the risk of disrupting their biological rhythms.

Smart Programming

Using Premium LED drivers with window function, our luminaires can be preset (both Fixed Output & DALI versions) during the production process to a desired lumen output. This gives the versatility to reflect custom lumen packages used for project based lighting calculations.

Another benefit to this technology is post luminaire installation, the light output can be adjusted to increase/decrease from its original setting. This could be in the instance of a rentable space (CAT A) becoming an occupied space (CAT B).

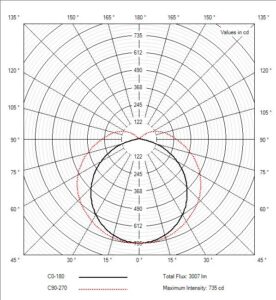

Performance

Typical Lumen OutputsWattagell/cW
1704 lm/m (Opal F1)15.2 W/m112.2 ll/cW
Light SourceSMD
SDCM3
 Longevity (L70/B10)70,000 hours
Colour Rendering80
UGR<19

Technical Data

IP RatingIP20
ConstructionAluminium Body
Polycarbonate diffuser
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting Method2m Suspended
Protective Class1
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage220 – 240 V
AC Voltage Range198 – 264 V
Mains Frequency50/60 Hz
Output LF current ripple @ 120Hz (Flicker)<4%
Overvoltage Protection320 V
In-rush Current20.9 A
THD<10%
Power Factor0.98
Parasitic Load1.25W
Operating Temperature-25 +60°C

Emergency

Lumen Output BLF Emergency Lumen Output
1704 lm/m 22% 370 lm
Emergency Duration3 Hours
Recharge Period16 Hours
Battery TypeLiFePO4 (Lithium Iron Phosphate)
Battery Pack6.4V 3000Ah
Parasitic Load1.2W
Operating Tempertaure0 – 60°C
Power Efficiency95%
CertificationUKCA, CE, ROHS
