Mantis

Product Overview

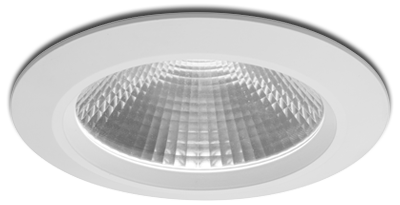

The Mantis is a Ø105mm downlight with the added advantage of being used in appplications usually suited to a large area downlight. The Mantis can achieve a lumen package of up to 1800lm due to its large bodied heatsink.

The Mantis uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen Output1402lm
1636lm
2337lm
MAN/1402
MAN/1636
MAN/2337
Colour Temperature3000K
4000K
6500K
/3K
/4K
/6K
Beam Angle36° Beam
60° Beam
/36
/60

Extras

TypeOptionsCode
DimmingDALI Dimming
Switch dim/Touch dim
Mains dimming
Casambi
-DA
-SD
-MD
-CA
Emergency3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

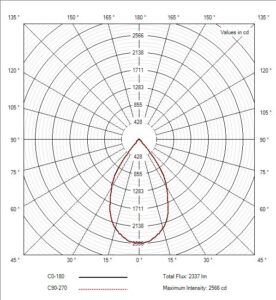

60° Beam Angle





















Lighting Data

Lumen OutputWattagell/cW
1402 lm12.1 W115.9 ll/cW
1636 lm14.1 W116.0 ll/cW
2337 lm20.2 W115.7 ll/cW
Light SourceCREE
SDCM3
 Longevity (L70/B10)60,000 hours
Colour Rendering82
UGR<19

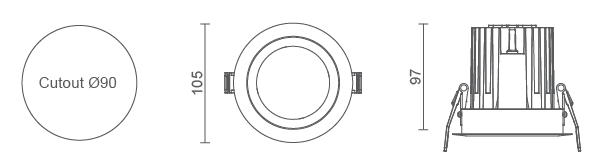

Technical Data

IP Rating IP54
Construction Diecast Aluminium
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting Method <1%
Protective Class SELV
Impact Resistance (IK) IK07
Warranty 5 Years
Certification UKCA, CE, ROHS

Electrical Data

Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <1%
Overvoltage Protection 320 V
In-rush Current 12 A
THD <10%
Power Factor 0.95
Parasitic Load 0.5W
Operating Temperature -25 +60°C

Emergency Data

Standard Lumen Output BLF Emergency Lumen Output
1402 lm 23% 322 lm
1636 lm 20% 324 lm
2337 lm 13% 303 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
