Exo

Product Overview

The Exo is a Ø180mmm large area downlight. The downlight only requires 60mm of ceiling void making it ideal for installations where space is tight.

The heatsink is made from die-cast aluminium which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes. The product is then retained in the ceiling by two sprung arms to allow for quick and easy installation.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen Output1640lm
2200lm
EXO/1640
EXO/2200
Colour Temperature3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle90° Beam/90

Extras

TypeOptionsCode
DimmingDALI Dimming-DA
Emergency3 Hour Facility
3 Hour Self Test
3 Hour Central Test

-E1
-E2
-E3

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

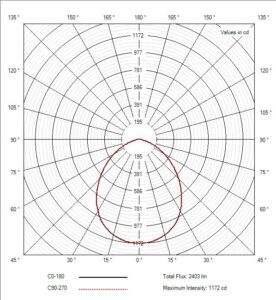

90° Beam Angle

Performance

Lumen Output Wattage ll/cW
1660 lm 14.8 W 112.2 ll/cW
2200 lm 19.8 W 111.1 ll/cW
Rated Supply Voltage220 – 240 V
AC Voltage Range198 – 264 V
Mains Frequency50/60 Hz
Output LF current ripple @ 120Hz (Flicker)<5%
Overvoltage Protection320 V
In-rush Current14 A
THD<10%
Dimming Range1 – 100%
Operating Temperature-25… +60 °C
Longevity (L70/B10)60,000 hours
Colour Rendering (3 SDCM)Ra>82
IP RatingIP54

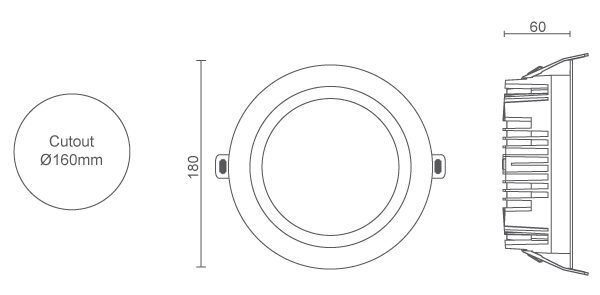

CutoutØ160mm
DimensionsØ180 x 60mm
Weight1.9kg
Warranty5 Years
CertificationCE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
1660 lm 17% 282 lm
2200 lm 13% 286 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
