Brevis R Mini Track

Product Overview

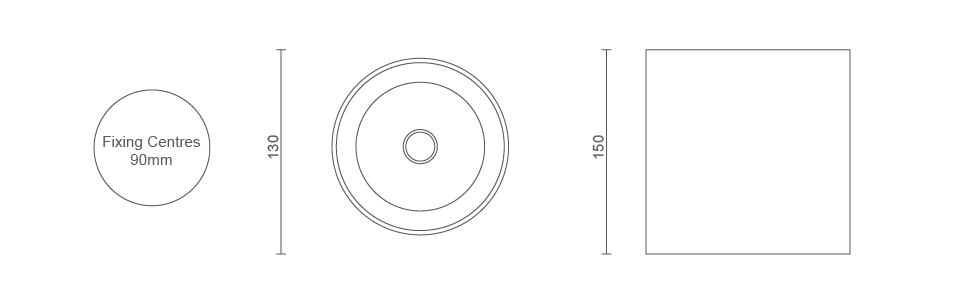

The Brevis R Mini Track (Recessed Light Source) is a Ø130mm downlight which can be surface (Standard) or suspended mounted.

The heatsink is built into the body of the product which enables the downlight to run at cool temperatures without the common need for vents in the vertical walls. The Brevis R Mini Track therefore has a minimalist architectural appearance without any visible fixings and very light weight thanks to its aluminium construction.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

Type Options Code
Lumen Output 1811lm
2415lm
BRE-T/R/M/1811
BRE-T/R/M/2415
Colour Temperature 3000K
4000K
6500K
/3K
/4K
/6K
Beam Angle 60° Beam /60

Extras

TypeOptionsCode
MountingTrack Suspended-S
DimmingDALI Dimming
Switch dim/Touch dim
Mains dimming
Casambi
-DA
-SD
-MD
-CA

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

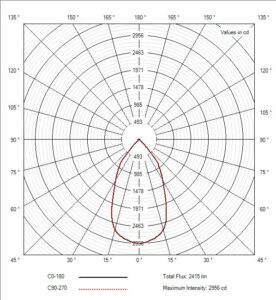

60° Beam Angle

Lighting Data

Lumen OutputWattagell/cW
1811 lm15.7 W115.4 ll/cW
2415 lm20.9 W115.6 ll/cW
Light SourceCOB
SDCM3
 Longevity (L70/B10)60,000 hours
Colour Rendering82
UGR<19

Technical Data

IP RatingIP20
ConstructionDiecast Aluminium
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting MethodTrack mounted:
Global
Powergear
Stucchi
Unipro
Protective ClassClass 1
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage220 – 240 V
AC Voltage Range198 – 264 V
Mains Frequency50/60 Hz
Output LF current ripple @ 120Hz (Flicker)<1%
Overvoltage Protection320 V
In-rush Current12 A
THD<10%
Power Factor0.95
Parasitic Load1.0 W
Operating Temperature-25 +60°C
