Barracuda Linear

The Barracuda Linear is part of the Barracuda System product family. All Barracuda products require the ‘Barracuda Track’ for installation and operation.

The linear is ideally suited to spaces that require general area lighting with a high uniformity requirement such as working and circulation spaces.

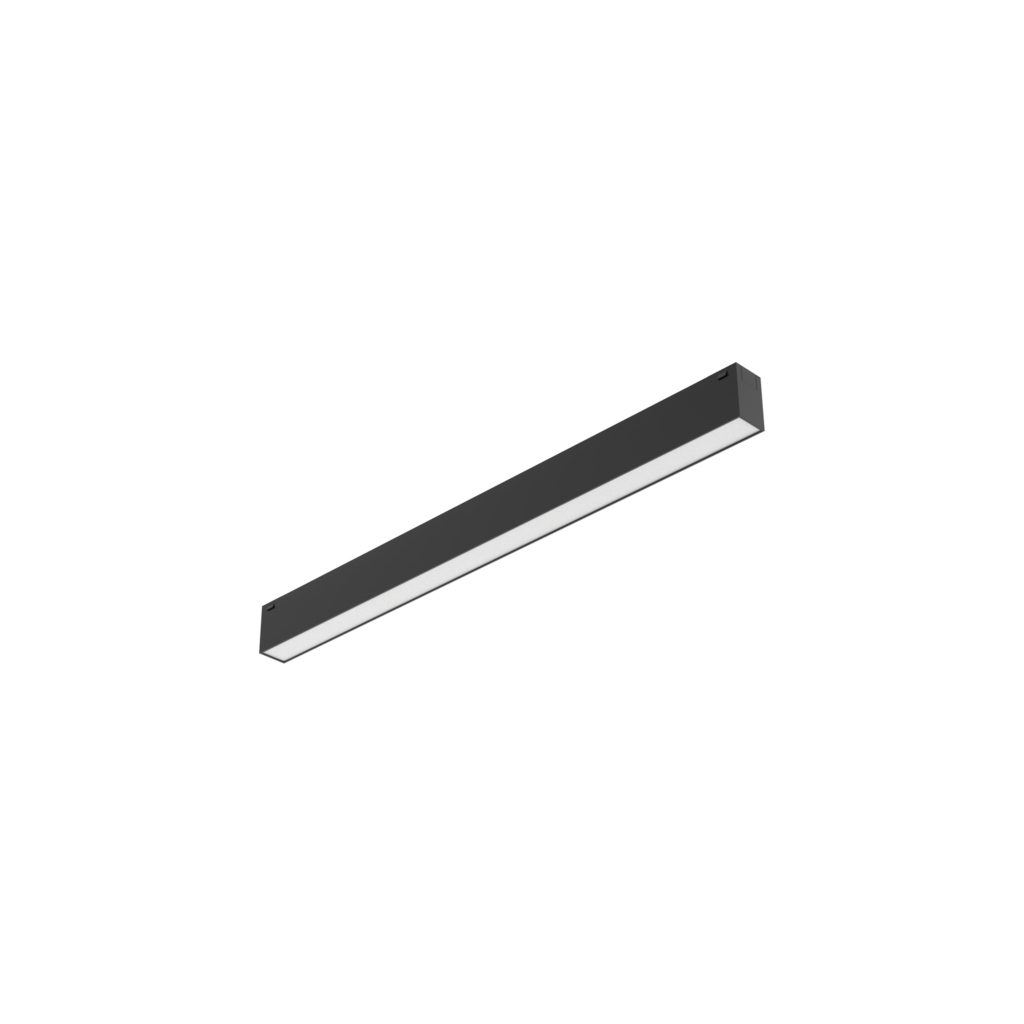

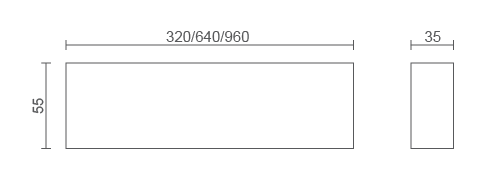

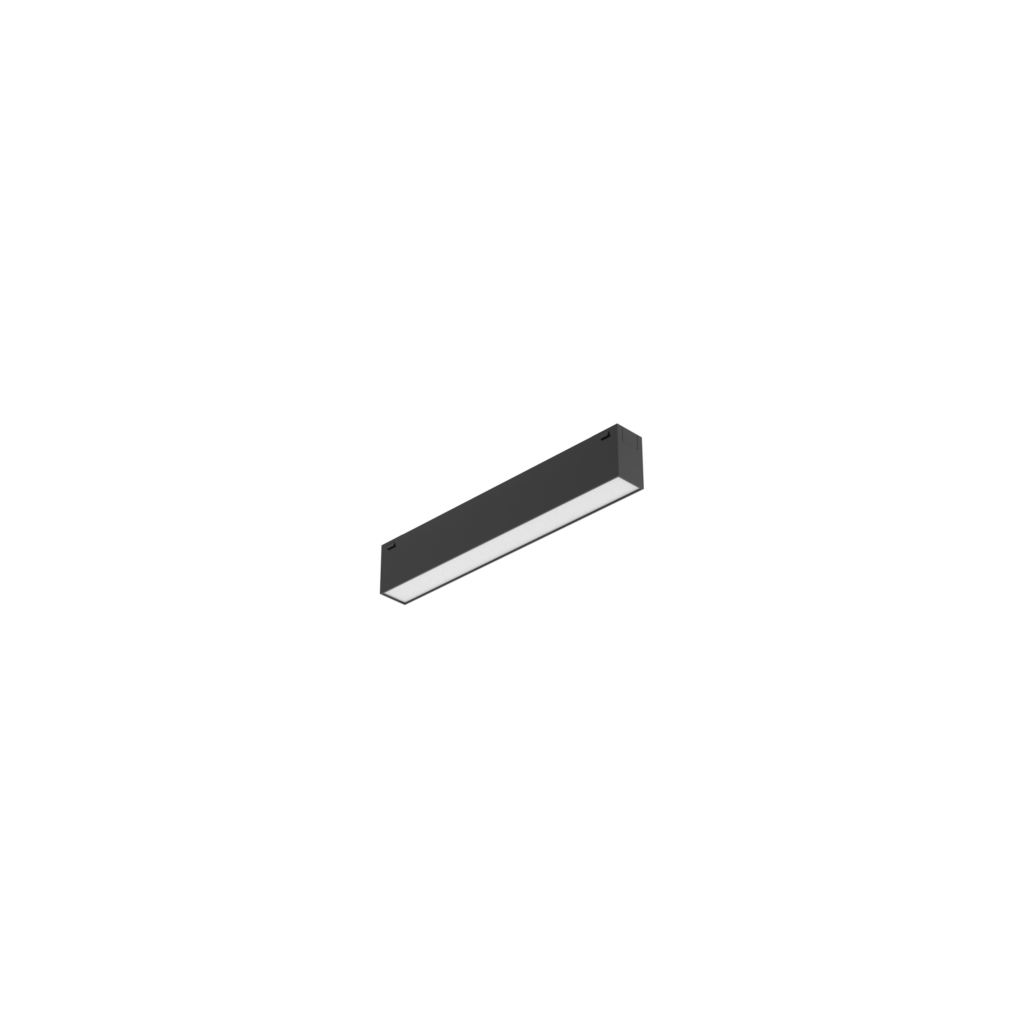

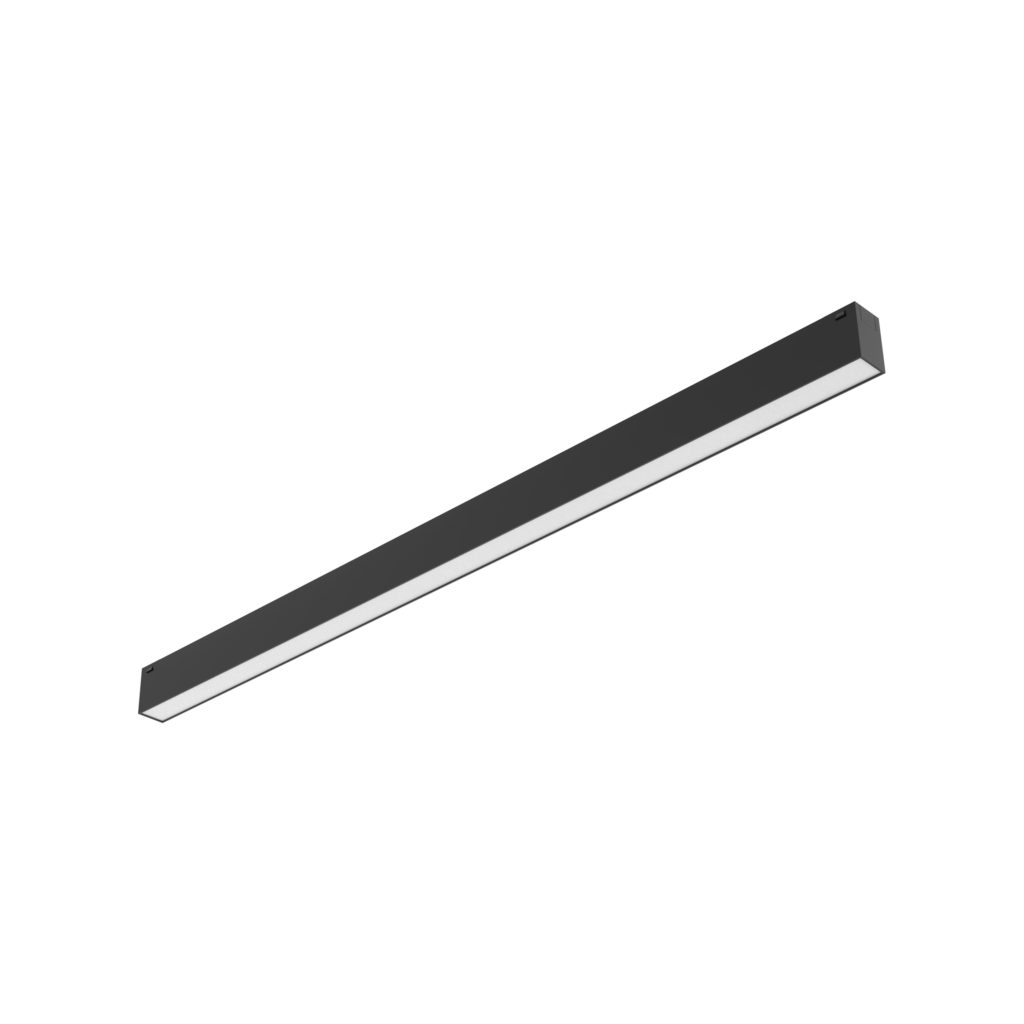

The luminaire is available in 320mm, 640mm & 960mm lengths.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
BarracudaLinearBAR/L
Diffuser TypeFrosted Opal
Microprism
/F1
/P1
Lumen OutputSee datasheet table
Length320mm
640mm
960mm
/320
/640
/960
Colour Temperature3000K
4000K
6500K
/3K
/4K
/6K

Extras

Type Options Code
Dimming DALI Dimming -DA

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

Performance

Typical Lumen Outputs Wattage ll/cW
1146 lm (Opal F1 320mm) 13.2 W 86.8 ll/cW
2159 lm (Opal F1 640mm) 26.0 W 83.0 ll/cW
3159 lm (Opal F1 960mm) 39.3 W 80.4 ll/cW
Light SourceSMD
SDCM3
 Longevity (L70/B10)70,000 hours
Colour Rendering90
UGR<19

Technical Data

IP RatingIP20
ConstructionAluminium Body
Polycarbonate diffuser
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting MethodTo be used only with Barracuda track ‘click-in’
Protective ClassSELV
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage DC48 V
DC Voltage Range 38 – 60 V
Output LF current ripple @ 120Hz (Flicker) <3%
Overvoltage Protection 80 V
In-rush Current 10 A
THD <10%
Power Factor 0.95
Parasitic Load 0.34W
Operating Temperature -10 + 50°C

Downloads

Datasheet

Installation Guide

TM65

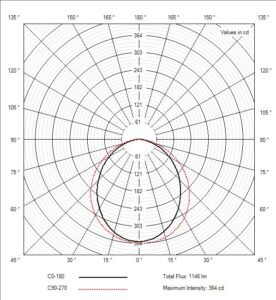

Photometrics
