The Rhene is a 360 x 235mm IP65 exterior wall light with a depth of 190mm. The body is constructed from die-cast aluminium with a grey powder coat finish. Cable entry can be made into the body from the rear or any side. The diffuser is made from toughened glass giving the Rhene an impact rating of IK08.
The Rhene is available with emergency and integrated microwave sensor options.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 5,280lm 6,600lm 8,800lm 11,000lm | RHE/5280 RHE/6600 RHE/8800 RHE/11000 |
| Colour Temperature | 3000K 4000K 5000K | /3K /4K /5K |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming | -DA |
| Sensor | Microwave Sensor | -MW |
| Emergency | 3 Hour Facility | -E1 |
120° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 5,282 lm | 48.4 W | 109.1 ll/cW |
| 6,598 lm | 60.2 W | 109.6 ll/cW |
| 8,801 lm | 80.4 W | 109.5 ll/cW |
| 11,002 lm | 99.8 W | 110.2 ll/cW |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <10% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2 A |
| THD | <10% |
| Dimming Range | 15 – 100% |
| Operating Temperature | -25… +60 °C |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering (3 SDCM) | Ra>82 |
| IP Rating | IP65 |
| IK Rating | IK08 |

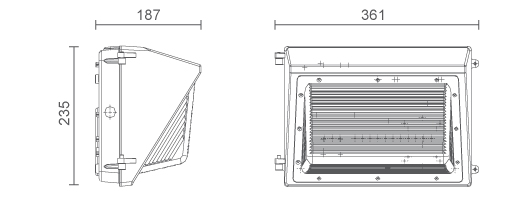

| Dimensions | 361 x 235 x 187mm |
| Weight | 2.1kg |
| Warranty | 5 Years |
| Certification | CE, ROHS |
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 5,282 lm | 8% | 423 lm |
| 6,598 lm | 6% | 396 lm |
| 8,801 lm | N/A | N/A |
| 11,002 lm | N/A | N/A |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | Li-ion (Lithium Iron Phosphate) |
| Battery Pack | 1 x 3.7V 2.2Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
