The Terum Plus is an IP44 flat panel modular for use in T15 & T24mm ceilings with surface mount and suspended options.
The Terum Plus uses a Philips LED engine coupled with a premium remote driver to deliver a 5 year warranty with a longevity of at least 60,000 hours.
The luminaire is constructed from white powder coated aluminium and has a mirco prismatic diffuser. The modular is available in 500 to 8000lm range.
More than 60,000 hours life span
'Plug and Play' No hard fixing
Easy install No remote components
Modular component build
| Type | Options | Code |
|---|---|---|
Ceiling Type
| Currently unknown T24/T15 Lift & Tilt Plasterboard ceiling Surface mounted Suspended | TRP12-6/** |
| Diffuser Type | Micro Prism | /P1 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
Lumen Output* *Custom available upon request | 3000lm 3100lm 3200lm 3300lm 3400lm 3500lm 3600lm 3700lm 3800lm 3900lm 4000lm 4100lm 4200lm 4300lm 4400lm | 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Touch Dimming Switch Dimming DSI |
-DA -TD -SD -DS |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test |
-E1 -E2 -E3 |
Using Premium LED drivers with window function, our luminaires can be preset (both Fixed Output & DALI versions) during the production process to a desired lumen output. This gives the versatility to reflect custom lumen packages used for project based lighting calculations.
Another benefit to this technology is post luminaire installation, the light output can be adjusted to increase/decrease from its original setting. This could be in the instance of a rentable space (CAT A) becoming an occupied space (CAT B).
| Typical Lumen Outputs | Wattage | ll/cW |
|---|---|---|
| 3702 lm | 27.4 W | 135.1 ll/cW |
| 4104 lm | 30.6 W | 134.1 ll/cW |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 202 – 250 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| THD | <20% |
| Dimming Range | 1 – 100% |
| Operating Temperature | -25… +60 °C |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering (3 SDCM) | Ra>82 |
| UGR | <19 |

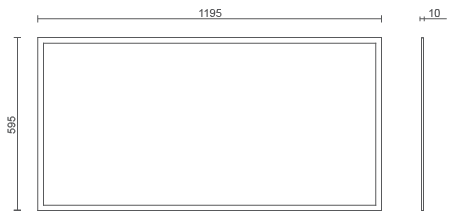

| Dimensions (Standard format) | 595 x 1195 x 10mm |
| Weight | 5.5kg |
| Warranty | 5 Years |
| Certification | CE, ROHS |
| Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 3702 lm | 12% | 444 lm |
| 4104 lm | 11% | 451 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 2.4V 2.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
