Nero D

Product Overview

The Nero D is part of the Nero family. The downlight offers a wide uniform light distribution whilst keeping a minimalist architectural appearance.

This luminaire is construction from two die-cast parts – the heastsink and bezel. These components are held together at the point of articulation for ease of maintenance.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen Output1511lm
2014lm
NER/D/1511
NER/D/2014
Colour Temperature3000K
4000K
6500K
/3K
/4K
/6K
Beam Angle75° Beam/75

Extras

TypeOptionsCode
DimmingDALI Dimming
Switch dim/Touch dim
Mains dimming
Casambi
-DA
-SD
-MD
-CA
Emergency3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

75° Beam Angle

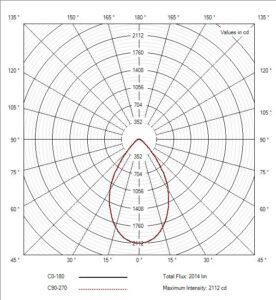

Lighting Data

Lumen OutputWattagell/cW
1511 lm15.1 W100.1 ll/cW
2014 lm20.1 W100.2 ll/cW
Light SourceCREE
SDCM3
 Longevity (L70/B10)60,000 hours
Colour Rendering82
UGR<19

Technical Data

IP Rating IP54
Construction Diecast Aluminium
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting Method Recessed
Protective Class SELV
Impact Resistance (IK) IK07
Warranty 5 Years
Certification UKCA, CE, ROHS

Electrical Data

Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <1%
Overvoltage Protection 320 V
In-rush Current 12 A
THD <10%
Power Factor 0.95
Parasitic Load 0.5W
Operating Temperature -25 +60°C

Emergency Data

Standard Lumen OutputBLFEmergency Lumen Output
1511 lm20%280 lm
2014 lm14%280 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
