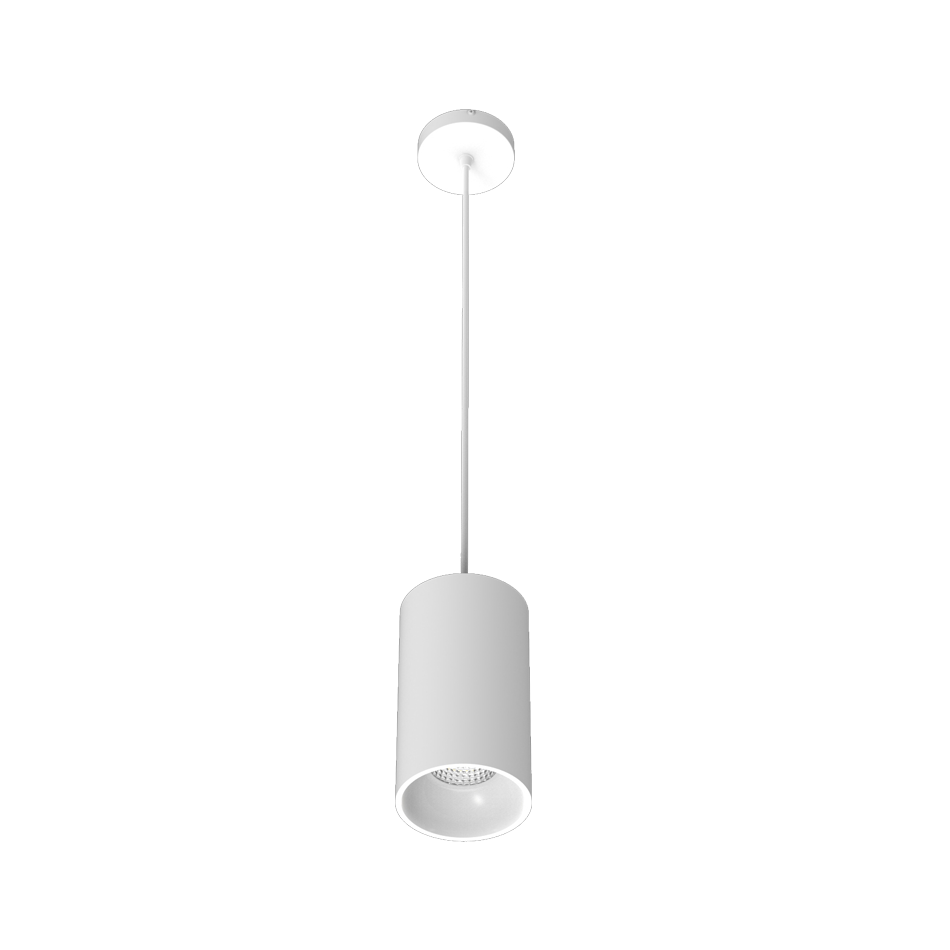

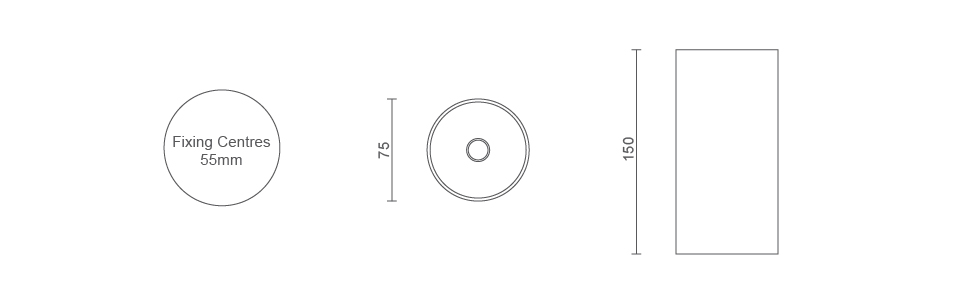

The Tigan is the smallest surface/suspended downlight in the Bumblebee product range. With a diameter of just 75mm and a height of 150mm the luminaire can still manage a lumen output of 1445lm max.
The ‘twist-lock’ base plate seats inside the tubular body of the luminaire allowing for a fixingless free architectural appearance.
The Tigan uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 954lm 1445lm | TGN/954 TGN/1445 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 45° Beam | /45 |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Mounting | Suspended – Ø150mm rose (Standard) Suspended – Ø185mm rose (Emergency) | -S2 -S3 |
| Emergency | 3 Hour Facility* *Requires ‘-S3’ rose | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

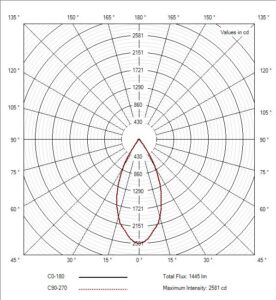

45° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 945 lm | 9.2 W | 103.7 ll/cW |
| 1445 lm | 14.0W | 103.2 ll/cW |
| Light Source | CREE |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP54 |
| Construction | Diecast Aluminium |

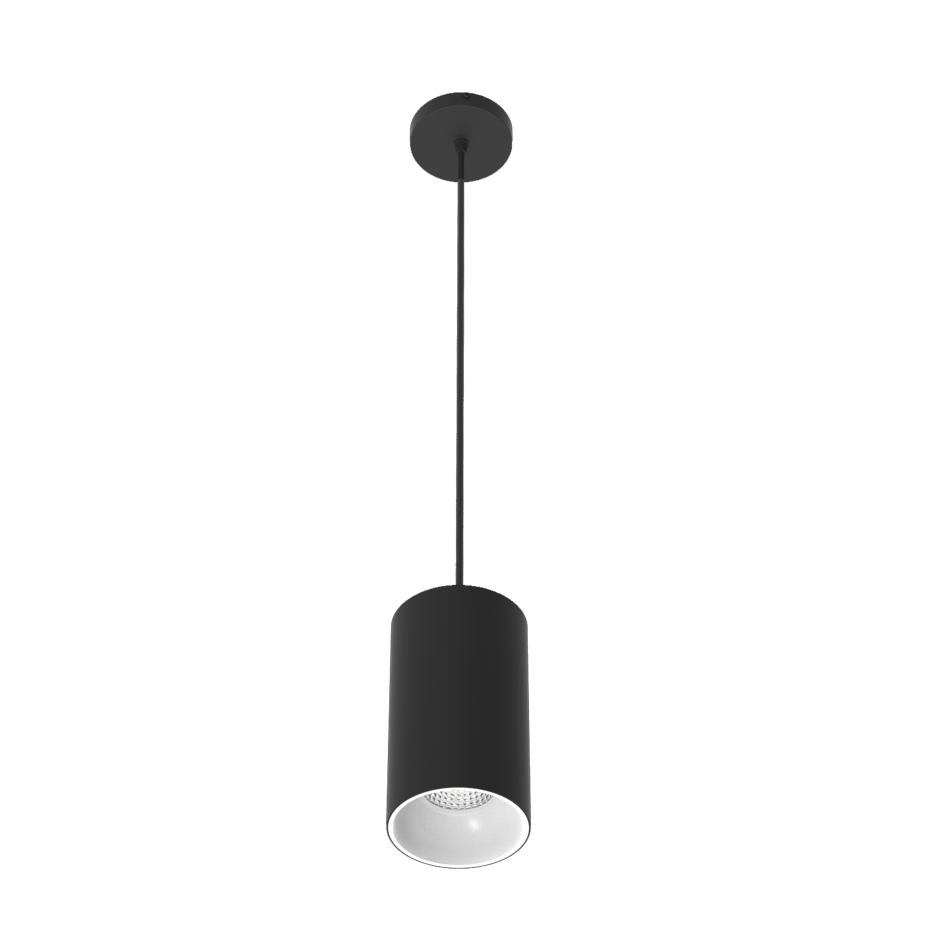

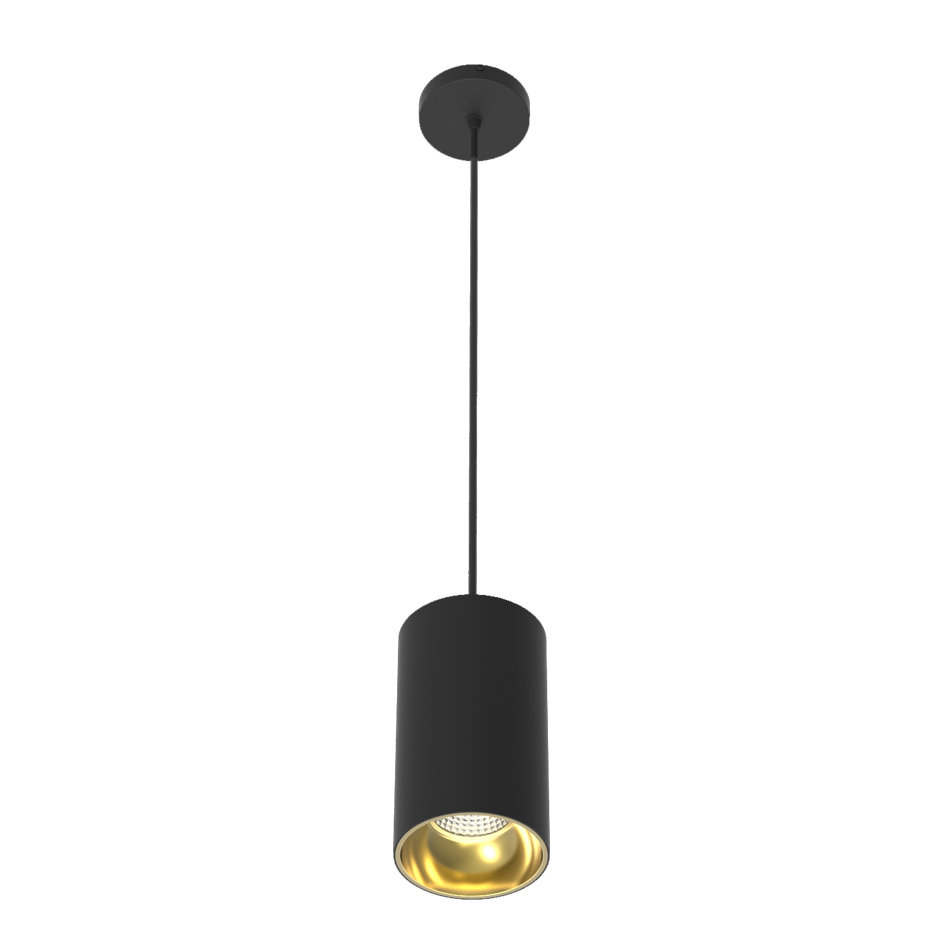

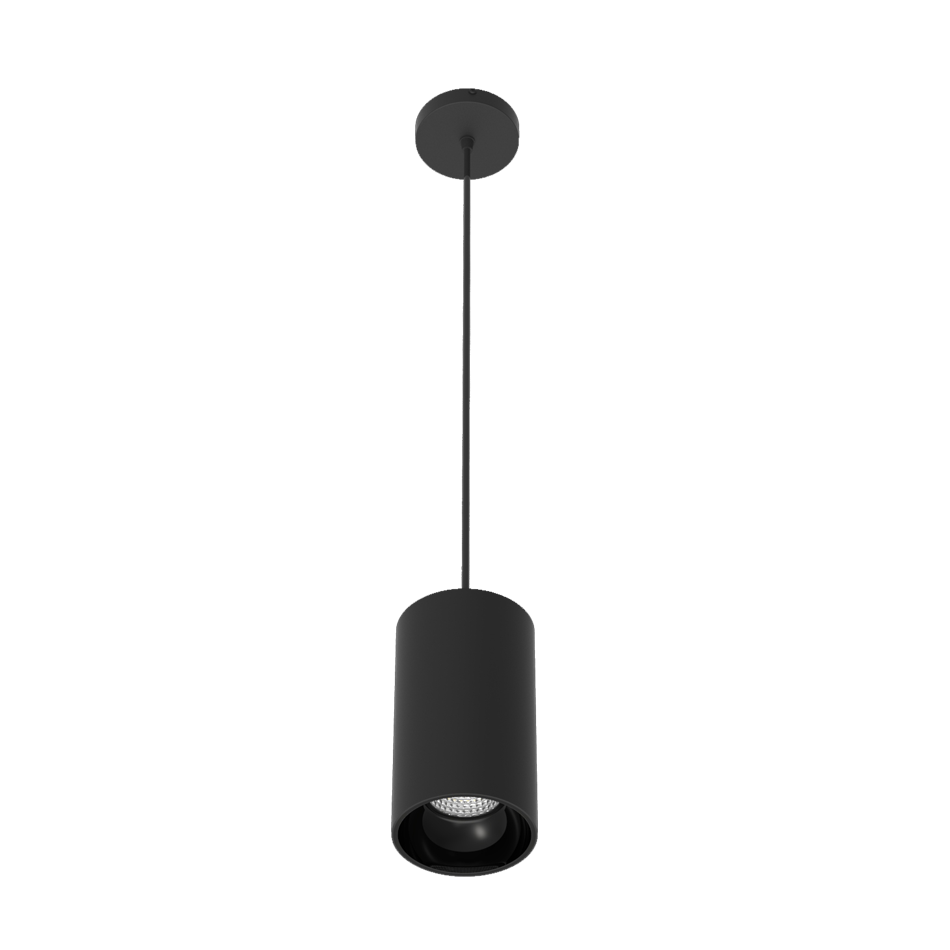

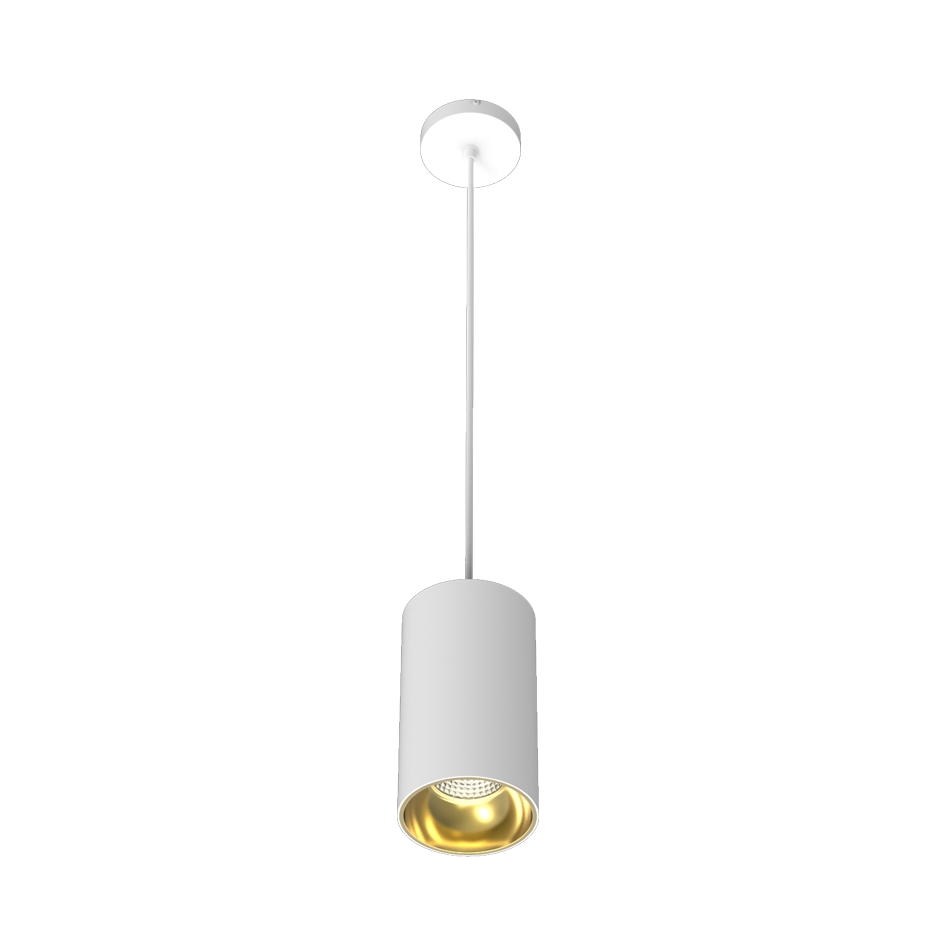

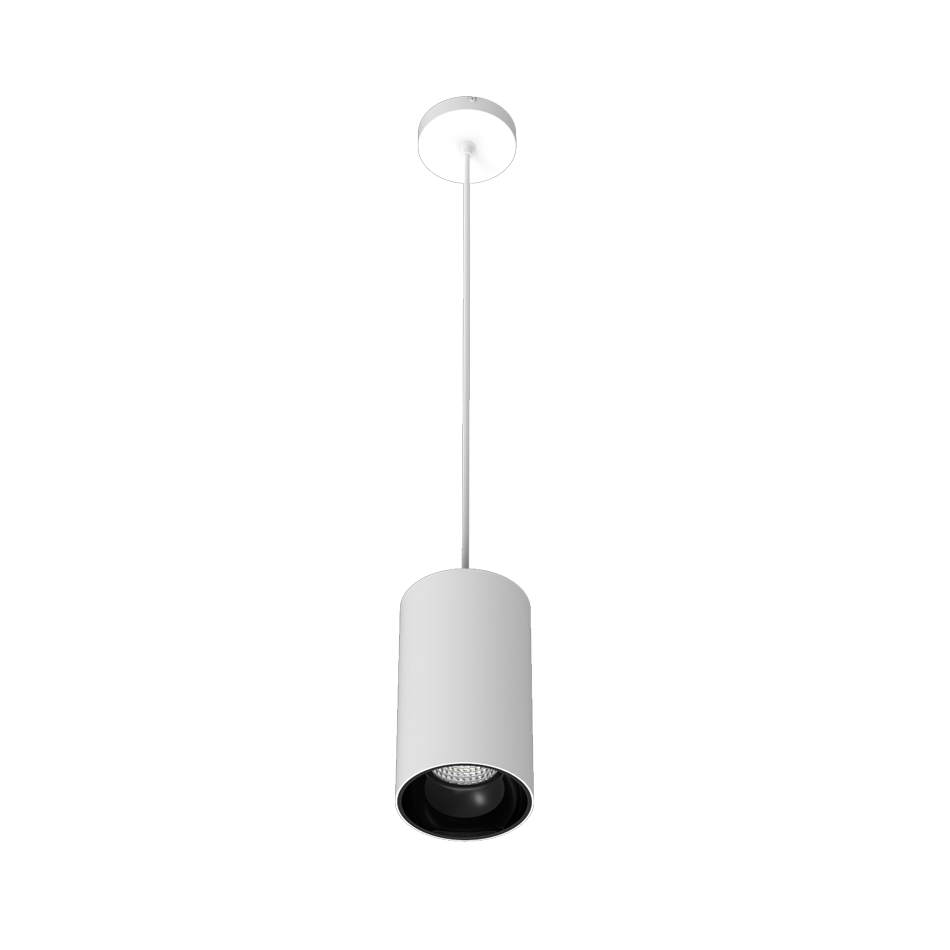

| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | <1% |
| Protective Class | SELV |
| Impact Resistance (IK) | IK07 |
| Warranty | 5 Years |
| Certification | CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.94 |
| Parasitic Load | 0.08W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | EOF | Emergency Lumen Output |
|---|---|---|
| 945 lm | 31% | 290 lm |
| 1445 lm | 20% | 289 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
