Vox 500

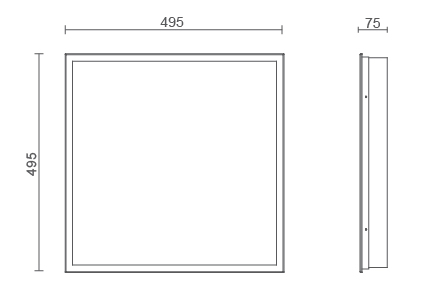

Product Overview

The Vox is a modular back lit luminaire designed with variable configurations to fit any SAS or Burgess Ceiling.

The Vox is supplied with the latest Philips Fortimo LED boards and premium window driver allowing the luminaire to have a tuneable lumen output range from 2600 to 4400lm. All Vox modular luminares are supplied as SELV and therefore use a remote driver and emergency kit (if applicable).

The luminaire is constructed from white powder coated steel. Diffuser options consist of PMMA opal and Micro Prismatic

Clock Icon

More than 70,000 hours life span

'Plug and Play' No hard fixing

Easy install No remote components

Modular component build

Options

TypeOptionsCode

Ceiling Type*

*Custom available upon request

Currently unknown
T24/T15 Lift & Tilt
T15 with 4mm tegulation
T15 with 8mm tegulation
T15 with 16mm tegulation
T24 with 4mm tegulation
T24 with 8mm tegulation
T24 with 16mm tegulation
SAS120 metal tile
SAS150 metal tile
Burgess metal tile
Plasterboard ceiling
SAS330 (without gaskets)
SAS330 (with gaskets)

VX6/**
VX6/C1
VX6/T1
VX6/T2
VX6/T3
VX6/T4
VX6/T5
VX6/T6
VX6/M1
VX6/M2
VX6/M3
VX6/PB
VX6/S1
VX6/S2

Diffuser TypeFrosted Opal
Micro Prism
/F1
/P1
Colour Temperature3000K
4000K
6500K
Tunable White
/3K
/4K
/6K
/TW

Lumen Output*

*Custom available upon request

Currently unknown
2600lm
2700lm
2800lm
2900lm
3000lm
3100lm
3200lm
3300lm
3400lm
3500lm
3600lm
3700lm
3800lm
3900lm
4000lm
4100lm
4200lm
4300lm
4400lm
/****
2600
2700
2800
2900
3000
3100
3200
3300
3400
3500
3600
3700
3800
3900
4000
4100
4200
4300
4400

Extras

TypeOptionsCode
DimmingDALI
Switch dim/Touch dim
Mains dimming
Casambi
-DA
-SD
-MD
-CA
Air Handling10 Litres / Second
20 Litres / Second
30 Litres / Second
40 Litres / Second
-A1
-A2
-A3
-A4
Integrated SensorPIR & daylight
Smart Mesh, PIR & daylight
Free issue sensor
-S1
-S2
-SF
Emergency3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Diffusers Options

Micro Prism

The micro prism diffuser eliminates glare by redirecting sideways light emission downwards, giving the luminaire a dimmer appearance when viewed from the side.

This diffuser type is therefore recommended when a very low UGR rating is required or if the luminaire is required to have a high lumen package and therefore needs optical control to remain UGR compliant.

Opal PMMA

The opal diffuser creates an homogeneous even light output whilst also remaining aesthetically even in appearance across its surface. Due to these characteristics the opal diffuser naturally creates a higher uniformity in interior spaces whilst increasing the amount of light on the walls & vertical surfaces in the spirit of LG7.

This diffuser is therefore recommended in spaces where high uniformity, vertical illuminance and LG7 performance is required.

Tunable White

The effect of light on our biological clock is important as it influences many aspects of our physical and emotional well-being. This biological clock is regulated by light and darkness, by the daily cycles of night and day and the time we spend asleep and awake.

In the morning, as the sun comes up, light levels increase, the colour of light shifts towards cooler colour temperatures, and we wake up and become active. On the other hand, in the evening, as the sun goes down and the colour of light shifts towards warmer colour temperatures, we unwind, relax and prepare for sleep.

Our body’s hormone levels rise and fall with these light cycles. Cortisol production increases with morning light and decreases throughout the course of the day. Melatonin levels increase as darkness sets in and decrease as morning approaches. In our modern society, we spend much of our time indoors – at home, in a school, office, shop or hospital. Those who have to stay indoors for significant parts of their time under static lighting conditions run the risk of disrupting their biological rhythms.

Standard & Bespoke Bezel Options

There are many standard bezel options to allow the luminaire to integrate into any ceiling type including plasterboard. Features also include allowing for a drop tegulation below the ceiling plane to match various ceiling tile products. RAL colour can also be specified to allow the Hornet to seamlessly match ceiling tile aesthetics.

Bespoke bezel options and luminaire sizes are also available upon request

Smart Programming

Using Premium LED drivers with window function, our luminaires can be preset (both Fixed Output & DALI versions) during the production process to a desired lumen output. This gives the versatility to reflect custom lumen packages used for project based lighting calculations.

Another benefit to this technology is post luminaire installation, the light output can be adjusted to increase/decrease from its original setting. This could be in the instance of a rentable space (CAT A) becoming an occupied space (CAT B).

Lighting Data

Typical Lumen OutputsWattagell/cW
3523 lm22.1 W159.4 ll/cW
4456 lm28.0 W159.4 ll/cW
Light SourceCREE
SDCM3
 Longevity (L70/B10)60,000 hours
Colour Rendering82
UGR<19

Technical Data

IP RatingIP44
ConstructionFolded steel
PMMA diffuser
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting MethodRecessed
Protective ClassSELV
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <1%
Overvoltage Protection 320 V
In-rush Current 12 A
THD <10%
Power Factor 0.95
Parasitic Load 0.5W
Operating Temperature -25 +60°C

Emergency Data

Standard Lumen OutputBLFEmergency Lumen Output
942 lm27%254 lm
1043 lm22%259 lm
Emergency Duration3 Hours
Recharge Period24 Hours
Battery TypeLiFePO4 (Lithium Iron Phosphate)
Battery Pack3 x 3.2V 1.5Ah
Parasitic Load1.2W
Operating Tempertaure0 – 60°C
Power Efficiency95%
CertificationUKCA, CE, ROHS
