The Vox is a modular back lit luminaire designed with variable configurations to fit any SAS or Burgess Ceiling.
The Vox is supplied with the latest Philips Fortimo LED boards and premium window driver allowing the luminaire to have a tuneable lumen output range from 500 to 7000lm. All Vox modular luminares are supplied as SELV and therefore use a remote driver and emergency kit (if applicable).
The luminaire is constructed from white powder coated steel. Diffuser options consist of PMMA opal and Micro Prismatic
More than 70,000 hours life span
'Plug and Play' No hard fixing
Easy install No remote components
Modular component build
*Custom available upon request
T24/T15 Lift & Tilt
T15 with 4mm tegulation
T15 with 8mm tegulation
T15 with 16mm tegulation
T24 with 4mm tegulation
T24 with 8mm tegulation
T24 with 16mm tegulation
SAS120 metal tile
SAS150 metal tile
Burgess metal tile
SAS330 (without gaskets)
SAS330 (with gaskets)
|Diffuser Type||Frosted Opal|
*Custom available upon request
|Air Handling||10 Litres / Second|
20 Litres / Second
30 Litres / Second
40 Litres / Second
|Integrated Sensor||PIR & Daylight|
Smart Mesh, PIR & Daylight
|Emergency||3 Hour Facility|
3 Hour Self Test
3 Hour Central Test
The micro prism diffuser eliminates glare by redirecting sideways light emission downwards, giving the luminaire a dimmer appearance when viewed from the side.
This diffuser type is therefore recommended when a very low UGR rating is required or if the luminaire is required to have a high lumen package and therefore needs optical control to remain UGR compliant.
The opal diffuser creates an homogeneous even light output whilst also remaining aesthetically even in appearance across its surface. Due to these characteristics the opal diffuser naturally creates a higher uniformity in interior spaces whilst increasing the amount of light on the walls & vertical surfaces in the spirit of LG7.
This diffuser is therefore recommended in spaces where high uniformity, vertical illuminance and LG7 performance is required.
The effect of light on our biological clock is important as it influences many aspects of our physical and emotional well-being. This biological clock is regulated by light and darkness, by the daily cycles of night and day and the time we spend asleep and awake.
In the morning, as the sun comes up, light levels increase, the colour of light shifts towards cooler colour temperatures, and we wake up and become active. On the other hand, in the evening, as the sun goes down and the colour of light shifts towards warmer colour temperatures, we unwind, relax and prepare for sleep.
Our body’s hormone levels rise and fall with these light cycles. Cortisol production increases with morning light and decreases throughout the course of the day. Melatonin levels increase as darkness sets in and decrease as morning approaches. In our modern society, we spend much of our time indoors – at home, in a school, office, shop or hospital. Those who have to stay indoors for significant parts of their time under static lighting conditions run the risk of disrupting their biological rhythms.
The Hornet has many standard bezel options to allow the luminaire to integrate into any ceiling type including plasterboard. Features also include allowing for a drop tegulation below the ceiling plane to match various ceiling tile products. RAL colour can also be specified to allow the Hornet to seamlessly match ceiling tile aesthetics.
Bespoke bezel options and luminaire sizes are also available upon request.
Using Premium LED drivers with window function, our luminaires can be preset (both Fixed Output & DALI versions) during the production process to a desired lumen output. This gives the versatility to reflect custom lumen packages used for project based lighting calculations.
Another benefit to this technology is post luminaire installation, the light output can be adjusted to increase/decrease from its original setting. This could be in the instance of a rentable space (CAT A) becoming an occupied space (CAT B).
|Typical Lumen Outputs||Wattage||ll/cW|
|3702 lm||25.9 W||142.9 ll/cW|
|4104 lm||28.9 W||142.0 ll/cW|
|Rated Supply Voltage||220 – 240 V|
|AC Voltage Range||202 – 250 V|
|Mains Frequency||50/60 Hz|
|Output LF current ripple @ 3kHz (Flicker)||<4%|
|Overvoltage Protection||320 V|
|Dimming Range||1 – 100%|
|Operating Temperature||-25… +60 °C|
|Longevity (L70/B10)||70,000 hours|
|Colour Rendering (3 SDCM)||Ra>82|

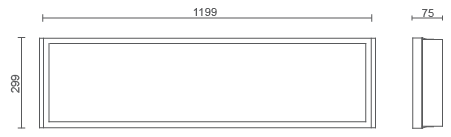

|Dimensions (Standard format)||299 x 1199 x 75mm|
|Lumen Output||BLF||Emergency Lumen Output|
|3702 lm||12%||444 lm|
|4104 lm||11%||451 lm|
|Emergency Duration||3 Hours|
|Recharge Period||24 Hours|
|Battery Type||LiFePO4 (Lithium Iron Phosphate)|
|Battery Pack||3 x 2.4V 2.5Ah|
|Operating Tempertaure||0 – 60°C|
