Stalk R

Product Overview

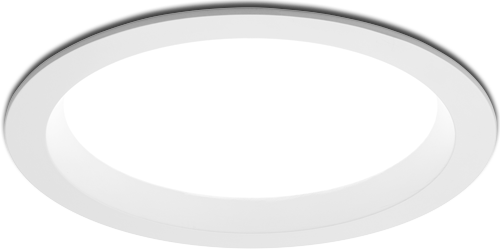

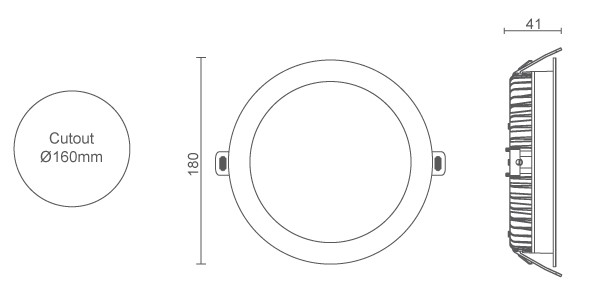

The Stalk R (Recessed Lens) is a Ø180mmm large area downlight. The downlight only requires 50mm of ceiling void making it ideal for installations where space is tight. .

The heatsink is made from die-cast aluminium which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes. The product is then retained in the ceiling by two sprung arms to allow for quick and easy installation.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen Output1809lm
2412lm
STK/R/1809
STK/R/2412
Colour Temperature3000K
4000K
6500K
/3K
/4K
/6K
Beam Angle90° Beam/90

Extras

TypeOptionsCode
DimmingDALI Dimming
Switch dim/Touch dim
Mains dimming
Casambi
-DA
-SD
-MD
-CA
Emergency3 Hour Facility
3 Hour Self Test
3 Hour Central Test

-E1
-E2
-E3

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

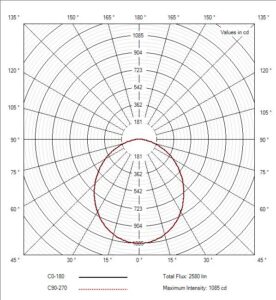

90° Beam Angle

Lighting Data

Lumen OutputWattagell/cW
1809 lm14.1 W128.3 ll/cW
2412 lm18.8 W128.3 ll/cW
Light SourceSMD
SDCM3
 Longevity (L70/B10)60,000 hours
Colour Rendering82
UGR<22

Technical Data

IP RatingIP54
ConstructionDiecast Aluminium
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting Method<1%
Protective ClassSELV
Impact Resistance (IK)IK04
Warranty5 Years
CertificationUKCA, CE, ROHS

Electrical Data

Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <1%
Overvoltage Protection 320 V
In-rush Current 12 A
THD <10%
Power Factor 0.95
Parasitic Load 0.5W
Operating Temperature -25 +60°C

Emergency Data

Standard Lumen OutputBLFEmergency Lumen Output
1809 lm20%359 lm
2412 lm15%359 lm
Emergency Duration3 Hours
Recharge Period24 Hours
Battery TypeLiFePO4 (Lithium Iron Phosphate)
Battery Pack3 x 3.2V 1.5Ah
Parasitic Load1.2W
Operating Tempertaure0 – 60°C
Power Efficiency95%
CertificationUKCA, CE, ROHS
