Ovis

Product Overview

The Ovis is a ‘scoop’ downlight with a 90° adjustable angle and 350° rotation. The downlight offers a wide uniform light distribution whilst keeping a minimalist architectural appearance. The Ovis is perfect for washing large sections of walls/columns or to highlight and accent wall art.

This luminaire is constructed from two die-cast parts – the heastsink and bezel. These components are held together at the point of articulation for ease of maintenance.

Clock Icon

More than 60,000 hours life span

colour wheel icon

Colour consistency with <3 SDCM

build icon

Assured build quality with die-cast based construction

5 icon

5 Year Warranty

Options

TypeOptionsCode
Lumen Output

1595lm
2126lm

OVS/1595
OVS/2126
Colour Temperature3000K
4000K
6500K
/3K
/4K
/6K
Beam Angle36° Beam/36

Extras

TypeOptionsCode
DimmingDALI Dimming
Switch dim/Touch dim
Mains dimming
Casambi
-DA
-SD
-MD
-CA
Emergency3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

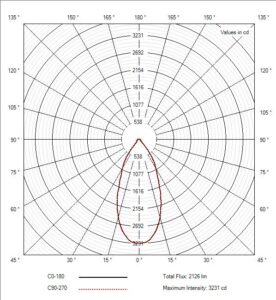

38° Beam Angle

Lighting Data

Lumen OutputWattagell/cW
1595 lm14.0 W113.9 ll/cW
2126 lm18.7 W112.2 ll/cW
Light SourceSMD
SDCM3
 Longevity (L70/B10)60,000 hours
Colour Rendering82
UGR<19

Technical Data

IP Rating IP54
Construction Diecast Aluminium
RAL Colour
(Other colours available upon special request)
RAL9016 (Standard)
RAL9010
RAL9005
Mounting Method Recessed
Protective Class SELV
Impact Resistance (IK) IK07
Warranty 5 Years
Certification UKCA, CE, ROHS

Electrical Data

Rated Supply Voltage220 – 240 V
AC Voltage Range198 – 264 V
Mains Frequency50/60 Hz
Output LF current ripple @ 120Hz (Flicker)<1%
Overvoltage Protection320 V
In-rush Current12 A
THD<10%
Power Factor0.95
Parasitic Load0.9W
Operating Temperature-25 +60°C

Emergency Data

Standard Lumen OutputBLFEmergency Lumen Output
1595 lm30%319 lm
2126 lm20%318 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
