Product Overview

The Ray is a Ø90mm small downlight for IP65 applications. The downlight has lumen packages of 840lm & 1,050lm. The product uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

The Ray uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 840lm
1050lm
RAY/840
RAY/1050
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 24° Beam
38° Beam
60° Beam
/24
/38
/60

Extras

Type Options Code
Dimming 1-10V Dimming
DALI Dimming
-110V
-DALI

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

24° Beam Angle
38° Beam Angle
60° Beam Angle

Performance

Lumen Output Wattage ll/cW
844 lm 9.2 W 91.7 ll/cW
1045 lm 11.6 W 90.1 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 1.2 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP65

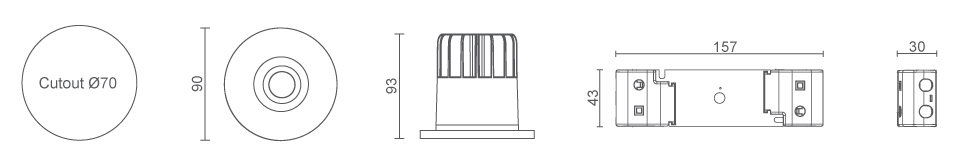

Cutout Ø70mm
Dimensions Ø90 x 93mm
Weight 1.2kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
844 lm 24% 203 lm
1045 lm 20% 209 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
