Product Overview

The Vipe P (Pin) is part of the Vipe anti-glare range of downlights. The Vipe range uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

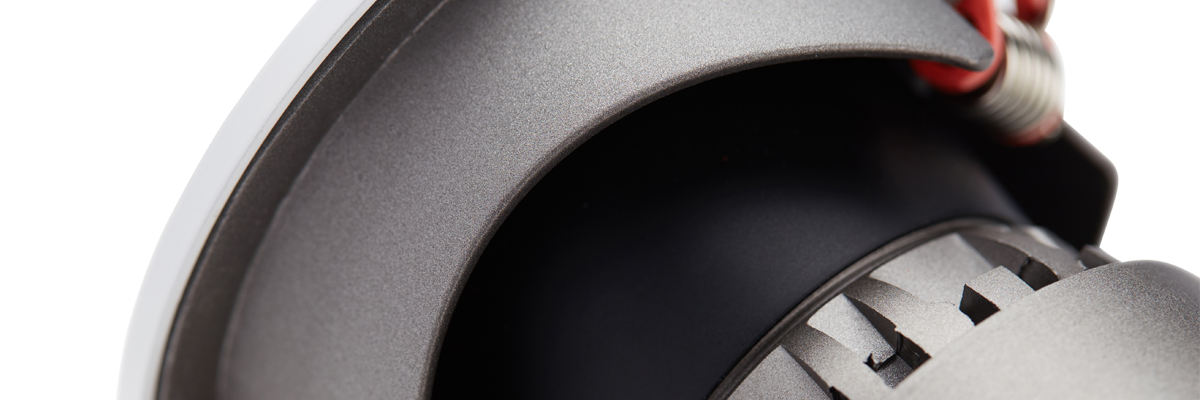

The Vipe P uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

The Vipe P is available in 640, 800, 960 & 1,200 lumen outputs.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 570lm
720lm
860lm
1080lm
VIP/P/570
VIP/P/720
VIP/P/860
VIP/P/1080
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 15° Beam
24° Beam
30° Beam
36° Beam
/15
/24
/30
/36

Extras

Type Options Code
Body Adjustable Tilt -ADJ
Dimming 1-10V Dimming
DALI Dimming
-110V
-DALI
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-EM
-EMST
-EMCT

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

15° Beam Angle
24° Beam Angle
30° Beam Angle
36° Beam Angle

Performance

Lumen Output Wattage ll/cW
574 lm 8.1 W 70.9 ll/cW
716 lm 10.2 W 70.2 ll/cW
861 lm 12.2 W 70.6 ll/cW
1,079 lm 15.3 W 70.5 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 14 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82

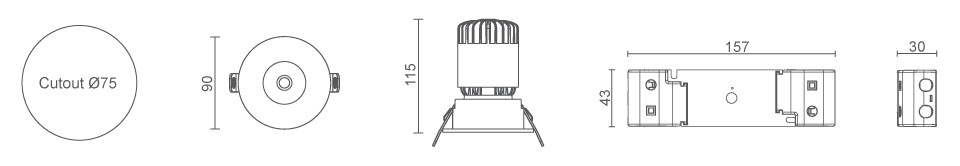

Cutout Ø75mm
Dimensions Ø90 x 115mm
Weight 1.5kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
574 lm 32% 184 lm
716 lm 25% 179 lm
861 lm 18% 155 lm
1,079 lm 17% 183 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
