Product Overview

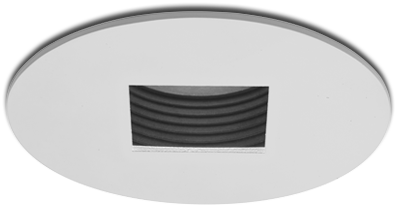

The Vipe S (Square) is part of the Vipe anti-glare range of downlights. The Vipe range uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

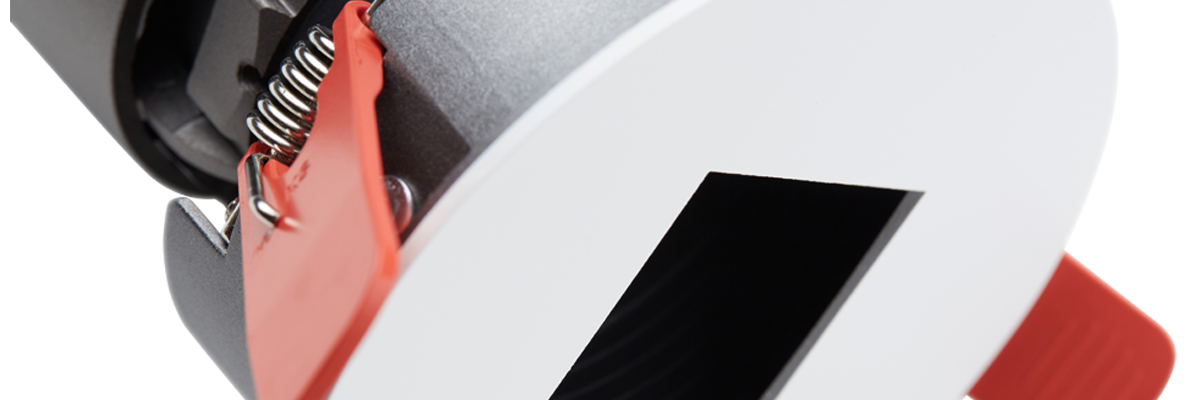

The Vipe S uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.
The Vipe S is available in 640, 800, 960 & 1,200 lumen outputs.
More than 50,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with
die-cast based construction
5 Year Warranty
Options
| Type | Options | Code |
|---|---|---|
| Lumen Output | 640lm 800lm 960lm 1200lm |
VIP/S/640 VIP/S/800 VIP/S/960 VIP/S/1200 |
| Colour Temperature | 3000K 4000K 5000K |
/3K /4K /5K |
| Beam Angle | 15° Beam 24° Beam 30° Beam 36° Beam |
/15 /24 /30 /36 |
Extras
| Type | Options | Code |
|---|---|---|
| Body | Adjustable Tilt | -ADJ |
| Dimming | 1-10V Dimming DALI Dimming |
-110V -DALI |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test |
-EM -EMST -EMCT |
Performance & Reliability
Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity
15° Beam Angle
24° Beam Angle
30° Beam Angle
36° Beam Angle
Performance
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 638 lm | 8.1 W | 77.8 ll/cW |
| 796 lm | 10.2 W | 78.0 ll/cW |
| 957 lm | 12.2 W | 78.4 ll/cW |
| 1,199 lm | 15.3 W | 78.4 ll/cW |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <5% |
| Overvoltage Protection | 320 V |
| In-rush Current | 14 A |
| THD | <10% |
| Dimming Range | 15 – 100% |
| Operating Temperature | -25… +60 °C |
| Colour Rendering | Ra>82 |

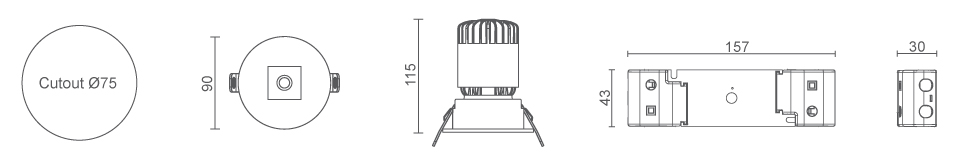

| Cutout | Ø75mm |
| Dimensions | Ø90 x 115mm |
| Weight | 1.5kg |
| Warranty | 5 Years |
| Certification | CE, ROHS |
Emergency
| Standard Lumen Output | BLF | Emergency Lumen Output |
|---|---|---|
| 638 lm | 32% | 204 lm |
| 796 lm | 25% | 199 lm |
| 957 lm | 18% | 172 lm |
| 1,199 lm | 17% | 203 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
