Product Overview

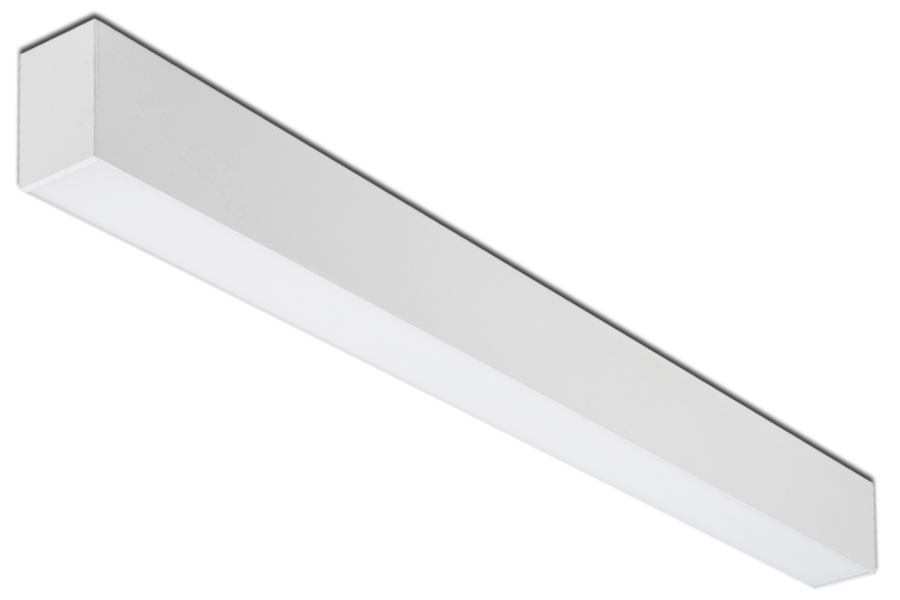

The Viper is a aluminium linear profile luminaire available in 607, 1207 & 1507mm lengths and can be supplied in downlight only or up & downlight configurations.
The linear profile can also be supplied in any RAL colour finish to suit it’s installation environment with a custom lead length. Both the uplight and downlight components of the Viper use Philips rigid LED boards and drivers ensuring a 5 year warranty and a longevity of at least 50,000 hours.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
aluminium extruded construction

5 Year Warranty
Options
Type | Options | Code |
---|---|---|
Lumen Output (Up & Down) | 600mm – 2703lm 1200mm – 5340lm 1500mm – 6520lm |
VIP/6/2703 VIP/12/5340 VIP/15/6520 |
Colour Temperature | 3000K 4000K 6500K |
/3K /4K /6K |

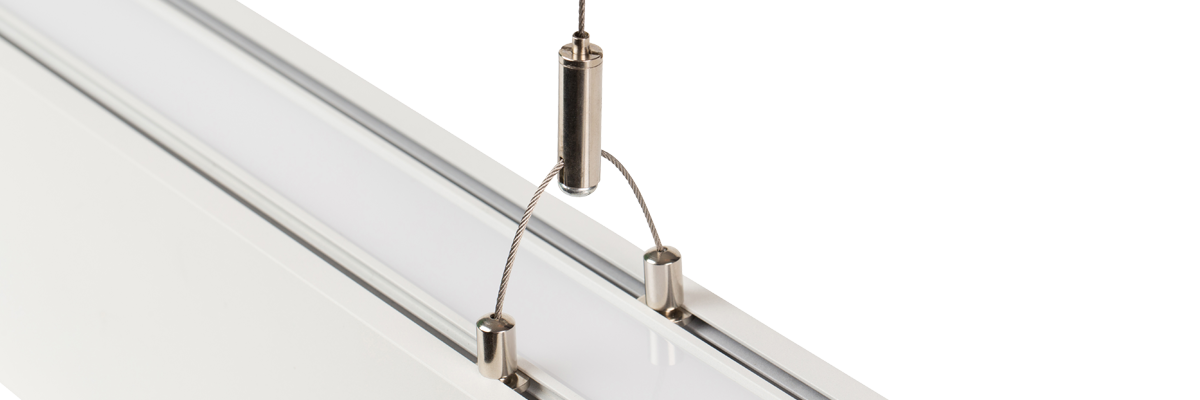

Mounting | Suspended | /SUS |
Extras
Type | Options | Code |
---|---|---|
Dimming | 1-10V Dimming DALI Dimming |
-110V -DALI |
Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test |
-EM -EMST -EMCT |
Performance & Reliability
Supplied with high performance Philips LED engine to ensure an outstanding performance with longevity

60% DLOR


Performance
Lumen Output | Wattage | ll/cW |
---|---|---|
5340 lm | 60.1 W | 88.6 ll/cW |
6520 lm | 75.1 W | 86.8 ll/cW |
Rated Supply Voltage | 220 – 240 V |
AC Voltage Range | 202 – 250 V |
Mains Frequency | 50/60 Hz |
Output LF current ripple @ 120Hz (Flicker) | <10% |
Overvoltage Protection | 320 V |
THD | <10% |
Dimming Range | 1 – 100% |
Operating Temperature | -25… +60 °C |
Longevity | 50,000 hours |
UGR Rating | <19 |
Colour Rendering | Ra>82 |

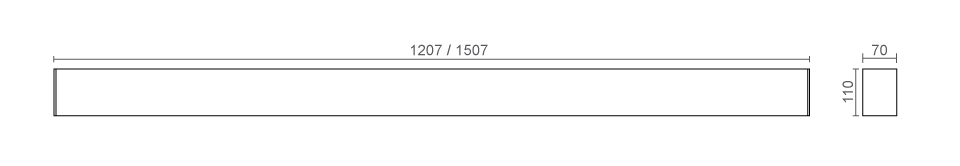

Dimensions | 70 x 110 x 1207/1507mm |
Fixing Centres | Variable |
Weight | 6.2/7.5kg |
Warranty | 5 Years |
Certification | CE, ROHS |
Emergency
Standard Lumen Output | BLF | Emergency Lumen Output |
---|---|---|
5340 lm | 10% | 534 lm |
6520 lm | 8% | 522 lm |
Emergency Duration | 3 Hours |
Recharge Period | 24 Hours |
Battery Type | LiFePO4 (Lithium Iron Phosphate) |
Battery Pack | 3 x 2.4V 2.5Ah |
Parasitic Load | 1.2W |
Operating Tempertaure | 0 – 60°C |
Power Efficiency | 95% |
Certification | CE, ROHS |
