Product Overview

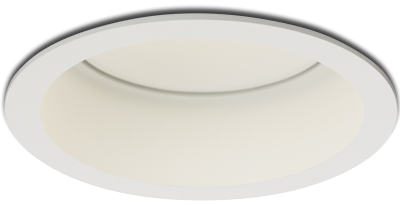

The Wolf is a Ø90mm downlight with a textured anti-glare bezel and adjustable tilt. The downlight has a lumen package of 910lm and uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

The Wolf uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 910lm WLF/910
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 24° Beam
36° Beam
60° Beam
/24
/36
/60

Extras

Type Options Code
Dimming 1-10V Dimming
DALI Dimming
-110V
-DALI

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

24° Beam Angle
36° Beam Angle
60° Beam Angle

Performance

Lumen Output Wattage ll/cW
912 lm 10.2 W 89.4 ll/cW

Technical

Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 1.5 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82

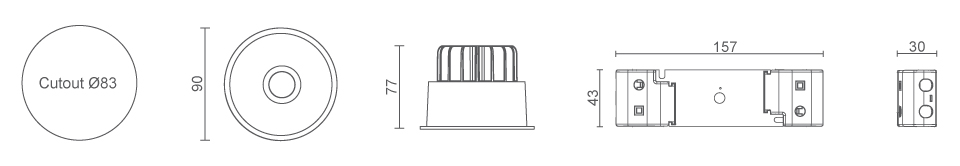

Cutout Ø83mm
Dimensions Ø90 x 77mm
Weight 0.85kg
Warranty 5 Years
Certification CE, ROHS
