Product Overview

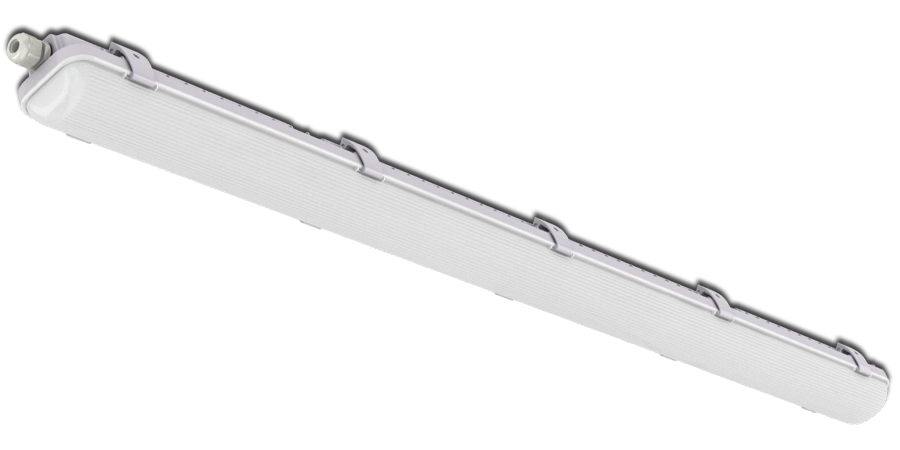

The Anura is a 1200mm IP65 rated linear surface or suspended luminaire often referred to to as a ‘Vapour Proof’. The product is supplied surface mounted as standard and can be supplied with an optional suspension kit. The Anura can have a lumen package of upto 4,300lm with a longevity of at least 50,000 hours.

Due to its polycarbonate moulded construction the IP65 luminaire also has an IK08 impact rating making it suitable for industrial, car parks as well as ancillary areas. The fitting is also available with options such as full or part frosted diffuser and polycarbonate or stainless steel diffuser clips to suit the installation environment.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
polycarbonate moulded construction

5 Year Warranty

Options

Type Options Code
Lumen Output & Diffuser 3940lm (Frosted)
4290lm (Part Frosted)
ANA/3940/F
ANA/4290/PF
Colour Temperature 3000K
4000K
6500K
/3K
/4K
/6K
Mounting Surface
Suspended
/SFC
/SUS

Extras

Type Options Code
Diffuser Clips Stainless Steel -SSC
Dimming 1-10V Dimming
DALI Dimming
-110V
-DALI
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-EM
-EMST
-EMCT

Performance & Reliability

Supplied with high performance Samsung LED engine to ensure an outstanding performance with longevity

120° Beam Angle

Performance

Lumen Output Wattage ll/cW
3942 lm 40.4 W 97.6 ll/cW
4293 lm 40.4 W 106.3 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 202 – 250 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <10%
Overvoltage Protection 320 V
THD <20%
Dimming Range 1 – 100%
Operating Temperature -25… +60 °C
Longevity 50,000 hours
UGR Rating  <21
IK Rating  IK08
IP Rating  IP65
Colour Rendering Ra>82

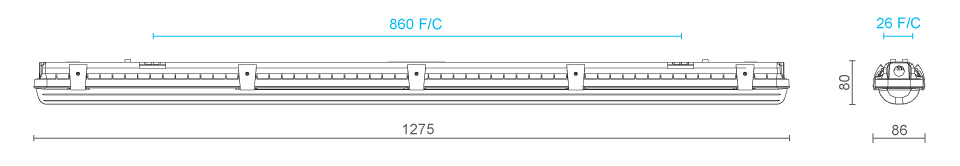

Dimensions 1275 x 86 x 80mm
Fixing Centres 860 x 26mm
Weight 1.5kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
3942 lm 20% 788 lm
4293 lm 20% 859 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type NiMH (Nickel-Metal Hydride)
Battery Pack 4 x 2.0V 4.0Ah
Parasitic Load 1.5W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS

Downloads

Datasheet

Photometrics
