Product Overview

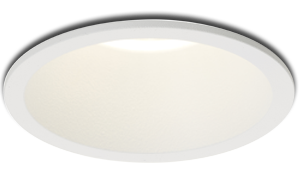

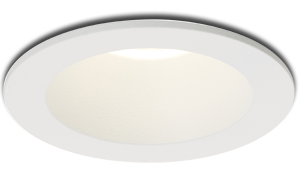

The Echo is a Ø70mm mini downlight with a textured anti-glare bezel. The mini downlight has lumen packages of 420lm & 530lm making it perfect for accenting with soft light. The white bezel gives a minimal appearances due to its deep recessed lens. The Echo uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

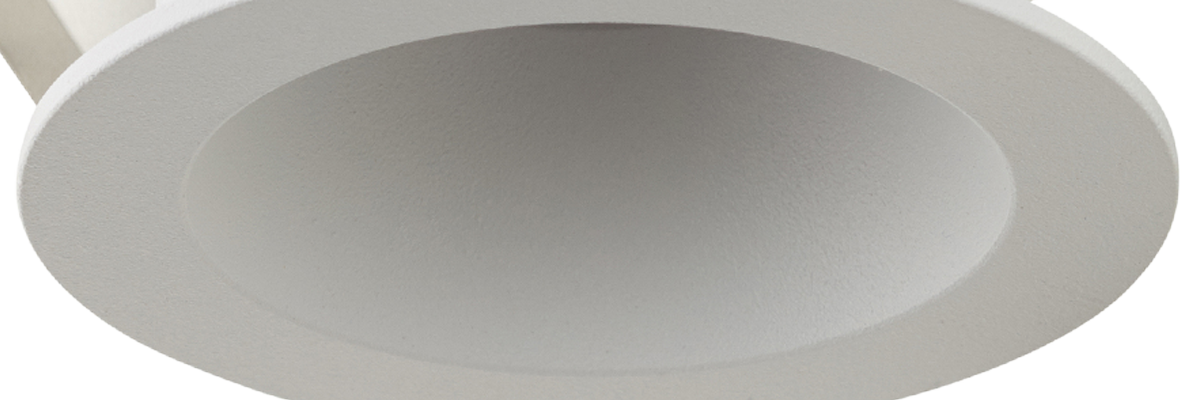

The Echo uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 420lm
530lm
ECH/420
ECH/530
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 25° Beam
36° Beam
45° Beam
60° Beam
/25
/36
/45
/60

Extras

Type Options Code
Dimming DALI Dimming -DA

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

25° Beam Angle
36° Beam Angle
45° Beam Angle
60° Beam Angle

Performance

Lumen Output Wattage ll/cW
422 lm 5.1 W 82.7 ll/cW
534 lm 6.5 W 82.2 ll/cW

Technical

Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 1.5 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP54

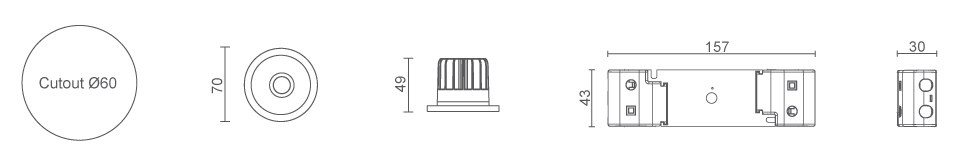

Cutout Ø60mm
Dimensions Ø70 x 49mm
Warranty 5 Years
Certification CE, ROHS
