Product Overview

The Exo is a Ø180mmm large area downlight. The downlight only requires 60mm of ceiling void making it ideal for installations where space is tight. The Exo can achieve a lumen package of upto 2200lm with a longevity of at least 50,000 hours.

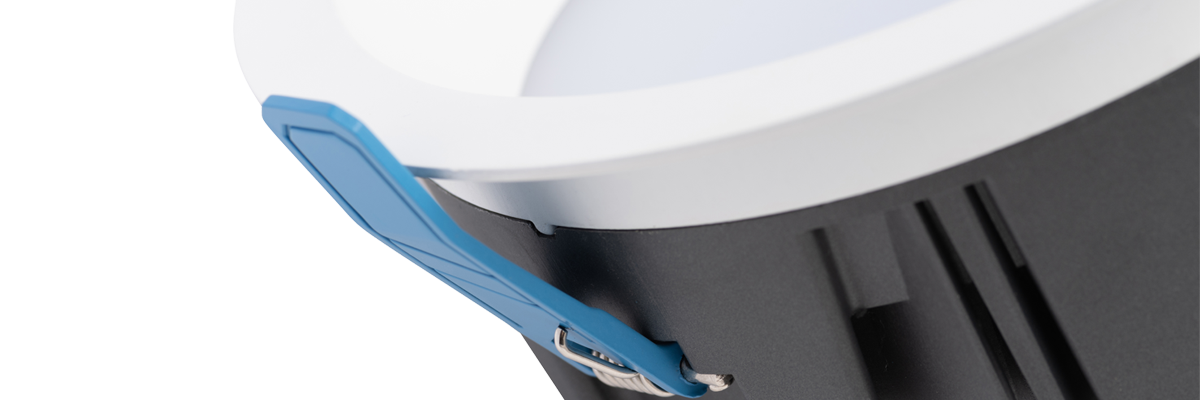

The heatsink is made from die-cast aluminium which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes. The product is then retained in the ceiling by two sprung arms to allow for quick and easy installation.

The Exo is available in 1640 & 2200 lumen outputs.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 1640lm
2200lm
EXO/1640
EXO/2200
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 90° Beam /90

Extras

Type Options Code
Dimming DALI Dimming -DA
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

90° Beam Angle

Performance

Lumen Output Wattage ll/cW
1660 lm 14.8 W 112.2 ll/cW
2200 lm 19.8 W 111.1 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 14 A
THD <10%
Dimming Range 1 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP54

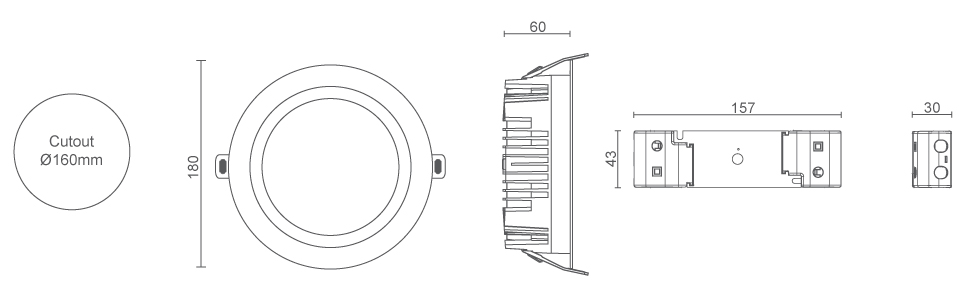

Cutout Ø160mm
Dimensions Ø180 x 60mm
Weight 1.9kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
1660 lm 17% 282 lm
2200 lm 13% 286 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
