Product Overview

The Gecko is a Ø300mm IP65 circular wall light with a depth of only 90mm. The luminaire has a lumen package of 1,600lm with a longevity of at least 50,000 hours.

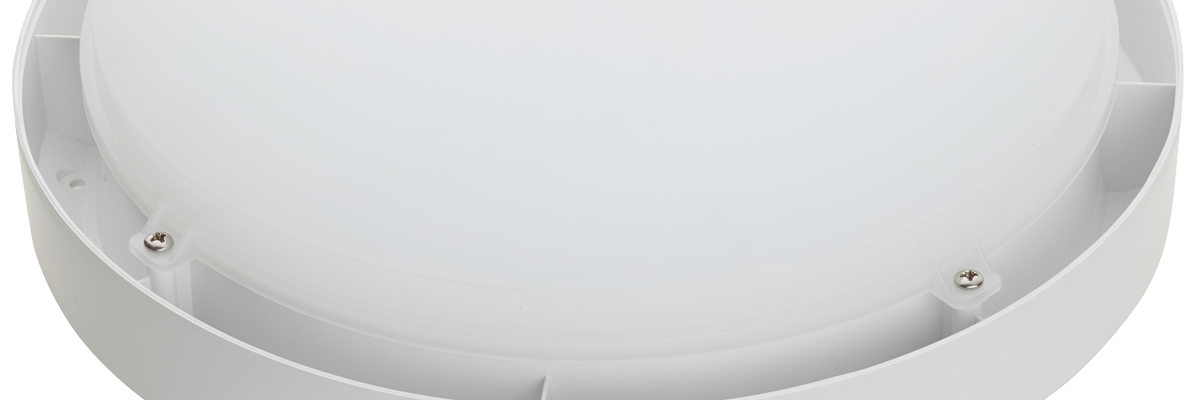

The body is constructed from polycarbonate which house the opal diffuser. Because of this the Gecko also achieves an impact rating of IK08. The bezel of the product also has a fixingless appearance due to the sub-assembly construction.

The Gecko is available with emergency and integrated microwave sensor options.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 1600lm GEK/1600
Colour Temperature 3000K
4000K
6000K		 /3K
/4K
/6K

Extras

Type Options Code
Colour Black Finish
Grey Finish		 +BLK
+GRY
Dimming DALI Dimming +DALI
Sensor Microwave Sensor +MWS
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test		 +EM
+EMST
+EMCT

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

120° Beam Angle

Performance

Lumen Output Wattage ll/cW
1,602 lm 19.8 W 80.9 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <10%
Overvoltage Protection 320 V
In-rush Current 5 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP65
IK Rating IK08

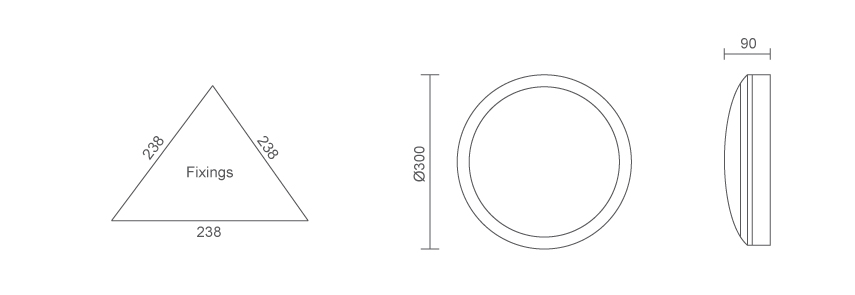

Fixing Centres (see diagram) 238 x 238 x 238mm
Dimensions Ø300 x 90mm
Weight 2.1kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
1,602 lm 17% 272 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type Li-ion (Lithium Iron Phosphate)
Battery Pack 1 x 3.7V 2.2Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS

Downloads

Datasheet

Photometrics
