Product Overview

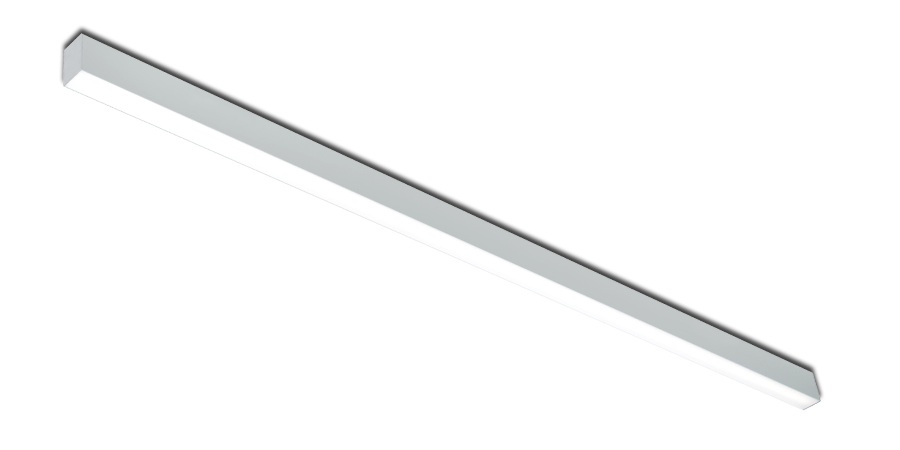

The Jaguar Direct is a linear luminaire which can be supplied in continuous lengths of 70mm increments. Continuous lengths of multiple runs come as standard with a ‘through wiring’ loom meaning that only the start module of the run requires termination.
The Jaguar Direct luminaire is built in a modular system for ease of installation and maintenance. All the electronic gear and wiring is housed on a removable gear tray separate from the main body and retained by sprung metal clips.
This product uses the latest generation 5 (ADV5) Tridonic boards to ensure maximum performance and efficiency.
The Jaguar Direct can be supplied in either surface or suspended formats.
More than 50,000 hours life span
Colour consistency with <3 SDCM
Custom lengths available
5 Year Warranty
Options
| Type | Options | Code |
|---|---|---|
| Direct Only | Standalone Start Middle End Corner Cross |
JAG/D/0 JAG/D/1 JAG/D/2 JAG/D/3 JAG/D/4 JAG/D/5 |
Lengths
| Standalone | Code |
|---|---|
| 574mm (1630lm) | 0/574/1630 |
| 644mm (1840lm) | 0/644/1840 |
| 714mm (2060lm) | 0/714/2060 |
| 784mm (2270lm) | 0/784/2270 |
| 854mm (2490lm) | 0/854/2490 |
| 924mm (2700lm) | 0/924/2700 |
| 994mm (2920lm) | 0/994/2920 |
| 1064mm (3130lm) | 0/1064/3130 |
| 1134mm (3250lm) | 0/1134/3250 |
| 1204mm (3470lm) | 0/1204/3470 |
| 1274mm (3680lm) | 0/1274/3680 |
| 1344mm (3900lm) | 0/1344/3900 |
| 1414mm (4110lm) | 0/1414/4110 |
| 1484mm (4330lm) | 0/1484/4330 |
| 1554mm (4540lm) | 0/1554/4540 |
| 1624mm (4760lm) | 0/1624/4760 |
| 1694mm (4880lm) | 0/1694/4880 |
| 1764mm (5090lm) | 0/1764/5090 |
| 1834mm (5310lm) | 0/1834/5310 |
| 1904mm (5520lm) | 0/1904/5520 |
| 1974mm (5740lm) | 0/1974/5740 |
| 2044mm (5950lm) | 0/2044/5950 |
| 2114mm (6170lm) | 0/2114/6170 |
| 2184mm (6380lm) | 0/2184/6380 |
| 2254mm (6500lm) | 0/2254/6500 |
| Start | Code |
|---|---|
| 568mm (1630lm) | 1/568/1630 |
| 638mm (1840lm) | 1/638/1840 |
| 708mm (2060lm) | 1/708/2060 |
| 778mm (2270lm) | 1/778/2270 |
| 848mm (2490lm) | 1/848/2490 |
| 918mm (2700lm) | 1/918/2700 |
| 988mm (2920lm) | 1/988/2920 |
| 1058mm (3130lm) | 1/1058/3130 |
| 1128mm (3250lm) | 1/1128/3250 |
| 1198mm (3470lm) | 1/1198/3470 |
| 1268mm (3680lm) | 1/1268/3680 |
| 1338mm (3900lm) | 1/1338/3900 |
| 1408mm (4110lm) | 1/1408/4110 |
| 1478mm (4330lm) | 1/1478/4330 |
| 1548mm (4540lm) | 1/1548/4540 |
| 1618mm (4760lm) | 1/1618/4760 |
| 1688mm (4880lm) | 1/1688/4880 |
| 1758mm (5090lm) | 1/1758/5090 |
| 1828mm (5310lm) | 1/1828/5310 |
| 1898mm (5520lm) | 1/1898/5520 |
| 1968mm (5740lm) | 1/1968/5740 |
| 2038mm (5950lm) | 1/2038/5950 |
| 2108mm (6170lm) | 1/2108/6170 |
| 2178mm (6380lm) | 1/2178/6380 |
| 2248mm (6500lm) | 1/2248/6500 |
| Middle | Code |
|---|---|
| 560mm (1630lm) | 2/560/1630 |
| 630mm (1840lm) | 2/630/1840 |
| 700mm (2060lm) | 2/700/2060 |
| 770mm (2270lm) | 2/770/2270 |
| 840mm (2490lm) | 2/840/2490 |
| 910mm (2700lm) | 2/910/2700 |
| 980mm (2920lm) | 2/980/2920 |
| 1050mm (3130lm) | 2/1050/3130 |
| 1120mm (3250lm) | 2/1120/3250 |
| 1190mm (3470lm) | 2/1190/3470 |
| 1260mm (3680lm) | 2/1260/3680 |
| 1330mm (3900lm) | 2/1330/3900 |
| 1400mm (4110lm) | 2/1400/4110 |
| 1470mm (4330lm) | 2/1470/4330 |
| 1540mm (4540m) | 2/1540/4540 |
| 1610mm (4760lm) | 2/1610/4760 |
| 1680mm (4880lm) | 2/1680/4880 |
| 1750mm (5090lm) | 2/1750/5090 |
| 1820mm (5310lm) | 2/1820/5310 |
| 1890mm (5520lm) | 2/1890/5520 |
| 1960mm (5740lm) | 2/1960/5740 |
| 2030mm (5950lm) | 2/2030/5950 |
| 2100mm (6170lm) | 2/2100/6170 |
| 2170mm (6380lm) | 2/2170/6380 |
| 2240mm (6500lm) | 2/2240/6500 |
| End | Code |
|---|---|
| 568mm (1630lm) | 1/568/1630 |
| 638mm (1840lm) | 1/638/1840 |
| 708mm (2060lm) | 1/708/2060 |
| 778mm (2270lm) | 1/778/2270 |
| 848mm (2490lm) | 1/848/2490 |
| 918mm (2700lm) | 1/918/2700 |
| 988mm (2920lm) | 1/988/2920 |
| 1058mm (3130lm) | 1/1058/3130 |
| 1128mm (3250lm) | 1/1128/3250 |
| 1198mm (3470lm) | 1/1198/3470 |
| 1268mm (3680lm) | 1/1268/3680 |
| 1338mm (3900lm) | 1/1338/3900 |
| 1408mm (4110lm) | 1/1408/4110 |
| 1478mm (4330lm) | 1/1478/4330 |
| 1548mm (4540lm) | 1/1548/4540 |
| 1618mm (4760lm) | 1/1618/4760 |
| 1688mm (4880lm) | 1/1688/4880 |
| 1758mm (5090lm) | 1/1758/5090 |
| 1828mm (5310lm) | 1/1828/5310 |
| 1898mm (5520lm) | 1/1898/5520 |
| 1968mm (5740lm) | 1/1968/5740 |
| 2038mm (5950lm) | 1/2038/5950 |
| 2108mm (6170lm) | 1/2108/6170 |
| 2178mm (6380lm) | 1/2178/6380 |
| 2248mm (6500lm) | 1/2248/6500 |
Extras
| Type | Options | Code |
|---|---|---|
| Colour Temperature | 3000K 4000K 6500K |
/3K /4K /6K |
| Dimming | DALI Dimming | -DA |
| Suspended Mounting | Suspension Kit & 2m Power Flex | -S |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test |
-E1 -E2 -E3 |
90° Beam Angle
Standard
| Lumen Ouput | Wattage | ll/cW |
|---|---|---|
| 578mm (1630lm) | 14.7 W/m | 110.8 ll/cW |
| 648mm (1840lm) | 16.6 W/m | 110.8 ll/cW |
| 718mm (2060lm) | 18.4 W/m | 111.9 ll/cW |
| 788mm (2270lm) | 20.3 W/m | 111.8 ll/cW |
| 858mm (2490lm) | 22.1 W/m | 112.6 ll/cW |
| 928mm (2700lm) | 24.0 W/m | 112.5 ll/cW |
| 998mm (2920lm) | 25.8 W/m | 113.1 ll/cW |
| 1068mm (3130lm) | 27.7 W/m | 112.9 ll/cW |
| 1138mm (3250lm) | 29.4 W/m | 110.5 ll/cW |
| 1208mm (3470lm) | 31.3 W/m | 110.8 ll/cW |
| 1278mm (3680lm) | 33.1 W/m | 111.1 ll/cW |
| 1348mm (3900lm) | 35.0 W/m | 111.4 ll/cW |
| 1418mm (4110lm) | 36.8 W/m | 111.6 ll/cW |
| 1488mm (4330lm) | 38.7 W/m | 111.8 ll/cW |
| 1588mm (4540lm) | 40.5 W/m | 112.0 ll/cW |
| 1628mm (4760lm) | 42.4 W/m | 112.2 ll/cW |
| 1698mm (4880lm) | 44.1 W/m | 110.6 ll/cW |
| 1768mm (5090lm) | 46.0 W/m | 110.6 ll/cW |
| 1838mm (5310lm) | 47.8 W/m | 111.0 ll/cW |
| 1908mm (5520lm) | 49.7 W/m | 111.0 ll/cW |
| 1978mm (5740lm) | 51.5 W/m | 111.4 ll/cW |
| 2048mm (5950lm) | 53.4 W/m | 111.4 ll/cW |
| 2118mm (6170lm) | 55.2 W/m | 111.7 ll/cW |
| 2188mm (6380lm) | 57.1 W/m | 111.7 ll/cW |
| 2258mm (6500lm) | 58.8 W/m | 110.5 ll/cW |
Emergency
| Lumen Ouput | BLF | Emergency Lumon Output |
|---|---|---|
| 578mm (1630lm) | 21% | 342 lm |
| 648mm (1840lm) | 20% | 326 lm |
| 718mm (2060lm) | 16% | 329 lm |
| 788mm (2270lm) | 15% | 340 lm |
| 858mm (2490lm) | 14% | 348 lm |
| 928mm (2700lm) | 12% | 324 lm |
| 998mm (2920lm) | 11% | 321 lm |
| 1068mm (3130lm) | 11% | 344 lm |
| 1138mm (3250lm) | 10% | 325 lm |
| 1208mm (3470lm) | 9% | 312 lm |
| 1278mm (3680lm) | 9% | 331 lm |
| 1348mm (3900lm) | 8% | 312 lm |
| 1418mm (4110lm) | 8% | 328 lm |
| 1488mm (4330lm) | 8% | 346 lm |
| 1588mm (4540lm) | 7% | 317 lm |
| 1628mm (4760lm) | 7% | 333 lm |
| 1698mm (4880lm) | 7% | 341 lm |
| 1768mm (5090lm) | 6% | 305 lm |
| 1838mm (5310lm) | 6% | 318 lm |
| 1908mm (5520lm) | 6% | 331 lm |
| 1978mm (5740lm) | 6% | 344 lm |
| 2048mm (5950lm) | 6% | 357 lm |
| 2118mm (6170lm) | 5% | 308 lm |
| 2188mm (6380lm) | 5% | 319 lm |
| 2258mm (6500lm) | 5% | 325 lm |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 202 – 250 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <10% |
| Overvoltage Protection | 320 V |
| THD | <20% |
| Dimming Range | 1 – 100% |
| Operating Temperature | -25… +60 °C |
| Longevity (L70 B10) | 72,000 hours |
| Typical UGR Rating | <19 |
| Colour Rendering | Ra>82 |

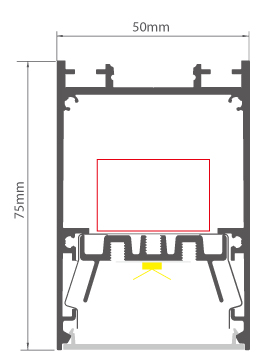

| Section Dimensions | 50 x 75mm |
| Weight | 4.8kg/m |
| Warranty | 5 Years |
| Certification | CE, ROHS |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 2.4V 2.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
