Product Overview

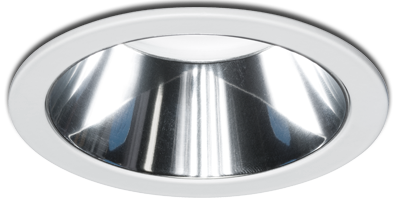

The Nero R Mini is part of the Nero family. It tackles glare by using a light source set back from the bezel whilst maximising light output with a specular aluminium reflector. The downlight body in fixed and adjustable body formats. The Nero R Mini uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

This luminaire is construction from two die-cast parts – the heastsink and bezel. These components are held together at the point of articulation for ease of maintenance.

The Nero R Mini is available in 820 & 1030 lumen outputs.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 820lm
1030lm
NER/R/M/820
NER/R/M/1030
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 36° Beam
60° Beam
/36
/60

Extras

Type Options Code
Dimming DALI Dimming -DA
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

36° Beam Angle

60° Beam Angle

Performance

Lumen Output Wattage ll/cW
824 lm 7.8 W 105.6 ll/cW
1031 lm 9.6 W 107.4 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 12 A
THD <10%
Dimming Range 1 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP54
Cutout Ø80mm
Dimensions Ø90 x 102mm
Weight 1.2kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
824 lm 27% 222 lm
1031 lm 22% 227 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
