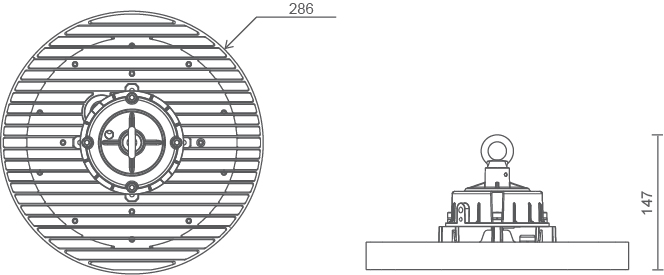

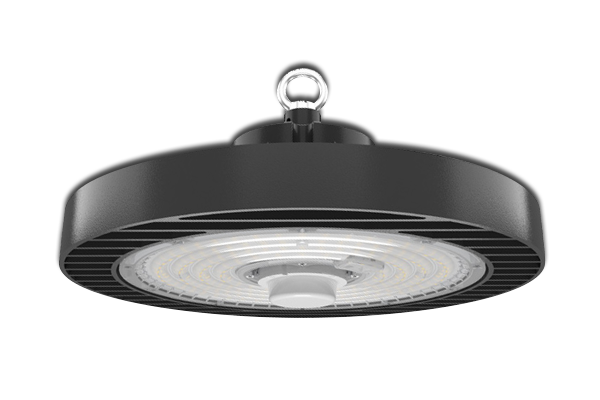

The Falcon Mini is a Ø286mm IP65 rated Highbay which can be supplied in surface or suspended formats. The cast aluminium body acts as a large thermal heatsink for the LED engine giving the luminaire a industrial finish.
Due to its polycarbonate & aluminium moulded construction the Falcon Mini also has an IK10 impact rating making it reliable in environments where damage might occur. The fitting is also available with 3 hour emergency packs and sensor options.
More than 50,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output & Diffuser | 14500lm 21000lm |
FAL/M/14500 FAL/M/21000 |
| Colour Temperature | 3000K 4000K 5000K |
/3K /4K /5K |
| Beam Angle | 60° 90° 110° |
/60 /90 /110 |
| Type | Options | Code |
|---|---|---|
| Mounting | Suspended | -S |
| Dimming | 1-10V Dimming DALI Dimming | -110V -DA |
| Sensor | Microwave Sensor | -MS |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance Lumileds LED engine and premium driver to ensure an outstanding performance with longevity.

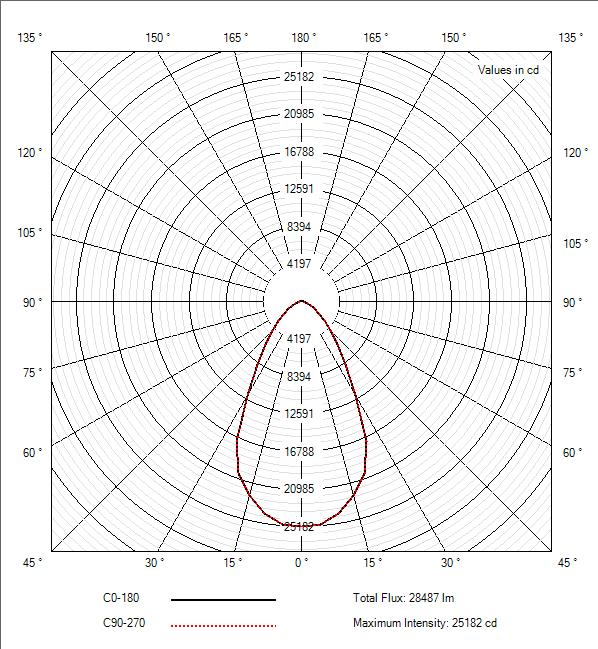

60° Beam Angle

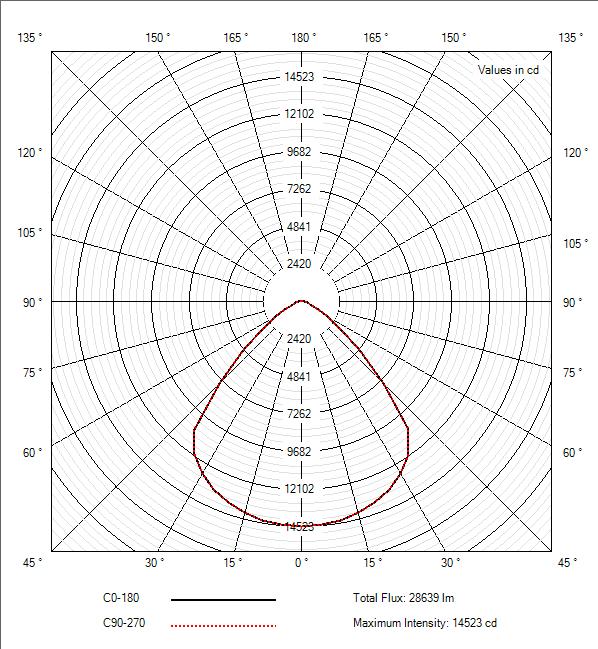

90° Beam Angle

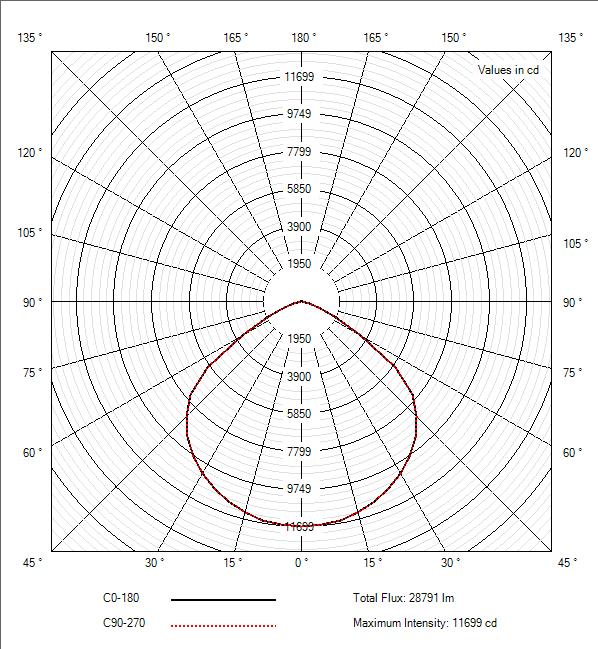

110° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 14,493 lm | 103.5 W | 140.0 ll/cW |
| 20,991 lm | 152.7 W | 137.5 ll/cW |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 109,000 hours |
| Colour Rendering | 82 |
| UGR | <22 |
| IP Rating | IP44 (Surface mounted) |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9005 |
| Mounting Method | Surface 2m Suspended |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK10 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 90 – 305 V |
| Mains Frequency | 47/63 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | >108% |
| In-rush Current | 65 A |
| THD | <20% |
| Power Factor | 0.95 |
| Parasitic Load | 7.9W |
| Operating Temperature | -40 +85°C |
| Standard Lumen Output | EOF | Emergency Lumen Output |
|---|---|---|
| 14,493 lm | 3% | 435 lm |
| 20,991 lm | 2% | 419 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 6.4V 6.0Ah |
| Parasitic Load | 1.5W |
| Operating Temperature | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | UKCA, CE, ROHS |
