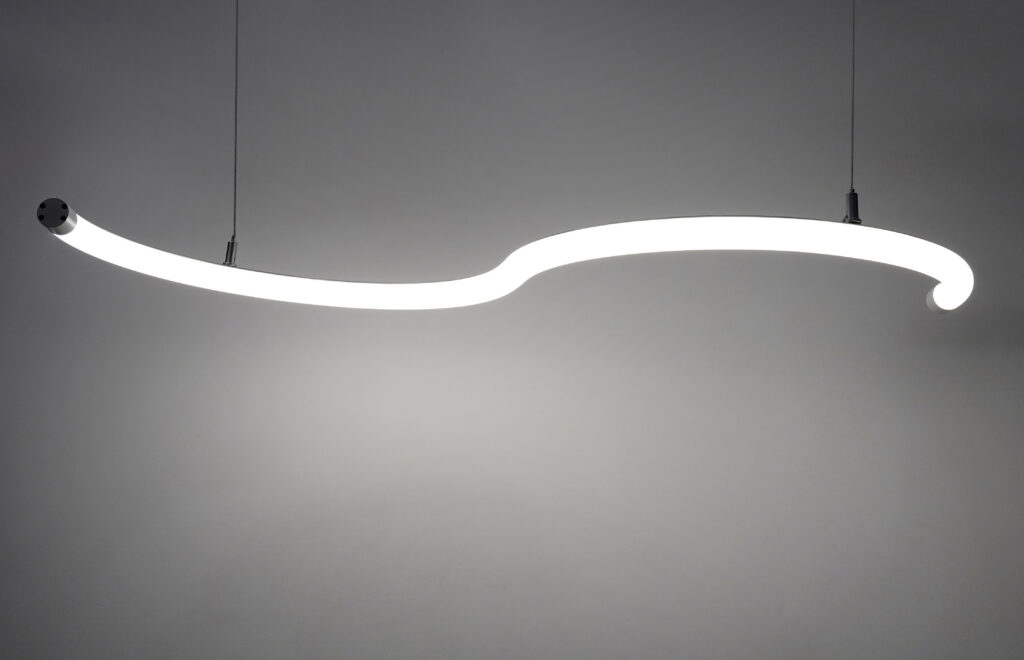

The Hades is a flexible, continuous 255° illuminated silicone tube with a pre-formed profile that allows fitting to be formed into customisable curved designs . The rope light has a diameter of only Ø25mm which allows for a minimum bend radius of 200mm. The rope light comes in 2500mm sections which can be joined to create a continuous fitting of any length.
The Hades comes with an assortment of accessories and fixing components to suit any project requirement. Please enquire for further information.
More than 50,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Product | Hades Ø25mm | HAD/25 |
| Length* | *Subject to design | /**** |
| Colour Temperature | 2700K 3000K 4000K 6000K RGB | /2.7K /3K /4K /6K /RGB |
| Type | Options | Code |
|---|---|---|
| Mounting | Suspended | -S |
| Dimming | DALI Dimming Switch dim/Touch dim Casambi dimming | -DA -SD -CA |
Supplied with high performance Lumileds LED engine and premium driver to ensure an outstanding performance with longevity.
360° Beam Angle
The Boa Rope Light offers unmatched versatility, making it the perfect choice for designers seeking bespoke format solutions. With its sleek,
minimalistic design and vibrant illumination, the Boa seamlessly integrates into any commercial or industrial setting, adding both functionality and aesthetic value.
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 1,340lm (1000mm, 4K) | 14.4W | 93.1 ll/cW |
| CCT | 2700K 3000K 4000K 6000K RGB |
| Beam Angle | 255° |
| Light Source | SMD |
| SDCM | 3 |
| Longevity (L70/B10) | 50,000 hours |
| Colour Rendering | RA>90 |
| UGR | <22 |
| IP Rating | IP20 |
| Construction | Aluminium Silicone |
| Colour | White |
| Mounting Method | Surface Suspended |
| Protective Class | SELV |
| Impact Resistance (IK) | IK10 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <5% |
| Overvoltage Protection | 320 V |
| In-rush Current | 7.5 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 0.9W |
| Operating Temperature | -25 +60°C |
