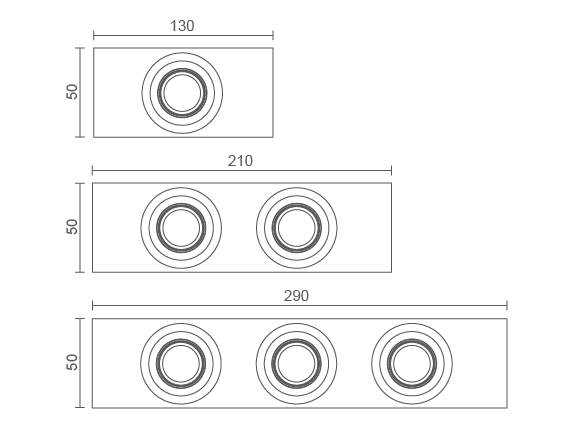

The Jaguar System Spot is mini downlight designed to be used in single, double and triple formats. This product is part of the Jaguar System range and cannot be used independently.
This luminaire is constructed from two die-cast parts – the heastsink and bezel. These components are easily maintainable within the System Profile.
The Jaguar System Spot is supplied in the same RAL finish as the system profile.
More than 60,000 hours life span
'Plug and Play' No hard fixing
Easy install No remote components
Modular component build
| Type | Options | Code |
|---|---|---|
| Lumen Output | 581lm | JAG/SYS/SPT/581 |
| Module | Single Twin Triple | /1 /2 /3 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 40° Beam | /40 |
| Type | Options | Code |
|---|---|---|
| Mounting | Recess mounted in Jaguar Profile as default | |
| Dimming | DALI Dimming Switch dim/Touch dim Casambi | -DA -SD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
40° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 581 lm | 6.6 W | 88.0 ll/cW |
| Light Source | CREE |
| SDCM | 3 |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP54 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Recessed in Python Profile |
| Protective Class | Class I |
| Impact Resistance (IK) | IK07 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <4% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.98 |
| Parasitic Load | 1.25W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | EOF | Emergency Lumen Output |
|---|---|---|
| 581 lm | 42% | 246 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
