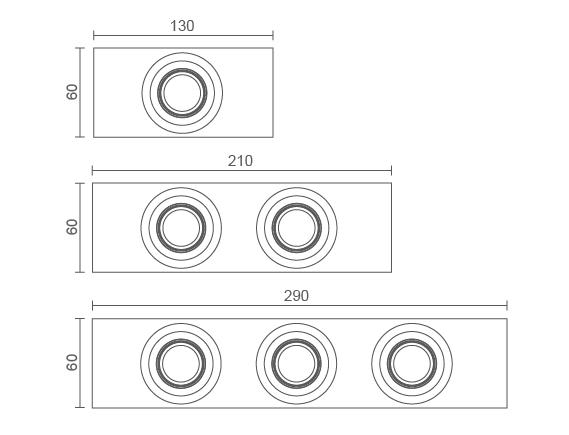

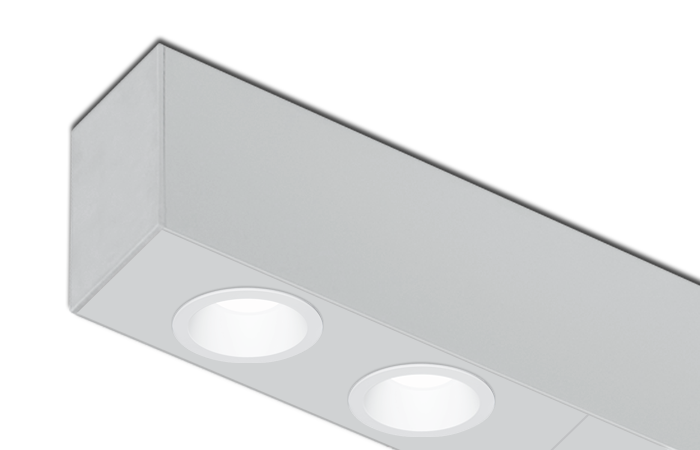

The Python Spot is a Ø50mm mini downlight used in Single, Twin and Triple formats within the Python Profile System.
Each downlight uses an anti-glare reflector and has a lumen package of 581lm/Spot making it perfect for accenting (Single) or as a main area light source (Triple).
The bezel is custom painted to match the Python Profile System colour to give a minimal appearance.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 581lm | PHY-SP/581 |
| Module | Single Twin Triple | /1 /2 /3 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Beam Angle | 40° Beam | /40 |
| Type | Options | Code |
|---|---|---|
| Mounting | Recess mounted in Python Profile as default | |
| Dimming | DALI Dimming Switch dim/Touch dim Casambi | -DA -SD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.

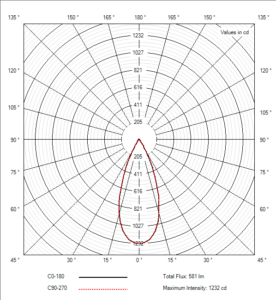

40° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 581 lm | 6.6 W | 88.0 ll/cW |
| Light Source | CREE |
| SDCM | 3 |
| Longevity (L70/B10) | 70,000 hours |
| Colour Rendering | 82 |
| UGR | <19 |
| IP Rating | IP54 |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Recessed in Python Profile |
| Protective Class | Class I |
| Impact Resistance (IK) | IK07 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <4% |
| Overvoltage Protection | 320 V |
| In-rush Current | 2.5 A |
| THD | <10% |
| Power Factor | 0.98 |
| Parasitic Load | 1.25W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | EOF | Emergency Lumen Output |
|---|---|---|
| 581 lm | 42% | 246 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
