Product Overview

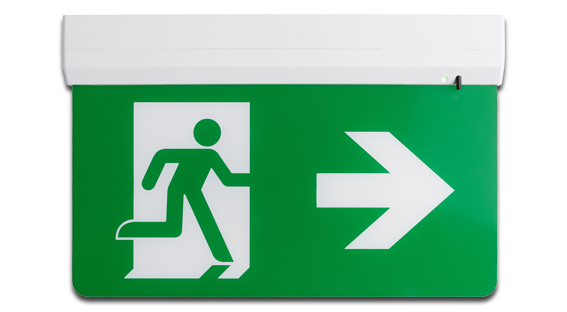

The Shield SFC (Surface) is a 3 Watt LED exit sign for use with solid ceilings. The SFC version has a minimal visual impact on the ceiling due to its compact and tidy appeareance. The unit is available in Maintained and Non-Maintained modes.

The unit utilises LiFePO4 (Lithium iron phosphate) battery technology which provides a far longer life than traditional battery types, making this an ideal product for difficult to maintain areas.

More than 50,000 hours life span

Easy installation process

Assured build quality with
die-cast based construction

5 Year Warranty
(Excluding battery)

Options

Type Options Code
Product Shield SHD
Mounting Option Surface /SFC
Operation Maintained
Non-Maintained
/M
/NM
Emergency 3 Hour Facility
3 Hour Self Test
/EM
/EMST

Options

Type Options Code
Arrow Direction Arrow Up
Arrow Down
Arrow Left/Right
-AUP
-ADN
-ALR

Performance & Reliability

Supplied LiFePO4 (Lithium iron phosphate) batteries for outstanding performance with longevity

Performance

Wattage 3W
Rated Supply Voltage 220 – 240 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 0.5 A
THD <10%
Operating Temperature 0-40°C
Fixing Centres 130mm

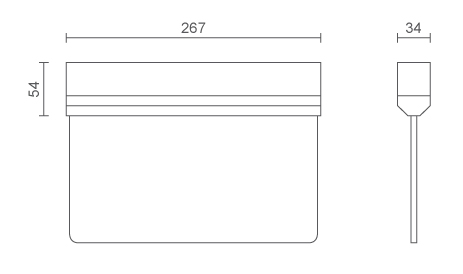

Dimensions (Excluding Sign) 267 x 34 x 54mm
Warranty 5 Years
Certification CE, ROHS

Emergency

Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium iron phosphate)
Battery Pack 3.2v 600mAh
