Product Overview

The Vulcan is a 190 x 190mm square large area downlight. The downlight only requires 60mm of ceiling void making it ideal for installations where space is tight. The Vulcan can achieve a lumen package of upto 1800lm with a longevity of at least 50,000 hours.

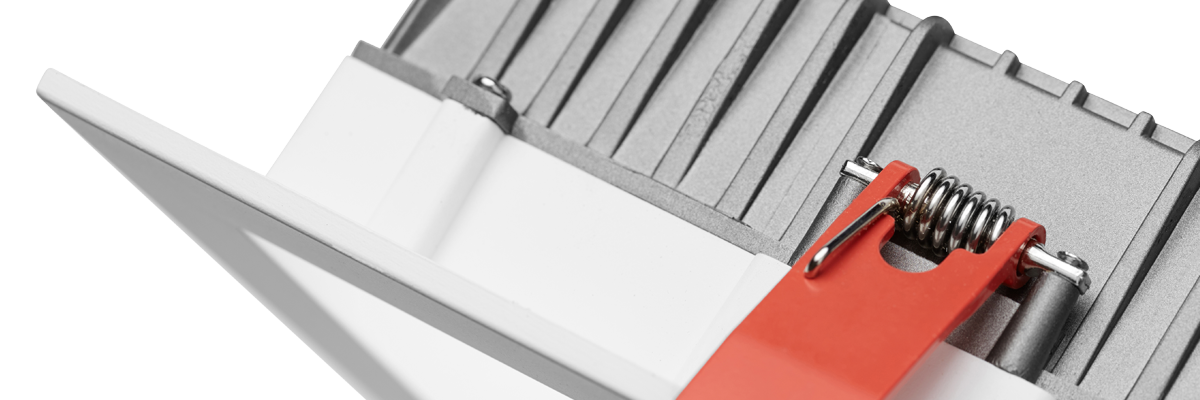

The heatsink is made from die-cast aluminium which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes. The product is then retained in the ceiling by two sprung arms to allow for quick and easy installation.

The Vulcan is available in 1270, 1805 & 2700 lumen outputs.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 1270lm
1810lm
2700lm
VLK/1270
VLK/1810
VLK/2700
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 90° Beam /90

Extras

Type Options Code
Dimming 1-10V Dimming
DALI Dimming
-110V
-DALI
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-EM
-EMST
-EMCT

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

90° Beam Angle

Performance

Lumen Output Wattage ll/cW
1271 lm 15.3 W 83.1 ll/cW
1805 lm 22.0 W 82.0 ll/cW
2697 lm 33.5 W 80.5 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 14 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP54

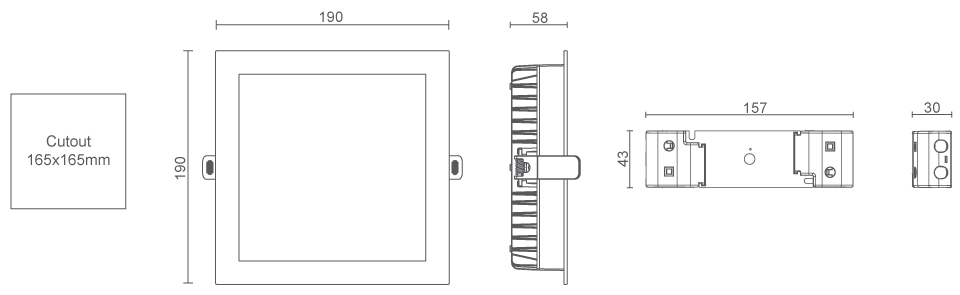

Cutout 165 x 165mm
Dimensions 190 x 190 x 58mm
Weight 2.1kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
1271 lm 17% 216 lm
1805 lm 13% 235 lm
2697 lm 8% 216 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
