Product Overview

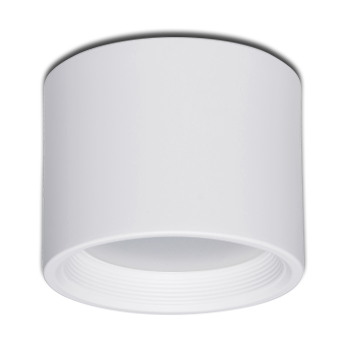

The Brevis D Mini (Diffuser) is a Ø130mm small downlight which can be surface (Standard) or suspended mounted. This luminaire can achieve lumen packages of 940lm, 1130lm & 1410lm with a longevity of at least 50,000 hours.

The heatsink is built into the body of the product which enables the downlight to run at cool temperatures without the common need for vents in the vertical walls. The Brevis D Mini therefore has a minimalist architectural appearance without any visible fixings and very light weight thanks to its aluminium construction.

The downlight also has an IP44 rating when surface mounted.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 940lm
1130lm
1410lm
BRE/D/M/940
BRE/D/M/1130
BRE/D/M/1410
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 90° Beam /90

Extras

Type Options Code
Mounting Suspended -S
Dimming DALI Dimming -DALI

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

90° Beam Angle

Performance

Lumen Output Wattage ll/cW
940 lm 10.2 W 92.2 ll/cW
1130lm 12.2 W 92.6 ll/cW
1410 lm 15.2 W 92.8 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 2.5 A
THD <10%
Dimming Range 1 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP44

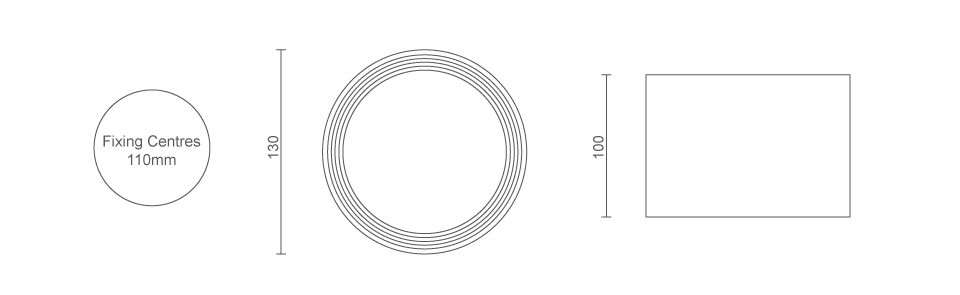

Surface Fixing 110mm
Suspended Fixing 110mm (2m Suspension Max)
Dimensions Ø130 x 100mm
Weight 2.2kg
Warranty 5 Years
Certification CE, ROHS
