Product Overview

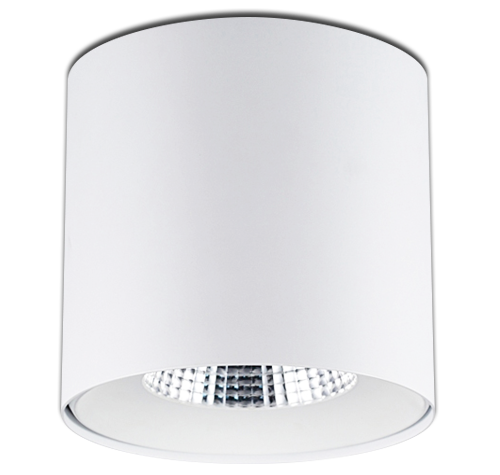

The Brevis R (Recessed Light Source) is a Ø200mmm large area downlight which can be surface (Standard) or suspended mounted. This luminaire can achieve lumen packages of 1,450 & 1,990lm with a longevity of at least 50,000 hours.

The heatsink is built into the body of the product which enables the downlight to run at cool temperatures without the common need for vents in the vertical walls. The Brevis D therefore has a minimalist architectural appearance without any visible fixings and very light weight thanks to its aluminium construction.

The downlight also has an IP44 rating when surface mounted.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 1450lm
1990lm
BRE/R/1450
BRE/R/1990
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 60° Beam /60

Extras

Type Options Code

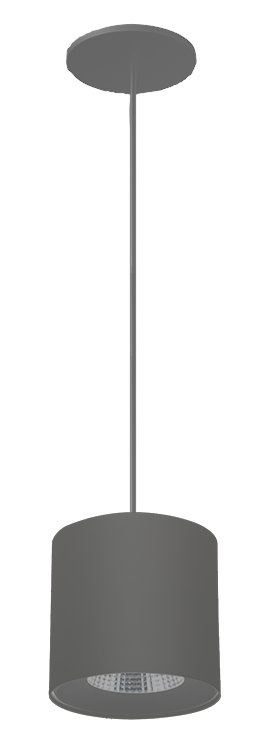

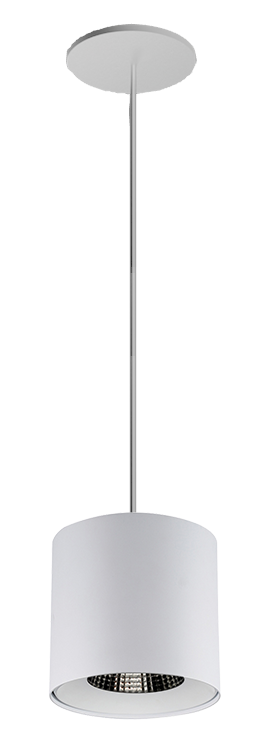

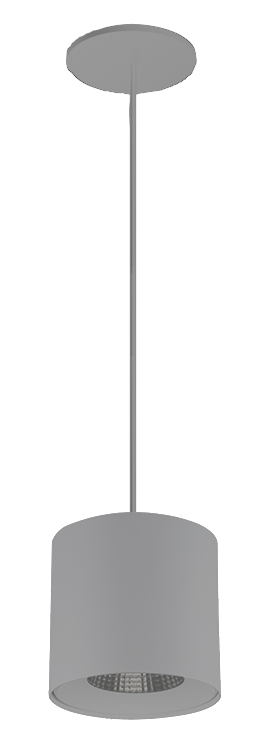

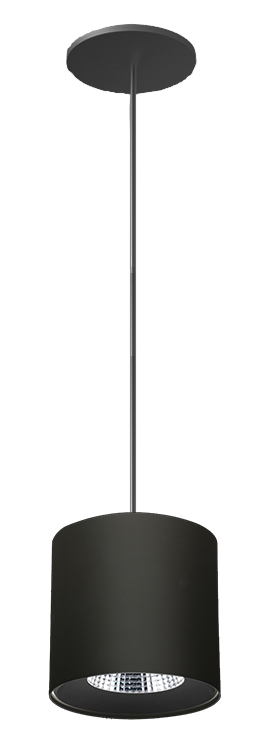

Mounting Suspended -S
Dimming DALI Dimming -DA
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

60° Beam Angle

Performance

Lumen Output Wattage ll/cW
1,446 lm 15.2 W 95.1 ll/cW
1,991 lm 21.1W 94.4 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 2.5 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP44

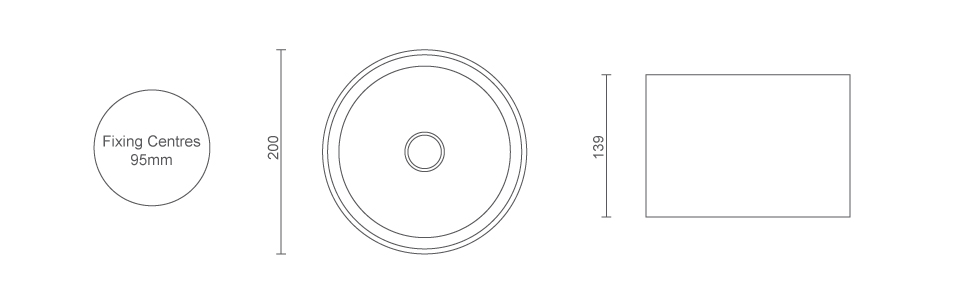

Surface Fixing 95mm
Suspended Fixing 95mm (2m Suspension Max)
Dimensions Ø200 x 139mm
Weight 2.8kg
Warranty 5 Years
Certification CE, ROHS
