Product Overview
[/fusion_title][fusion_text]

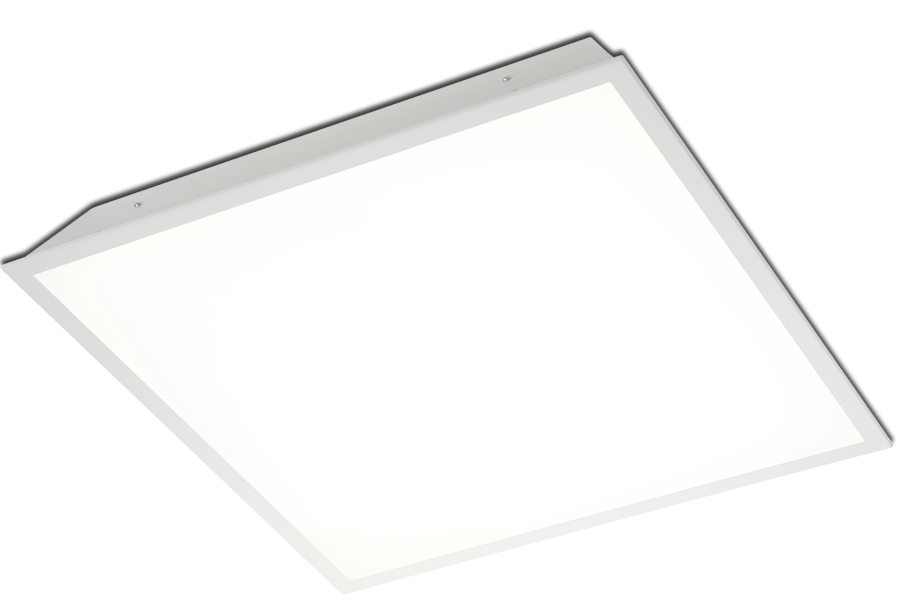

The Hornet is a modular back lit luminaire designed with variable configurations to fit any SAS or Burgess Ceiling.
The Hornet can be supplied with the latest G2 Philips Fortimo with Philips SimpleSet calibration or the latest Tridonic QLE G4 LED system. both systems carry a 5 year warranty with a longevity of at least 50,000 hours.
The luminaire is constructed from white powder coated steel with a brushed aluminium interface tray and nanoptic printed polycarbonate diffuser – the product therefore comes as standard with (TPa) fire rating.
All modular luminares are supplied with a panel mount socket as standard which makes for a higher quality finish and fast installation (no hard fixing). All electronic gear and components are housed with in the product on the interface tray which makes the luminaire easy to handle and gives the product a minimalist appearance.
[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_top=”100px” padding_bottom=”50px”][fusion_builder_row][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”897″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/fire-symbol.png[/fusion_imageframe][fusion_text]
TP(a) Fire Rated
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”899″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/plug-symbol.png[/fusion_imageframe][fusion_text]
‘Plug and Play’
No hard fixing
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”901″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/thumb-symbol.png[/fusion_imageframe][fusion_text]
Easy install
No remote components
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”903″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/block-symbol.png[/fusion_imageframe][fusion_text]
Modular component build
[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_color=”rgba(232,210,2,0)” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_top=”50px” padding_bottom=”100px”][fusion_builder_row][fusion_builder_column type=”1_2″ layout=”1_2″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”1″ content_align=”left” style_type=”none”]
Options
[/fusion_title][fusion_table]
Type | Options | Code |
---|---|---|
Lumen Output* | 3600lm 3700lm 3800lm 3900lm 4000lm 4100lm 4200lm 4300lm 4400lm 4500lm 4600lm 4700lm 4800lm 4900lm 5000lm |
HNT/6/3600 HNT/6/3700 HNT/6/3800 HNT/6/3900 HNT/6/4000 HNT/6/4100 HNT/6/4200 HNT/6/4300 HNT/6/4400 HNT/6/4500 HNT/6/4600 HNT/6/4700 HNT/6/4800 HNT/6/4900 HNT/6/5000 |
LED System | Philips Tridonic |
/P /T |
Colour Temperature | 3000K 4000K 5000K |
/3K /4K /5K |
Ceiling System | **See Table Below** | /– |
[/fusion_table][fusion_text]
*Custom Lumen Outputs available upon request
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_2″ layout=”1_2″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”1″ content_align=”left” style_type=”none”]
Extras
[/fusion_title][fusion_table fusion_table_type=”1″ hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” animation_type=”” animation_direction=”left” animation_speed=”” animation_offset=””]
Type | Options | Code |
---|---|---|
Air Handling | 20 l/s 30 l/s 40 l/s |
-A2 -A3 -A4 |
Tegulation | 4mm Teg 8mm Teg |
-4 -8 |
Dimming | DALI Dimming | -DA |
Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test |
-E1 -E2 -E3 |
[/fusion_table][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_bottom=”50px”][fusion_builder_row][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”106″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2016/11/clock2.png[/fusion_imageframe][fusion_text]
More than 50,000 hours life span
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”111″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2016/11/colour-wheel.png[/fusion_imageframe][fusion_text]
Colour consistency with <3 SDCM
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”97″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2016/11/build-symbol.png[/fusion_imageframe][fusion_text]
High end fabrication with
self-finishing materials
[/fusion_text][/fusion_builder_column][fusion_builder_column type=”1_4″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”102″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2016/11/5.png[/fusion_imageframe][fusion_text]
5 Year Warranty
[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_image=”https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/Hornet-Corner.png” background_position=”center center” background_repeat=”no-repeat” fade=”yes” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” margin_top=”50″ margin_bottom=”50″ padding_top=”100″ padding_bottom=”150″][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” undefined=”” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”0″ animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″ /][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_top=”50px”][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”1″ content_align=”center” style_type=”none”]
Standard & Bespoke Bezel Options
[/fusion_title][fusion_text]
The Hornet has many standard bezel options to allow the luminaire to integrate into any ceiling type including plasterboard. Features also include allowing for a drop tegulation below the ceiling plane to match various ceiling tile products. RAL colour can also be specified to allow the Hornet to seamlessly match ceiling tile aesthetics.
Bespoke bezel options and luminaire sizes are also available upon request.
[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” margin_top=”150″ padding_top=”20px” padding_bottom=”20px”][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ spacing=”” center_content=”yes” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” undefined=”” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”1223″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/NFC.png[/fusion_imageframe][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” margin_bottom=”100″ padding_top=”50px”][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_4″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”1″ content_align=”center” style_type=”none”]

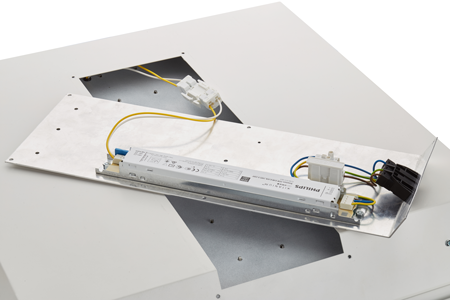

NFC Smart Programming
[/fusion_title][fusion_text]
Using Philips SimpleSet Technology the Hornet can be preset (Fixed Output & DALI) to the required lumen output to reflect what was used for the lighting calculations without the need for the analogue type resistors.
Another benefit to this technology is post luminaire installation. The NFC commissioning tool makes it easy to adjust any luminaire output without having to deconstruct the product. Simply having access to press the tool against the geartray plate will allow re-calibration to the desired settings in seconds.
[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_top=”50px” padding_bottom=”50px”][fusion_builder_row][fusion_builder_column type=”1_2″ layout=”1_2″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” undefined=”” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”50″ margin_bottom=”0″ animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”912″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/Polar-Curve-Hornet.jpg[/fusion_imageframe][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”5″ content_align=”center” style_type=”none”]
120° Beam Angle
[/fusion_title][/fusion_builder_column][fusion_builder_column type=”1_2″ layout=”1_1″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_imageframe image_id=”914″ style_type=”none” hover_type=”none” align=”center” lightbox=”no” linktarget=”_self” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” animation_direction=”left” animation_speed=”0.3″]https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/Hornet-Drawing.jpg[/fusion_imageframe][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_image=”https://www.bumblebee-lighting.co.uk/wp-content/uploads/2017/01/Hornet-Page-Width2.png” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_top=”200″ padding_bottom=”200″][fusion_builder_row][fusion_builder_column type=”1_1″ layout=”1_1″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”center center” undefined=”” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”0″ margin_bottom=”0″ animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no” element_content=””][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_top=”100px” padding_bottom=”100px”][fusion_builder_row][fusion_builder_column type=”1_2″ layout=”1_2″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no” element_content=””][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”1″ content_align=”left” style_type=”none”]
Performance
[/fusion_title][fusion_table]
Typical Lumen Outputs | Wattage | ll/cW |
---|---|---|
3702 lm | 31.2 W | 118.7 ll/cW |
4104 lm | 34.8 W | 117.9 ll/cW |
[/fusion_table][fusion_separator style_type=”none” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” top_margin=”20″ bottom_margin=”20″ alignment=”center” /][fusion_table]
Rated Supply Voltage | 220 – 240 V |
AC Voltage Range | 202 – 250 V |
Mains Frequency | 50/60 Hz |
Output LF current ripple @ 120Hz (Flicker) | <4% |
Overvoltage Protection | 320 V |
THD | <20% |
Dimming Range | 1 – 100% |
Operating Temperature | -25… +60 °C |
Colour Rendering | Ra>82 |
UGR | <19 |

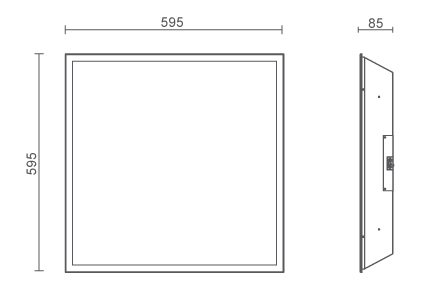

Dimensions (Standard format) | 595 x 595 x 85mm |
Weight | 5.5kg |
Warranty | 5 Years |
Certification | CE, ROHS |
[/fusion_table][/fusion_builder_column][fusion_builder_column type=”1_2″ layout=”1_2″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no” element_content=””][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”1″ content_align=”left” style_type=”none”]
Emergency
[/fusion_title][fusion_table]
Lumen Output | BLF | Emergency Lumen Output |
---|---|---|
3702 lm | 15% | 555 lm |
4104 lm | 13% | 533 lm |
[/fusion_table][fusion_separator style_type=”none” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” top_margin=”20″ bottom_margin=”20″ alignment=”center” /][fusion_table]
Emergency Duration | 3 Hours |
Recharge Period | 24 Hours |
Battery Type | LiFePO4 (Lithium Iron Phosphate) |
Battery Pack | 3 x 2.4V 2.5Ah |
Parasitic Load | 1.2W |
Operating Tempertaure | 0 – 60°C |
Power Efficiency | 95% |
Certification | CE, ROHS |
[/fusion_table][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container][fusion_builder_container hundred_percent=”no” equal_height_columns=”no” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” background_color=”rgba(232,210,2,0)” background_position=”center center” background_repeat=”no-repeat” fade=”no” background_parallax=”none” enable_mobile=”no” parallax_speed=”0.3″ video_aspect_ratio=”16:9″ video_loop=”yes” video_mute=”yes” border_style=”solid” padding_top=”50px” padding_bottom=”100px”][fusion_builder_row][fusion_builder_column type=”1_2″ layout=”1_2″ spacing=”” center_content=”no” hover_type=”none” link=”” min_height=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” class=”” id=”” background_color=”” background_image=”” background_position=”left top” background_repeat=”no-repeat” border_size=”0″ border_color=”” border_style=”solid” border_position=”all” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” margin_top=”” margin_bottom=”” animation_type=”” animation_direction=”left” animation_speed=”0.3″ animation_offset=”” last=”no”][fusion_title hide_on_mobile=”small-visibility,medium-visibility,large-visibility” size=”1″ content_align=”left” style_type=”none”]
Ceiling Systems*
[/fusion_title][fusion_table]
Manufacturer | Ceiling | Size | Code |
---|---|---|---|
SAS120 | System 120 | 300 x 600mm 300 x 1200mm 500 x 500mm 600 x 600mm 600 x 1200mm 750 x 750mm |
CS01 CS02 CS03 CS04 CS05 CS06 |
SAS130 | Alugrid Q 15/19 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS07 CS08 CS09 |
SAS130 | Alugrid Q 15/16 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS10 CS11 CS12 |
SAS130 | Alugrid Q 26/16 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS13 CS14 CS15 |
SAS130 | Alugrid Q 15/08 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS16 CS17 CS18 |
SAS130 | Alugrid 15/16 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS19 CS20 CS21 |
SAS130 | Alugrid S 15/19 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS22 CS23 CS24 |
SAS130 | Alugrid P 15/16 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS25 CS26 CS27 |
SAS130 | Alugrid P 15/08 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS28 CS29 CS30 |
SAS130 | Trugrid T24 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS31 CS32 CS33 |
SAS130 | Trugrid T15 | 500 x 500mm 600 x 600mm 750 x 750mm |
CS34 CS35 CS36 |
SAS150 | System 150 | 300 x 600mm 300 x 1200mm 500 x 500mm 600 x 600mm 600 x 1200mm 750 x 750mm |
CS37 CS38 CS39 CS40 CS41 CS42 |
SAS330 | System 330 | Available Upon Request | CS– |
[/fusion_table][fusion_text]
*Other ceiling systems available upon request
