Product Overview

The Mantis is a Ø105mm downlight with the added advantage of being used in appplications usually suited to a large area downlight. The Mantis can achieve a lumen package of upto 1500lm due to its large bodied heatsink. This downlight also uses the CREE XPE LED engine to ensure quality and longevity of the downlight.

The Mantis uses a die-cast aluminium heatsink which houses the LED module. The bezel of the downlight is machined from aluminium ensuring a constant high quality finish with no surface blemishes.

The Mantis is available in 1180, 1430 & 1860 lumen outputs.

More than 50,000 hours life span

Colour consistency with <3 SDCM

Assured build quality with
die-cast based construction

5 Year Warranty

Options

Type Options Code
Lumen Output 1180lm
1430lm
1860lm
MAN/1180
MAN/1430
MAN/1860
Colour Temperature 3000K
4000K
5000K
/3K
/4K
/5K
Beam Angle 15° Beam
24° Beam
30° Beam
36° Beam
60° Beam
/15
/24
/30
/36
/60

Extras

Type Options Code
Dimming DALI Dimming -DA
Emergency 3 Hour Facility
3 Hour Self Test
3 Hour Central Test
-E1
-E2
-E3

Performance & Reliability

Supplied with high performance CREE LED engine and premium Tridonic driver to ensure an outstanding performance with longevity

15° Beam Angle
24° Beam Angle
30° Beam Angle
36° Beam Angle

Performance

Lumen Output Wattage ll/cW
1180 lm 12.1 W 97.5 ll/cW
1434 lm 14.9 W 96.2 ll/cW
1861 lm 19.5 W 95.4 ll/cW
Rated Supply Voltage 220 – 240 V
AC Voltage Range 198 – 264 V
Mains Frequency 50/60 Hz
Output LF current ripple @ 120Hz (Flicker) <5%
Overvoltage Protection 320 V
In-rush Current 14 A
THD <10%
Dimming Range 15 – 100%
Operating Temperature -25… +60 °C
Colour Rendering Ra>82
IP Rating IP54

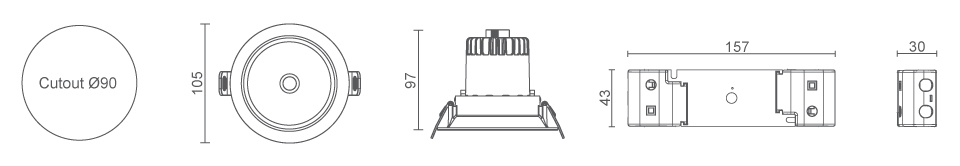

Cutout Ø90mm
Dimensions Ø105 x 97mm
Weight 1.7kg
Warranty 5 Years
Certification CE, ROHS

Emergency

Standard Lumen Output BLF Emergency Lumen Output
1180 lm 18% 212 lm
1434 lm 17% 244 lm
1861 lm 13% 242 lm
Emergency Duration 3 Hours
Recharge Period 24 Hours
Battery Type LiFePO4 (Lithium Iron Phosphate)
Battery Pack 3 x 3.2V 1.5Ah
Parasitic Load 1.2W
Operating Tempertaure 0 – 60°C
Power Efficiency 95%
Certification CE, ROHS
