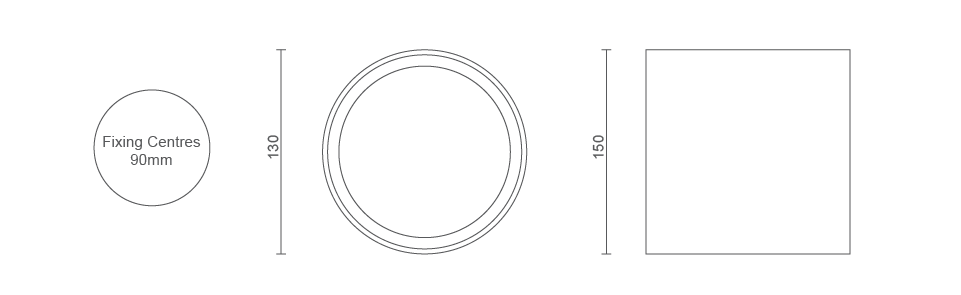

The Brevis F Mini (frosted diffuser) is a Ø130mm downlight which can be surface (Standard) or suspended mounted.
The heatsink is built into the body of the product which enables the downlight to run at cool temperatures without the common need for vents in the vertical walls. The Brevis F Mini therefore has a minimalist architectural appearance without any visible fixings and very light weight thanks to its aluminium construction.
The downlight also has an IP44 rating when surface mounted.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 1569lm 2092lm | BRE/F/M/1569 BRE/F/M/2092 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi |
-DA -SD -MD -CA |
| Mounting | Suspended – Flex only Suspended – Ø120mm rose (Standard) Suspended – Ø185mm rose (Emergency) |
-S -S1 -S3 |
| Emergency |
3 Hour Facility* *Requires ‘-S3’ rose |
-E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 1569 lm | 15.2 W | 103.2 ll/cW |
| 2092 lm | 20.2 W | 103.6 ll/cW |
| Light Source | COB |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 90 |
| UGR | <19 |
| IP Rating | IP44 (Surface mounted) |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) |
RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Surface Suspended |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 12 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 1.0 W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | EOF | Emergency Lumen Output |
|---|---|---|
| 1569 lm | 18% | 289 lm |
| 2092 lm | 14% | 289 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
