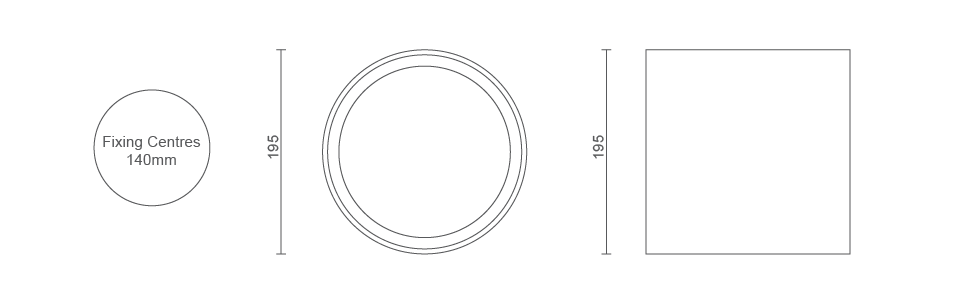

The Brevis F (frosted diffuser) is a Ø200mm large area downlight which can be surface (Standard) or suspended mounted.
The heatsink is built into the body of the product which enables the downlight to run at cool temperatures without the common need for vents in the vertical walls. The Brevis F therefore has a minimalist architectural appearance without any visible fixings and very light weight thanks to its aluminium construction.
The downlight also has an IP44 rating when surface mounted.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 1987lm 2649lm | BRE/F/1987 BRE/F/2649 |
| Colour Temperature | 3000K 4000K 6500K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Mounting | Suspended | -S |
| Dimming | DALI Dimming Switch dim/Touch dim Mains dimming Casambi | -DA -SD -MD -CA |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 1987 lm | 14.7 W | 135.2 ll/cW |
| 2649 lm | 19.6 W | 135.2 ll/cW |
| Light Source | CREE |
| SDCM | 3 |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering | 90 |
| UGR | <19 |
| IP Rating | IP44 (Surface) |
| Construction | Diecast Aluminium |
| RAL Colour (Other colours available upon special request) | RAL9016 (Standard) RAL9010 RAL9005 |
| Mounting Method | Surface Suspended |
| Protective Class | Class 1 |
| Impact Resistance (IK) | IK04 |
| Warranty | 5 Years |
| Certification | UKCA, CE, ROHS |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <1% |
| Overvoltage Protection | 320 V |
| In-rush Current | 12 A |
| THD | <10% |
| Power Factor | 0.95 |
| Parasitic Load | 1.0W |
| Operating Temperature | -25 +60°C |
| Standard Lumen Output | EOF | Emergency Lumen Output |
|---|---|---|
| 1872 lm | 19% | 347 lm |
| 2496 lm | 14% | 347 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Battery Pack | 3 x 3.2V 1.5Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
Datasheet
Installation Guide
TM65

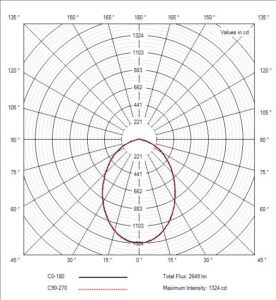

Photometrics
