The Cygnet is a Ø420mm interior circular wall light with a depth of 117mm, The body is constructed from spun sheet steel and uses a polycarbonate opal diffuser. The bezel of the product also has a fixingless appearance due to the sub-assembly construction and flexible diffuser.
The Cygnet is targeted at large stairwells where wiring points are limited and therefore require a higher lumen output. Likewise the emergency output is higher than a normal luminaire of this type due to the 5W inverter and battery combination.
More than 60,000 hours life span
Colour consistency with <3 SDCM
Assured build quality with die-cast based construction
5 Year Warranty
| Type | Options | Code |
|---|---|---|
| Lumen Output | 1200lm 1600lm 2000lm 2400lm 2800lm | CYG/1200 CYG/1600 CYG/2000 CYG/2400 CYG/2800 |
| Colour Temperature | 3000K 4000K 6000K | /3K /4K /6K |
| Type | Options | Code |
|---|---|---|
| Dimming | DALI Dimming | -DA |
| Sensor | Microwave Sensor | -S1 |
| Emergency | 3 Hour Facility 3 Hour Self Test 3 Hour Central Test | -E1 -E2 -E3 |
Supplied with high performance LED engine and premium driver to ensure an outstanding performance with longevity.
120° Beam Angle
| Lumen Output | Wattage | ll/cW |
|---|---|---|
| 1,202 lm | 11.5 W | 104.5 ll/cW |
| 1,601 lm | 15.6 W | 102.4 ll/cW |
| 2,005 lm | 19.7 W | 101.9 ll/cW |
| 2,402 lm | 23.2 W | 103.5 ll/cW |
| 2,805 lm | 27.7 W | 101.3 ll/cW |
| Rated Supply Voltage | 220 – 240 V |
| AC Voltage Range | 198 – 264 V |
| Mains Frequency | 50/60 Hz |
| Output LF current ripple @ 120Hz (Flicker) | <5% |
| Overvoltage Protection | 320 V |
| In-rush Current | 5 A |
| THD | <10% |
| Dimming Range | 1 – 100% |
| Operating Temperature | -25… +60 °C |
| Longevity (L70/B10) | 60,000 hours |
| Colour Rendering (3 SDCM) | Ra>82 |

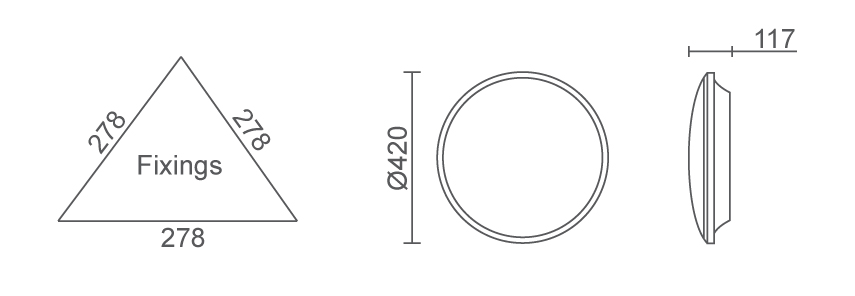

| Fixing Centres (see diagram) | 278 x 278 x 278mm |
| Dimensions | Ø420 x 117mm |
| Weight | 3.5kg |
| Warranty | 5 Years |
| Certification | CE, ROHS |
| Standard Lumen Output | EOF | Emergency Lumen Output |
|---|---|---|
| 1,202 lm |
38% |
457 lm |
| 1,601 lm |
28% |
448 lm |
| 2,005 lm |
22% |
441 lm |
| 2,402 lm |
19% |
456 lm |
| 2,805 lm | 16% | 449 lm |
| Emergency Duration | 3 Hours |
| Recharge Period | 24 Hours |
| Battery Type | NiCd (Nickel Cadmium) |
| Battery Pack | 1 x 3.6V 4.2Ah |
| Parasitic Load | 1.2W |
| Operating Tempertaure | 0 – 60°C |
| Power Efficiency | 95% |
| Certification | CE, ROHS |
